PENCOM Carbon Steel Male Ball Stud 3.36-4.04mm
PENCOM Carbon Steel Male Ball Stud 3.36-4.04mm
SKU:PEN-0f8b55
Secure cabinet doors with ease using PENCOM's durable and adjustable Male Ball Stud. RoHS compliant carbon steel construction ensures reliability and longevity.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
PENCOM Carbon Steel Male Ball Stud 3.36-4.04mm
$29.99
Quantity: 1
Claim Your Seller Account
PENCOM Carbon Steel Male Ball Stud 3.36-4.04mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

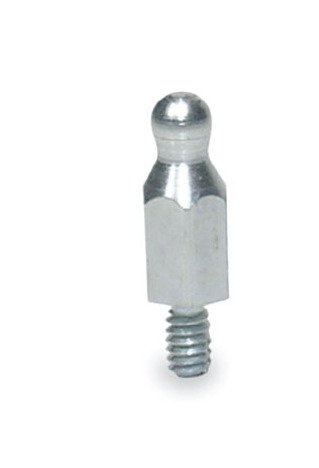

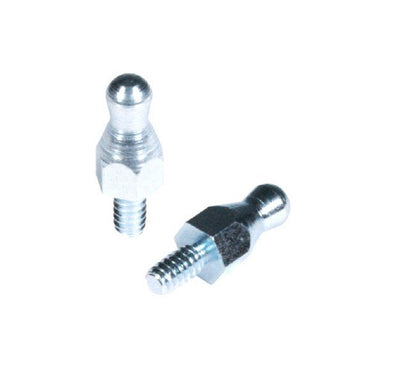

The PENCOM BS10M Male Ball Stud offers a reliable solution for securing cabinet doors, inspection panels, and more. With adjustable ball stud lengths and pull-out tension, this fastener accommodates various panel thicknesses. Made from RoHS-compliant carbon steel with a zinc finish, it ensures durability and protection against corrosion. Simplify panel assembly and disassembly while maintaining panel integrity with this versatile and efficient ball stud.
Product Specifications
Additional Information Additional Information
PENCOM carries a wide assortment of standard and self-clinching nut and washer assemblies and components. Contact a PENCOM Account Manager for recommendations and more information.PENCOM carries a wide assortment of standard and self-clinching nut.A variety of thread locking and lubricating materials can be applied to the threads. Nylon, micro-encapsulated epoxy and other locking elements prevent loosening due to vibration. Lubricating coatings reduce friction, heat buildup and galling during installation of mating fasteners. To specify a nylon locking element, insert PATCH at the end of the part description. Other locking and lubricating materials available by request.
Application Guide Application Guide
Rivet the ball stud clip onto the panel with either plain or 100° countersunk head rivets, or with screws, nuts and washersInstall the ball stud onto the mating panel according to the appropriate installation methodSnap panels together
Dimensions Length Code
1334
Dimensions L 25
13.34 mm
Dimensions Sheet 1 Thickness
3.36 to 4.04 mm
Dimensions S 13
10.97 mm
Dimensions T 25 00
15.00 mm
Material And Finish Ball Stud Material Code
STL
Material And Finish Finish
Zinc (SC1) with Type III Clear Chromate per ASTM B 633
Material And Finish Material
Carbon Steel
Selection Guide Selection Guide
Choose a ball stud clip based on the mounting hole diameter, pull-out tension, material, and finish. All clips fit all ball studs. Pull-out tension varies according to the clip material thickness.Select a ball stud type from the installation styles. Choose a ball stud based on length, material and finish. Vary ball stud length to accommodate Sheet 1 thickness.
Specifications Industry Standardscertifications
Restriction of Hazardous Substances (RoHS)
Specifications Series
BS10M
Specifications Thread Type
Male
Thread Length Thread Length Code
1500
Thread Length Thread Size
M3.5 x .6 6g
