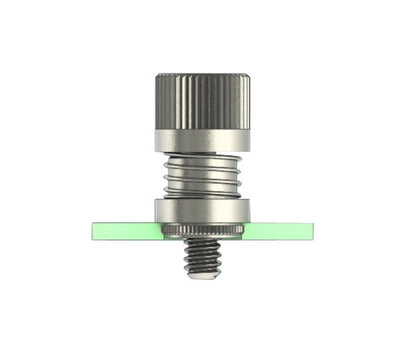

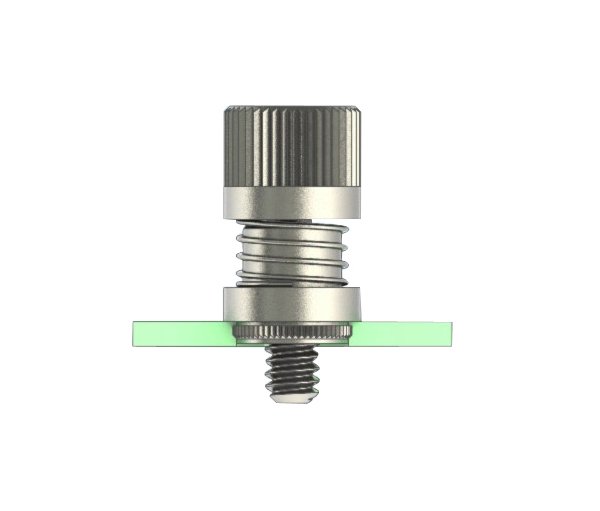

PENCOM CNB 6-32 Knurled Cap Broaching Fastener Assembly
PENCOM CNB 6-32 Knurled Cap Broaching Fastener Assembly
SKU:PEN-f9e15a
Upgrade your installations with PENCOM's CNB 6-32 Knurled Cap Broaching Fastener Assembly for reliable, durable performance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
PENCOM CNB 6-32 Knurled Cap Broaching Fastener Assembly
$24.99
Quantity: 1
Claim Your Seller Account
PENCOM CNB 6-32 Knurled Cap Broaching Fastener Assembly
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your installations with PENCOM's CNB 6-32 Knurled Cap Broaching Fastener Assembly. Crafted from 300-Series Stainless Steel, this assembly offers a sleek black nitride finish and RoHS-compliant materials. With exceptional push-out strength and a slim design for limited space applications, it ensures reliability and durability. Whether for PCBs or soft materials, PENCOM's fastener assembly is the top choice for easy installation and superior performance.
Product Specifications
Additional Information Additional Information
A variety of thread locking and lubricating materials can be applied to the threads. Nylon (shown), microencapsulated epoxy and other locking elements prevent loosening due to vibration. Lubricating coatings reduce friction, heat buildup and galling during installation of mating fasteners. To specify a nylon locking element, insert PATCH at the end of the part description. Other locking and lubricating materials available by request.

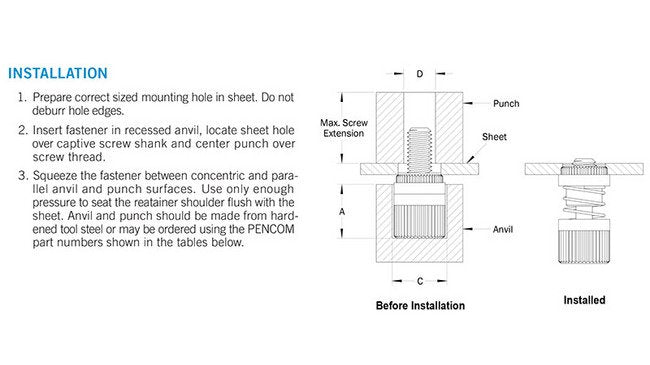

Anvil And Punch Dimensions Anvil And Punch Dimensions
Anvil Part Number - TL1315A ±.002 - .345 Inch (in)C ±.002 - .390 Inch (in)Punch Part Number - TL1304D ±.002 - .214 Inch (in)

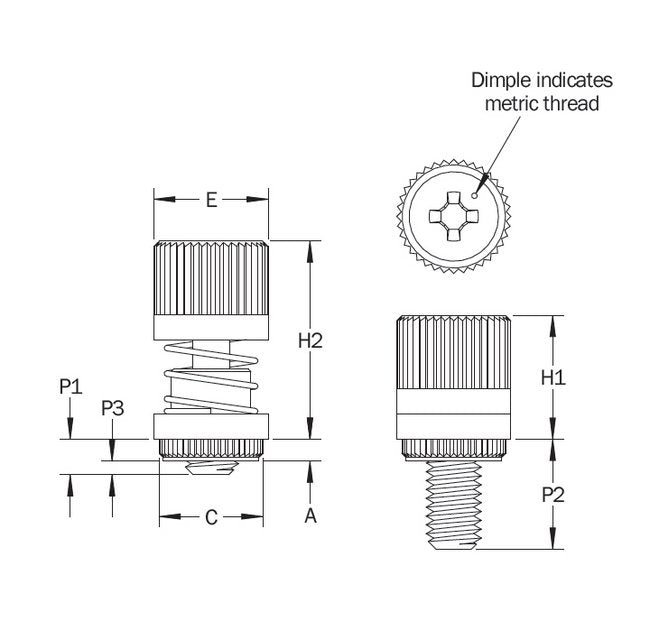

Dimensions A Shank Length Max
.060 in
Dimensions C 003
.299 in
Dimensions E 010
.344 in
Dimensions H1 Max
.380 in
Dimensions H2
.540 in
Dimensions P1
.060 in
Dimensions P2 016
.250 in
Drive Size Drive
Slot
Drive Size Drive Code
SL
Drive Size Drive Size
T-15
Features Features
Narrow design for limited space applications.New contemporary appearance.Wide variety of drive and installation types, screw threads and lengths.Choice of RoHS-compliant materials and finishes.
Material And Finish Finish
Black Nitride (Retainer) | Black Nitride (Screw) | Passivated and/or Tested per ASTM A 967 (Spring)
Material And Finish Finish Code
BLK-NIT
Material And Finish For Use In Maximum Sheet Hardness
70 Rockwell B
Material And Finish For Use In Printed Circuit Board Pcb Sheet H
Yes
Material And Finish Material
300-Series Stainless Steel (Retainer) | 300-Series Stainless Steel (Spring) | 400-Series Heat Treated Stainless Steel (Screw)
Material And Finish Material Code
SS
Performance Installation
400 lb
Performance Note For Performance
Performance data represents the average destructive result when all installation specifications are strictly followed. Variations in panel hole size, thickness, material, and installation methods will affect the loads. PENCOM strongly encourages testing in the application.
Performance Push Out
60 lb
Performance Test Sheet Material
FR-4 Fiberglass
Performance Test Sheet Size
.060 in
Sheet Minimum Distance From Sheet Hole Center To Edge
.26 in
Sheet Min Sheet Thickness
.060 in
Sheet Sheet Hole Size 003 000
.281 in
Specifications Cap
Smooth
Specifications Fastener Type
Panel
Specifications Installation Sheet Material
Aluminum | Carbon Steel
Specifications Screw Length Code
.060 in
Specifications Style
Broaching
Specifications Thread Code
632
Specifications Thread Size
6-32
