PENCOM CNC 6-32 Flare-In Narrow Panel Fastener
PENCOM CNC 6-32 Flare-In Narrow Panel Fastener
SKU:PEN-d60f31
Enhance your assembly efficiency with the PENCOM CNC 6-32 Flare-In Fastener, offering superior push-out resistance and RoHS compliance.
Regular price
$19.99
Regular price
Sale price
$19.99
Unit price
per
Initiate Order
PENCOM CNC 6-32 Flare-In Narrow Panel Fastener
$19.99
Quantity: 1
Claim Your Seller Account
PENCOM CNC 6-32 Flare-In Narrow Panel Fastener
$19.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

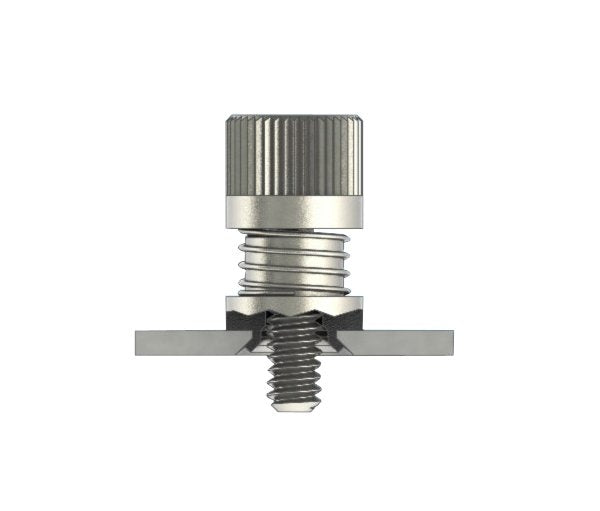

The PENCOM CNC 6-32 Flare-In Narrow Panel Fastener Assembly is engineered for easy installation with low force requirements, ideal for painted sheets and close-to-edge applications. Featuring superior push-out resistance for PCBs, this assembly boasts a sleek design, diverse drive types, and RoHS-compliant materials and finishes for exceptional performance.
Product Specifications

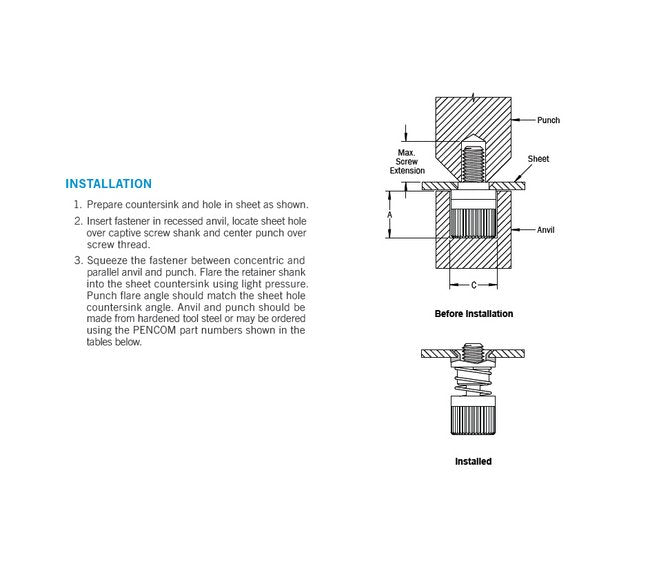

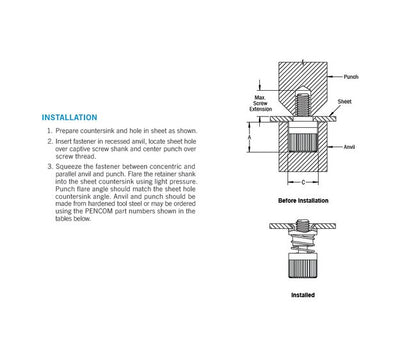

Anvil And Punch Dimensions Anvil And Punch Dimensions
Anvil Part Number - TL1315A ±.002 - .345 Inch (in)C ±.002 - .390 Inch (in)Punch Part Number - TL1568D +.003/-.000 - .143 Inch (in)

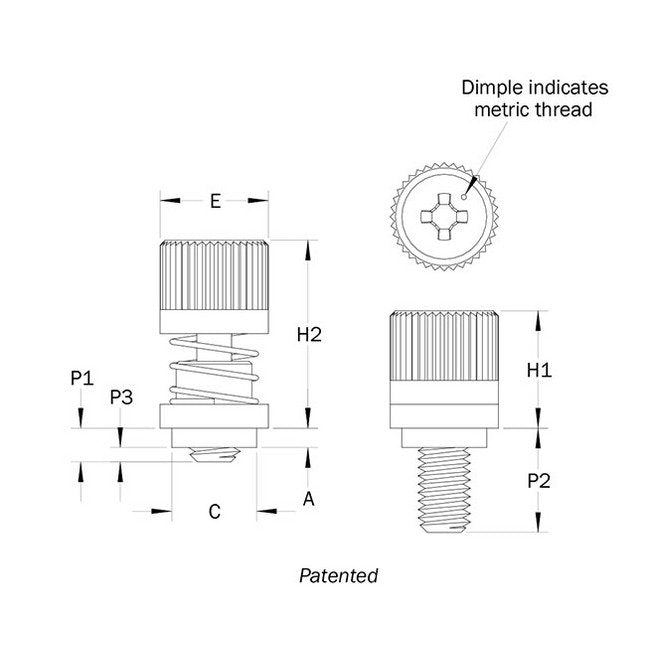

Dimensions A Shank Length Max
.072 in
Dimensions C Max
.212 in
Dimensions E 010
.344 in
Dimensions H1 Max
.380 in
Dimensions H2
.540 in
Dimensions P1
.185 in
Dimensions P2 016
.375 in
Dimensions P3 025
.113 in
Drive Size Drive
Cross-Recess
Drive Size Drive Code
PH
Drive Size Drive Size
#2
Features Features
Narrow design for limited space applications.New contemporary appearance.Wide variety of drive and installation types, screw threads and lengths.Choice of RoHS-compliant materials and finishes.
Material And Finish Finish
Passivated and/or Tested per ASTM A 967 (Retainer) | Passivated and/or Tested per ASTM A 967 (Screw) | Passivated and/or Tested per ASTM A 967 (Spring)
Material And Finish Finish Code
P
Material And Finish For Use In Printed Circuit Board Pcb Sheet H
Yes
Material And Finish Material
300-Series Stainless Steel (Retainer) | 300-Series Stainless Steel (Spring) | 400-Series Heat Treated Stainless Steel (Screw)
Material And Finish Material Code
SS
Sheet Min Sheet Thickness
.060 in
Sheet Sheet Hole Size 005 000
.213 in
Specifications Fastener Type
Panel
Specifications Installation Sheet Material
Stainless Steel
Specifications Screw Length Code
.185 in
Specifications Style
Flare-In
Specifications Thread Code
632
Specifications Thread Size
6-32
