PENCOM CNC 6-32 Thread Flare-In Narrow Panel Fastener Assembly - Stainless Steel
PENCOM CNC 6-32 Thread Flare-In Narrow Panel Fastener Assembly - Stainless Steel
SKU:PEN-b29fa9
Get secure, easy-to-install panel fastening with PENCOM CNC 6-32 Flare-In Fastener Assembly in stainless steel.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
PENCOM CNC 6-32 Thread Flare-In Narrow Panel Fastener Assembly - Stainless Steel
$14.99
Quantity: 1
Claim Your Seller Account
PENCOM CNC 6-32 Thread Flare-In Narrow Panel Fastener Assembly - Stainless Steel
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

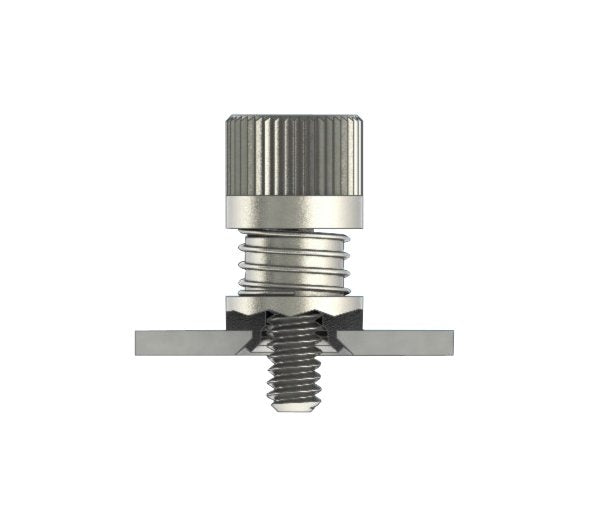

The PENCOM CNC 6-32 Thread Flare-In Narrow Panel Fastener Assembly is designed for low installation forces, ideal for painted sheets, close-to-edge applications, and providing push-out resistance in PCBs. Constructed from high-grade stainless steel and featuring a narrow design for limited space applications, it offers a contemporary appearance, various drive types, screw threads, and RoHS-compliant materials and finishes.
Product Specifications

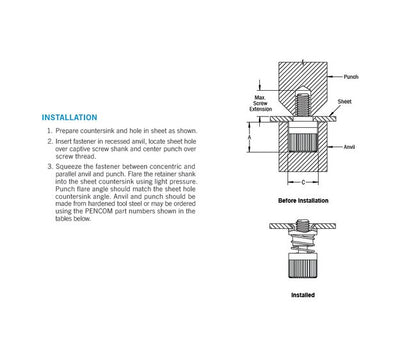

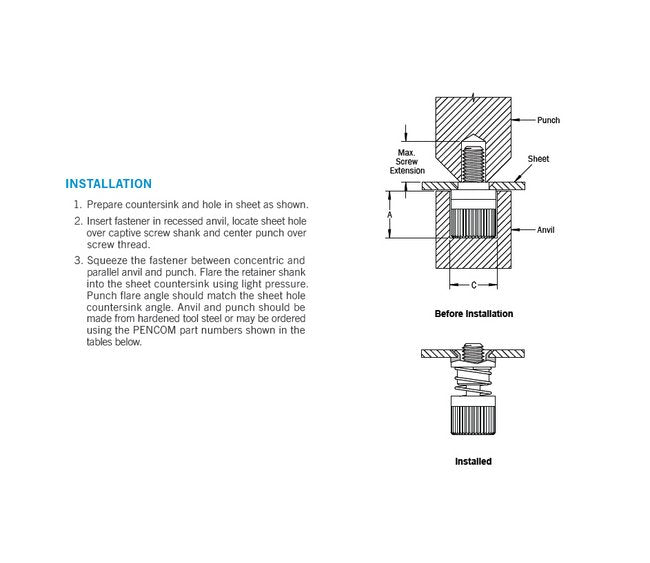

Anvil And Punch Dimensions Anvil And Punch Dimensions
Anvil Part Number - TL1315A ±.002 - .345 Inch (in)C ±.002 - .390 Inch (in)Punch Part Number - TL1568D +.003/-.000 - .143 Inch (in)

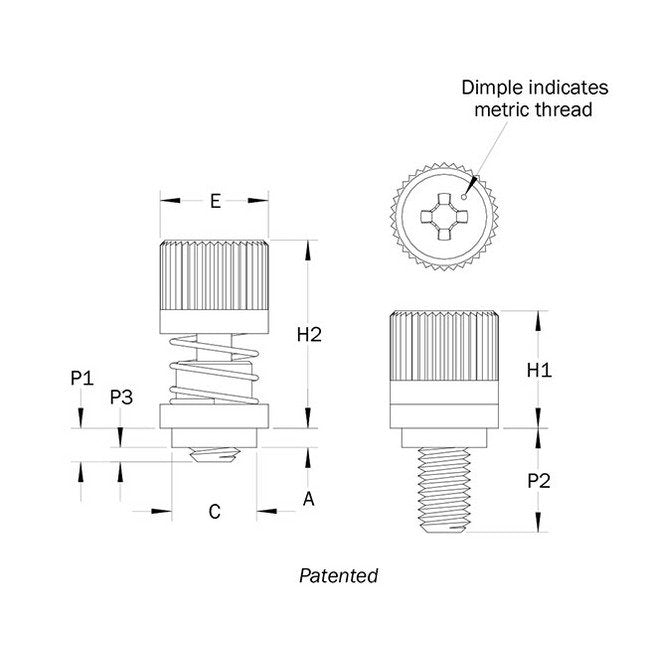

Dimensions A Shank Length Max
.072 in
Dimensions C Max
.212 in
Dimensions E 010
.344 in
Dimensions H1 Max
.380 in
Dimensions H2
.540 in
Dimensions P1
.060 in
Dimensions P2 016
.250 in
Drive Size Drive
Cross-Recess
Drive Size Drive Code
PH
Drive Size Drive Size
#2
Features Features
Narrow design for limited space applications.New contemporary appearance.Wide variety of drive and installation types, screw threads and lengths.Choice of RoHS-compliant materials and finishes.
Material And Finish Finish
Passivated and/or Tested per ASTM A 967 (Retainer) | Passivated and/or Tested per ASTM A 967 (Screw) | Passivated and/or Tested per ASTM A 967 (Spring)
Material And Finish Finish Code
P
Material And Finish For Use In Printed Circuit Board Pcb Sheet H
Yes
Material And Finish Material
300-Series Stainless Steel (Retainer) | 300-Series Stainless Steel (Spring) | 400-Series Heat Treated Stainless Steel (Screw)
Material And Finish Material Code
SS
Sheet Min Sheet Thickness
.060 in
Sheet Sheet Hole Size 005 000
.213 in
Specifications Fastener Type
Panel
Specifications Installation Sheet Material
Stainless Steel
Specifications Screw Length Code
.060 in
Specifications Style
Flare-In
Specifications Thread Code
632
Specifications Thread Size
6-32
