PENCOM CNC 8-32 Flare-In Narrow Panel Fastener
PENCOM CNC 8-32 Flare-In Narrow Panel Fastener
SKU:PEN-46bedc
High-quality PENCOM CNC 8-32 Flare-In Fastener Assembly with stainless steel construction and RoHS-compliant finishes.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
PENCOM CNC 8-32 Flare-In Narrow Panel Fastener
$29.99
Quantity: 1
Claim Your Seller Account
PENCOM CNC 8-32 Flare-In Narrow Panel Fastener
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

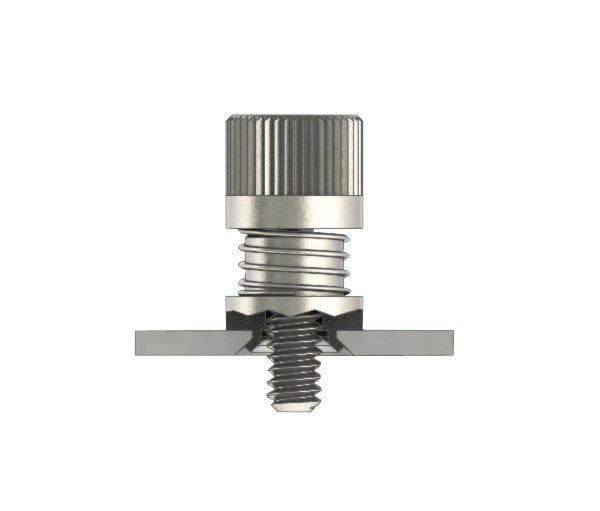

The PENCOM CNC 8-32 Flare-In Narrow Panel Fastener Assembly excels in low installation force applications, perfect for painted sheets and close-to-edge uses. Designed for optimal push-out resistance in p.c. boards, featuring stainless steel construction and RoHS-compliant materials and finishes.
Product Specifications

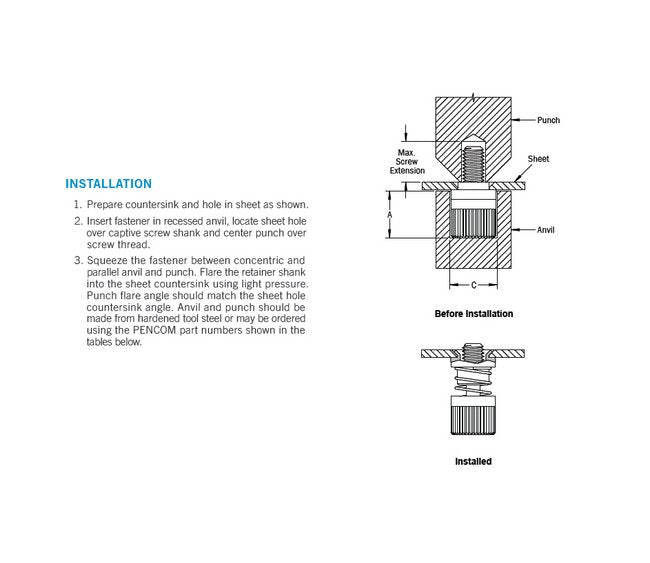

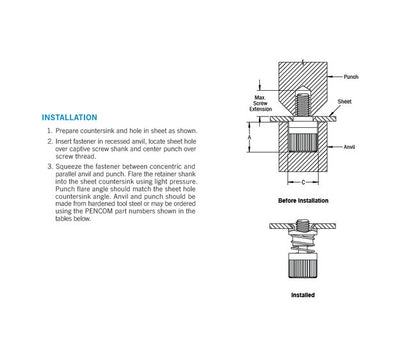

Anvil And Punch Dimensions Anvil And Punch Dimensions
Anvil Part Number - TL1316A ±.002 - .435 Inch (in)C ±.002 - .421 Inch (in)Punch Part Number - TL1569D +.003/-.000 - .169 Inch (in)

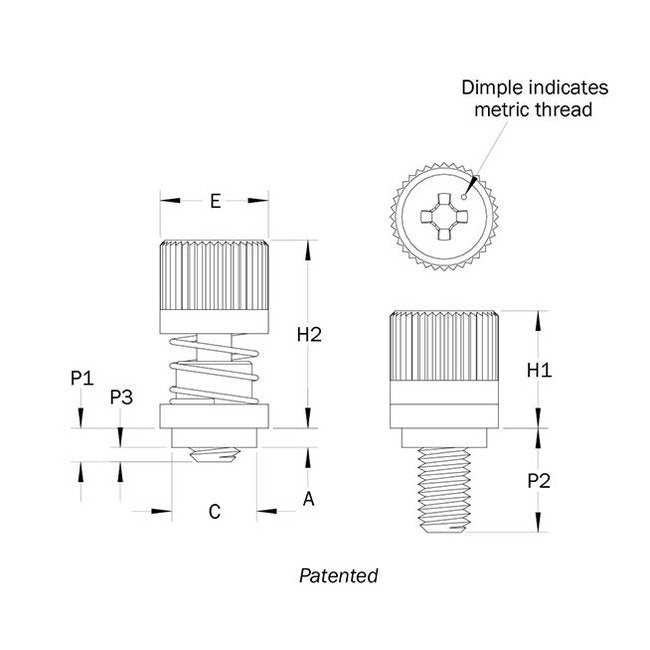

Dimensions A Shank Length Max
.072 in
Dimensions C Max
.265 in
Dimensions E 010
.375 in
Dimensions H1 Max
.480 in
Dimensions H2
.705 in
Dimensions P1
.060 in
Dimensions P2 016
.312 in
Drive Size Drive
Cross-Recess
Drive Size Drive Code
PH
Drive Size Drive Size
#2
Features Features
Narrow design for limited space applications.New contemporary appearance.Wide variety of drive and installation types, screw threads and lengths.Choice of RoHS-compliant materials and finishes.
Material And Finish Finish
Passivated and/or Tested per ASTM A 967 (Retainer) | Passivated and/or Tested per ASTM A 967 (Screw) | Passivated and/or Tested per ASTM A 967 (Spring)
Material And Finish Finish Code
P
Material And Finish For Use In Printed Circuit Board Pcb Sheet H
Yes
Material And Finish Material
300-Series Stainless Steel (Retainer) | 300-Series Stainless Steel (Spring) | 400-Series Heat Treated Stainless Steel (Screw)
Material And Finish Material Code
SS
Sheet Min Sheet Thickness
.060 in
Sheet Sheet Hole Size 005 000
.266 in
Specifications Fastener Type
Panel
Specifications Installation Sheet Material
Stainless Steel
Specifications Screw Length Code
.060 in
Specifications Style
Flare-In
Specifications Thread Code
832
Specifications Thread Size
8-32
