PENCOM Self-Clinching Ball Stud .079-.105 Inch Thickness
PENCOM Self-Clinching Ball Stud .079-.105 Inch Thickness
SKU:PEN-3b5212
Enhance your fixings with PENCOM Self-Clinching Ball Studs - superior reliability for cabinet doors and panels.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
PENCOM Self-Clinching Ball Stud .079-.105 Inch Thickness
$24.99
Quantity: 1
Claim Your Seller Account
PENCOM Self-Clinching Ball Stud .079-.105 Inch Thickness
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

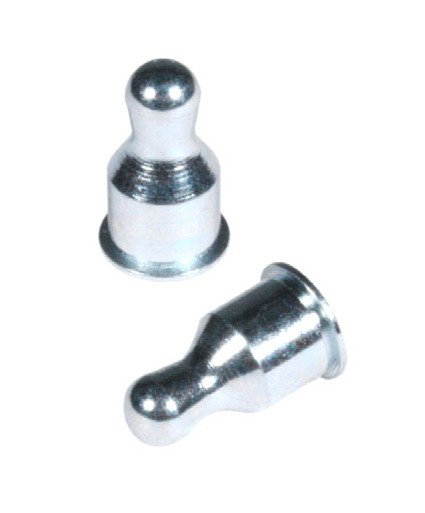

The PENCOM BS12 Self-Clinching Ball Stud offers a reliable spring catch fastener solution for cabinet doors and inspection panels. Designed to prevent damaged panel finishes, it accommodates various panel thicknesses with different ball stud lengths. Harnessing RoHS-compliant plated carbon steel or stainless steel, this heat-treated carbon steel stud ensures durability and longevity, meeting high performance standards across multiple materials.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information

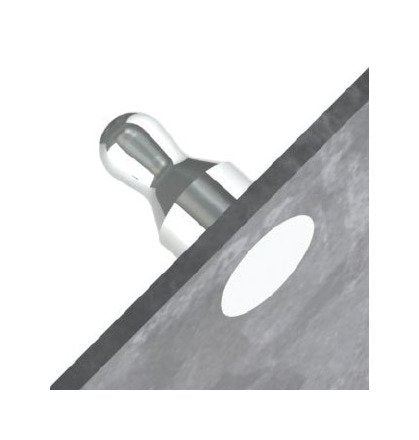

BS12 Self-clinching Ball Studs provide a permanent and reliable installation that creates a flush appearance on the back side of aluminum, carbon steel and stainless steel sheets.

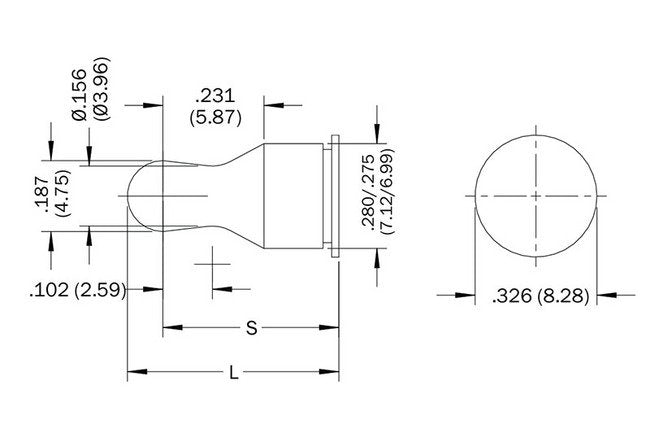

Dimensions L 010
.528 in
Dimensions L 25
13.41 mm
Dimensions Sheet 1 Thickness
.079 to .105 in | 1.99 to 2.67 mm

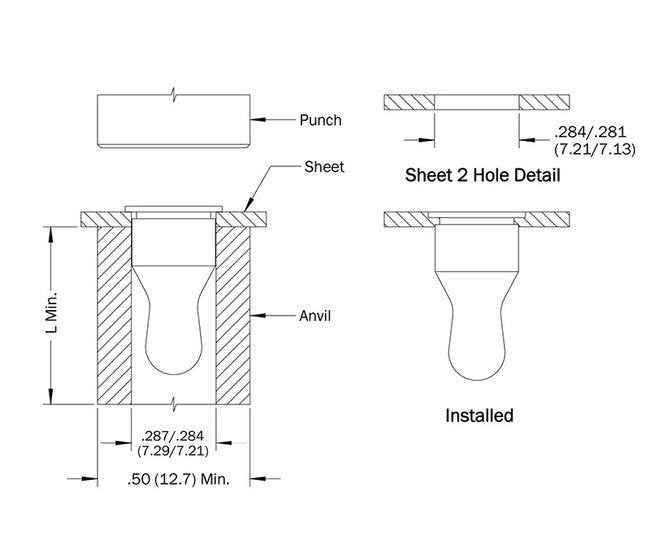

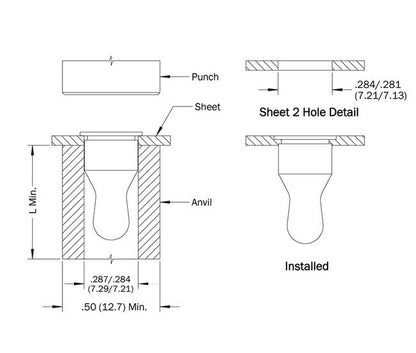

Dimensions Sheet 2 Thickness
.050 to .059 in | 1.27 to 1.50 mm
Dimensions S 005
.435 in
Dimensions S 13
11.05 mm
Material And Finish Ball Stud Material Code
STL
Material And Finish Finish
Zinc (SC1) with Type III Clear Chromate per ASTM B 633
Material And Finish For Use In Maximum Sheet Hardness
80 Rockwell B
Material And Finish Material
Heat Treated Carbon Steel
Note Note For Performance
Performance data represents the average destructive result when all installation specifications are strictly followed. Variations in sheet hole size, thickness, material, and installation methods will affect the loads. PENCOM strongly encourages testing in the application.
Performance 1008 Carbon Steel Hrb 60 Test Sheet Material Install
3600 to 4400 lb | 16.0 to 19.6 kN
Performance 1008 Carbon Steel Hrb 60 Test Sheet Material Push Ou
360 lb | 1601 N
Performance 304 Stainless Steel Hrb 70 Test Sheet Material Insta
2 kN
Performance 304 Stainless Steel Hrb 70 Test Sheet Material Push
2 N
Performance 5052 H32 Aluminum Test Sheet Material Installation
1700 to 2000 lb | 7.6 to 8.9 kN
Performance 5052 H32 Aluminum Test Sheet Material Push Out
230 lb | 1023 N
Performance Test Sheet Material
1008 Carbon Steel HRB 60 | 304 Stainless Steel HRB 70 | 5052-H32 Aluminum
Specifications Industry Standardscertifications
Restriction of Hazardous Substances (RoHS)
Specifications Length Code
528
