PENCOM Self-Clinching Ball Stud for Varying Panel Thickness
PENCOM Self-Clinching Ball Stud for Varying Panel Thickness
SKU:PEN-2ef785
Reliable PENCOM Self-Clinching Ball Stud for secure fastening on varying panel thicknesses.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
PENCOM Self-Clinching Ball Stud for Varying Panel Thickness
$29.99
Quantity: 1
Claim Your Seller Account
PENCOM Self-Clinching Ball Stud for Varying Panel Thickness
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

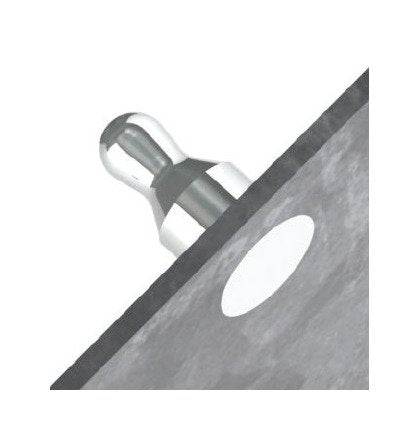

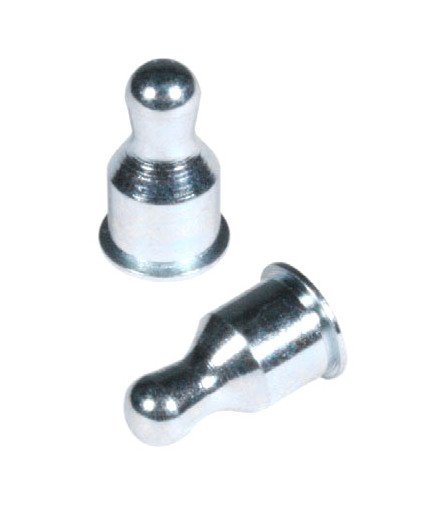

The PENCOM .133 to .159 Inch Self-Clinching Ball Stud offers a secure fastening solution for cabinet doors, inspection panels, and more. With heat-treated carbon steel construction and RoHS-compliant finish options, this ball stud ensures durability and compatibility with different panel thicknesses. The innovative design eliminates direct panel contact, preventing damage to panel finishes, while allowing adjustable ball stud pull-out tension. Tested for reliability on various sheet materials, this self-clinching ball stud is engineered to meet stringent performance requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
BS12 Self-clinching Ball Studs provide a permanent and reliable installation that creates a flush appearance on the back side of aluminum, carbon steel and stainless steel sheets.

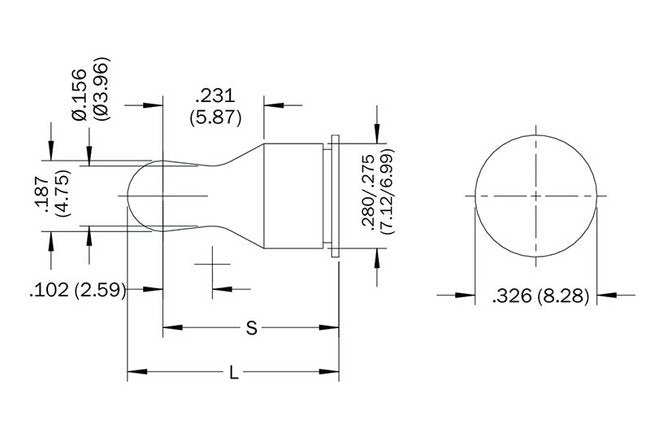

Dimensions L 010
.570 in
Dimensions L 25
14.48 mm

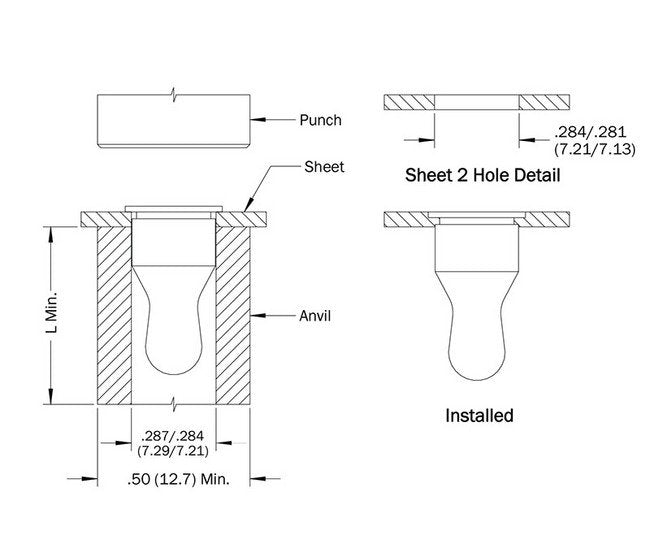

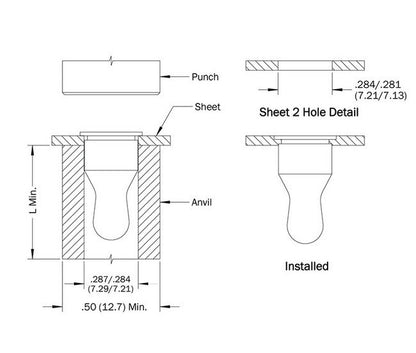

Dimensions Sheet 1 Thickness
.133 to .159 in | 3.36 to 4.04 mm
Dimensions Sheet 2 Thickness
.040 to .049 in | 1.02 to 1.25 mm
Dimensions S 005
.477 in
Dimensions S 13
12.12 mm
Material And Finish Ball Stud Material Code
STL
Material And Finish Finish
Zinc (SC1) with Type III Clear Chromate per ASTM B 633
Material And Finish For Use In Maximum Sheet Hardness
80 Rockwell B
Material And Finish Material
Heat Treated Carbon Steel
Note Note For Performance
Performance data represents the average destructive result when all installation specifications are strictly followed. Variations in sheet hole size, thickness, material, and installation methods will affect the loads. PENCOM strongly encourages testing in the application.
Performance 1008 Carbon Steel Hrb 60 Test Sheet Material Install
3600 to 4400 lb | 16.0 to 19.6 kN
Performance 1008 Carbon Steel Hrb 60 Test Sheet Material Push Ou
360 lb | 1601 N
Performance 304 Stainless Steel Hrb 70 Test Sheet Material Insta
2 kN
Performance 304 Stainless Steel Hrb 70 Test Sheet Material Push
2 N
Performance 5052 H32 Aluminum Test Sheet Material Installation
1700 to 2000 lb | 7.6 to 8.9 kN
Performance 5052 H32 Aluminum Test Sheet Material Push Out
230 lb | 1023 N
Performance Test Sheet Material
1008 Carbon Steel HRB 60 | 304 Stainless Steel HRB 70 | 5052-H32 Aluminum
Specifications Industry Standardscertifications
Restriction of Hazardous Substances (RoHS)
Specifications Length Code
570
