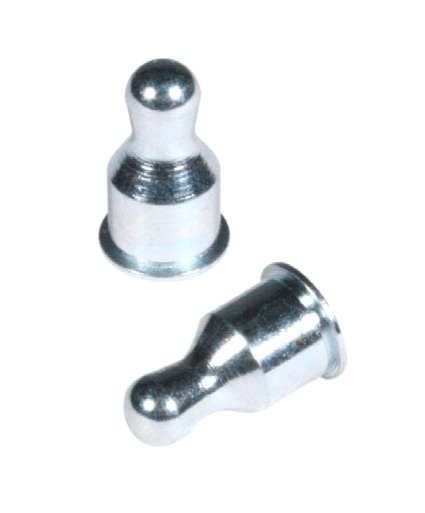

The PENCOM Self-Clinching Ball Stud features heat-treated carbon steel construction with zinc finish for maximum sheet hardness applications. Designed for cabinet doors and inspection panels, this fastener ensures a secure and flush installation on various sheet materials. Varying ball stud lengths accommodate different panel thicknesses, offering adjustable pull-out tension. Meeting RoHS standards, this self-clinching ball stud guarantees lasting performance and ease of disengagement.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information

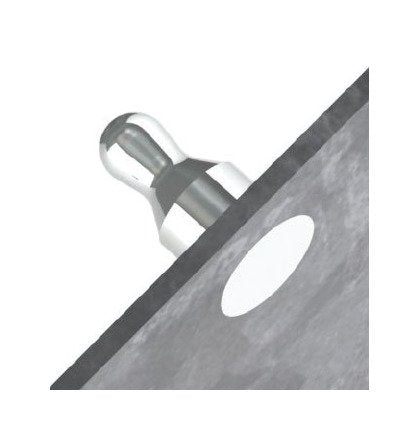

BS12 Self-clinching Ball Studs provide a permanent and reliable installation that creates a flush appearance on the back side of aluminum, carbon steel and stainless steel sheets.

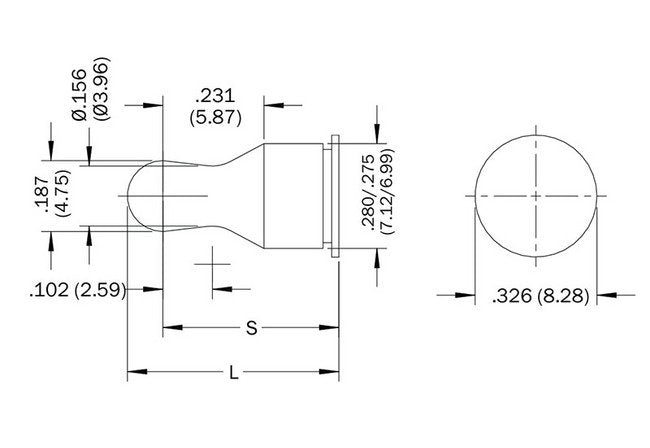

Dimensions L 010
.606 in
Dimensions L 25
15.39 mm
Dimensions Sheet 1 Thickness
.160 to .187 in | 4.05 to 4.75 mm
Dimensions Sheet 2 Thickness
.050 to .059 in | 1.27 to 1.50 mm
Dimensions S 005
.513 in
Dimensions S 13
13.03 mm
Material And Finish Ball Stud Material Code
STL
Material And Finish Finish
Zinc (SC1) with Type III Clear Chromate per ASTM B 633
Material And Finish For Use In Maximum Sheet Hardness
80 Rockwell B
Material And Finish Material
Heat Treated Carbon Steel
Note Note For Performance
Performance data represents the average destructive result when all installation specifications are strictly followed. Variations in sheet hole size, thickness, material, and installation methods will affect the loads. PENCOM strongly encourages testing in the application.
Performance 1008 Carbon Steel Hrb 60 Test Sheet Material Install
3600 to 4400 lb | 16.0 to 19.6 kN
Performance 1008 Carbon Steel Hrb 60 Test Sheet Material Push Ou
360 lb | 1601 N
Performance 304 Stainless Steel Hrb 70 Test Sheet Material Insta
2 kN
Performance 304 Stainless Steel Hrb 70 Test Sheet Material Push
2 N
Performance 5052 H32 Aluminum Test Sheet Material Installation
1700 to 2000 lb | 7.6 to 8.9 kN
Performance 5052 H32 Aluminum Test Sheet Material Push Out
230 lb | 1023 N
Performance Test Sheet Material
1008 Carbon Steel HRB 60 | 304 Stainless Steel HRB 70 | 5052-H32 Aluminum
Specifications Industry Standardscertifications
Restriction of Hazardous Substances (RoHS)
Specifications Length Code
606
