PENCOM Self-Clinching Ball Stud - Heat Treated Carbon Steel BS12
PENCOM Self-Clinching Ball Stud - Heat Treated Carbon Steel BS12
SKU:PEN-501f09
Secure and durable self-clinching ball stud for cabinet doors and inspection panels. Compliant with RoHS standards.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
PENCOM Self-Clinching Ball Stud - Heat Treated Carbon Steel BS12
$14.99
Quantity: 1
Claim Your Seller Account
PENCOM Self-Clinching Ball Stud - Heat Treated Carbon Steel BS12
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

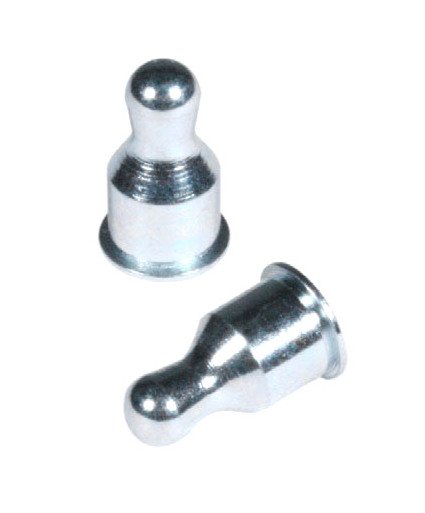

The PENCOM BS12 Self-Clinching Ball Stud is a reliable fastening solution designed for cabinet doors, inspection panels, and more. Its heat-treated carbon steel construction ensures durability and strength. This self-clinching ball stud accommodates various panel thicknesses with different stud lengths, offering versatility in installation. Compliant with RoHS standards, this fastener provides secure and damage-free panel attachment, suitable for a range of applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information

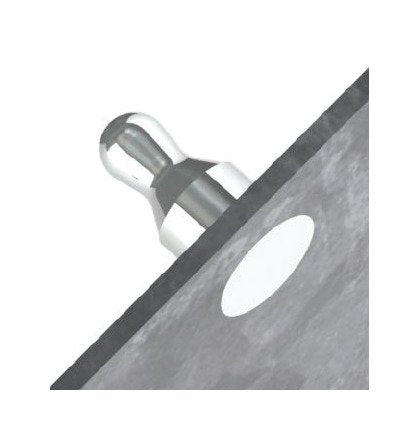

BS12 Self-clinching Ball Studs provide a permanent and reliable installation that creates a flush appearance on the back side of aluminum, carbon steel and stainless steel sheets.

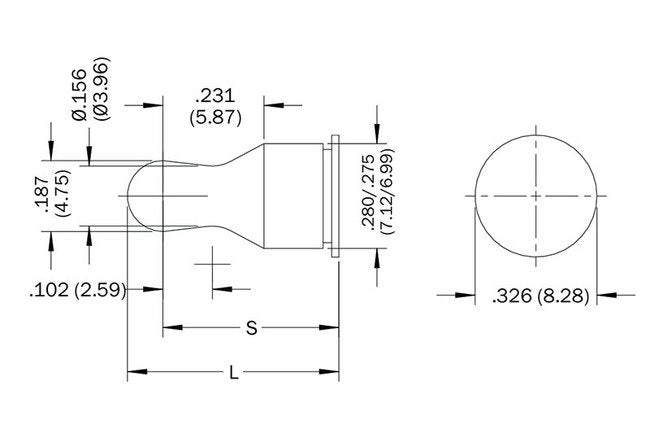

Dimensions L 010
.544 in
Dimensions L 25
13.82 mm

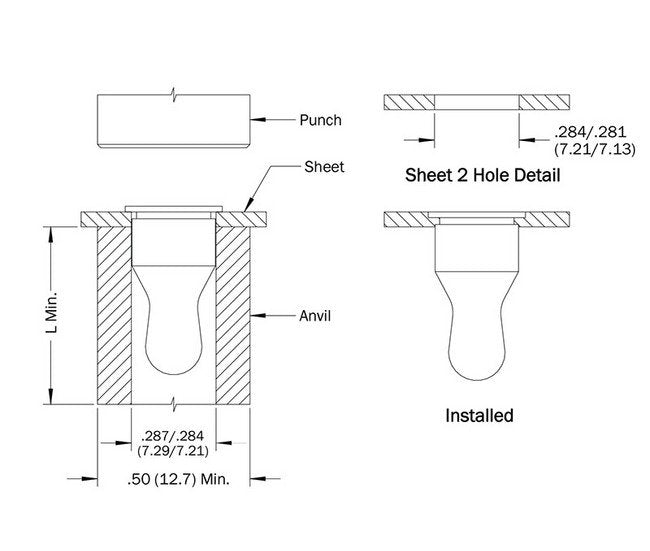

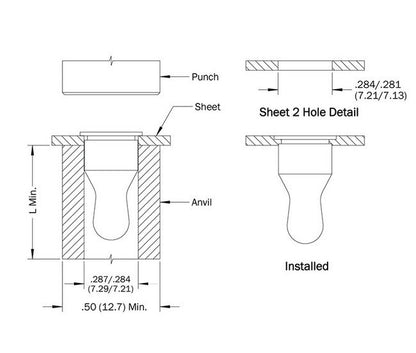

Dimensions Sheet 1 Thickness
.106 to .132 in | 2.68 to 3.35 mm
Dimensions Sheet 2 Thickness
.040 to .049 in | 1.02 to 1.25 mm
Dimensions S 005
.451 in
Dimensions S 13
11.46 mm
Material And Finish Ball Stud Material Code
STL
Material And Finish Finish
Zinc (SC1) with Type III Clear Chromate per ASTM B 633
Material And Finish For Use In Maximum Sheet Hardness
80 Rockwell B
Material And Finish Material
Heat Treated Carbon Steel
Note Note For Performance
Performance data represents the average destructive result when all installation specifications are strictly followed. Variations in sheet hole size, thickness, material, and installation methods will affect the loads. PENCOM strongly encourages testing in the application.
Performance 1008 Carbon Steel Hrb 60 Test Sheet Material Install
3600 to 4400 lb | 16.0 to 19.6 kN
Performance 1008 Carbon Steel Hrb 60 Test Sheet Material Push Ou
360 lb | 1601 N
Performance 304 Stainless Steel Hrb 70 Test Sheet Material Insta
2 kN
Performance 304 Stainless Steel Hrb 70 Test Sheet Material Push
2 N
Performance 5052 H32 Aluminum Test Sheet Material Installation
1700 to 2000 lb | 7.6 to 8.9 kN
Performance 5052 H32 Aluminum Test Sheet Material Push Out
230 lb | 1023 N
Performance Test Sheet Material
1008 Carbon Steel HRB 60 | 304 Stainless Steel HRB 70 | 5052-H32 Aluminum
Specifications Industry Standardscertifications
Restriction of Hazardous Substances (RoHS)
Specifications Length Code
544
