PENCOM Self-Clinching Ball Studs
PENCOM Self-Clinching Ball Studs
SKU:PEN-49e691
Secure and damage-free, PENCOM Self-Clinching Ball Studs offer adjustable pull-out tension and reliable performance across various sheet materials.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
PENCOM Self-Clinching Ball Studs
$29.99
Quantity: 1
Claim Your Seller Account
PENCOM Self-Clinching Ball Studs
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

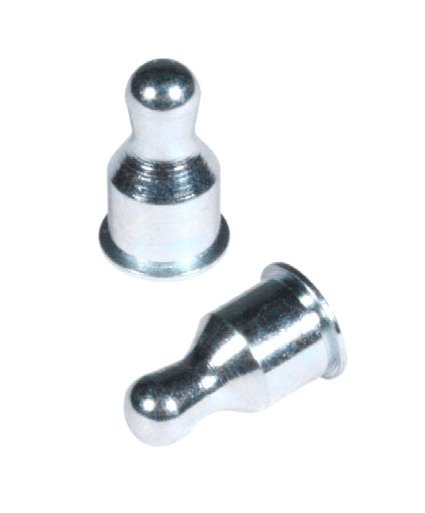

Upgrade your panel fastening with PENCOM Self-Clinching Ball Studs. Ideal for cabinet doors and inspection panels, these RoHS-compliant stainless steel ball studs ensure secure and damage-free fastening. With varying stud lengths and clip material thicknesses, adjust pull-out tension for different panel thicknesses. Tested for performance on a range of sheet materials, these ball studs provide a permanent and flush installation, maintaining reliability and aesthetics.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information

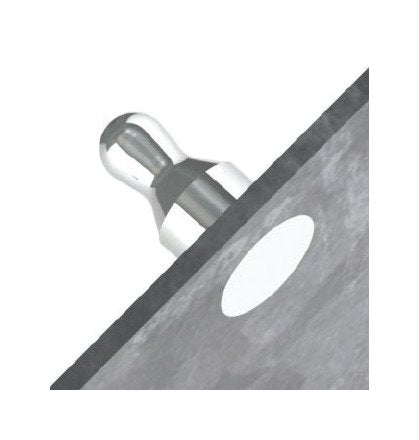

BS12 Self-clinching Ball Studs provide a permanent and reliable installation that creates a flush appearance on the back side of aluminum, carbon steel and stainless steel sheets.

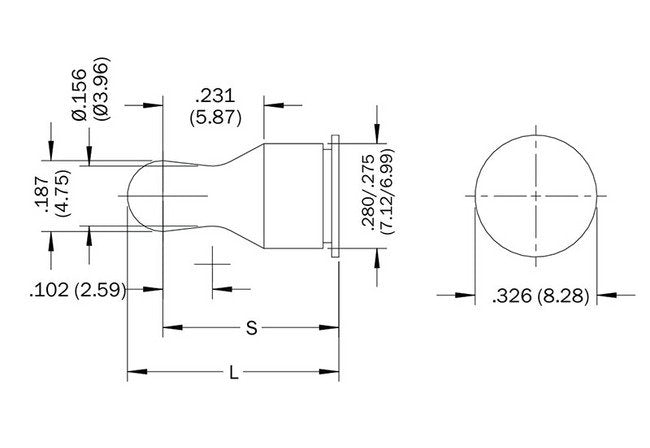

Dimensions L 010
.580 in
Dimensions L 25
14.73 mm
Dimensions Sheet 1 Thickness
.133 to .159 in | 3.36 to 4.04 mm

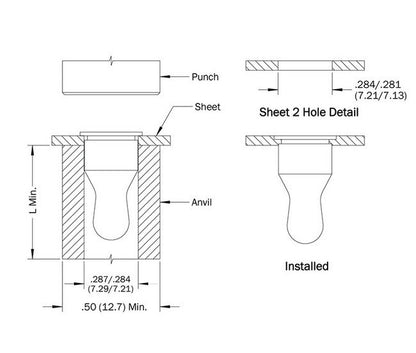

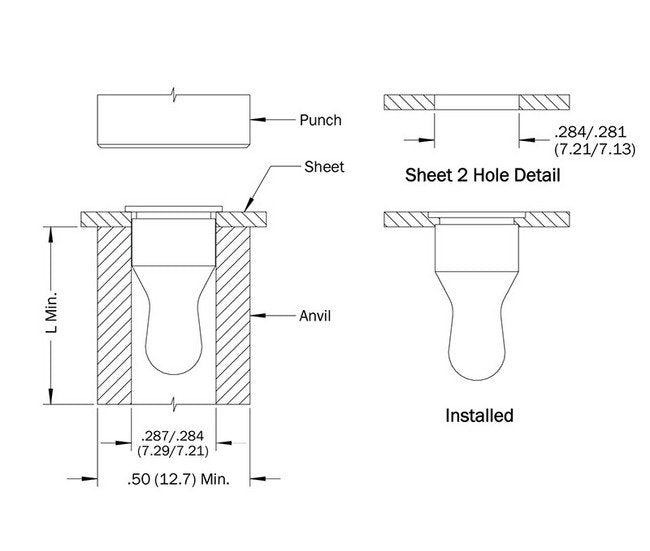

Dimensions Sheet 2 Thickness
.050 to .059 in | 1.27 to 1.50 mm
Dimensions S 005
.487 in
Dimensions S 13
12.37 mm
Material And Finish Ball Stud Material Code
SS
Material And Finish Finish
Passivated and/or Tested per ASTM A 967
Material And Finish For Use In Maximum Sheet Hardness
70 Rockwell B
Material And Finish Material
300-Series Stainless Steel
Note Note For Performance
Performance data represents the average destructive result when all installation specifications are strictly followed. Variations in sheet hole size, thickness, material, and installation methods will affect the loads. PENCOM strongly encourages testing in the application.
Performance 1008 Carbon Steel Hrb 60 Test Sheet Material Install
3600 to 4400 lb | 16.0 to 19.6 kN
Performance 1008 Carbon Steel Hrb 60 Test Sheet Material Push Ou
360 lb | 1601 N
Performance 304 Stainless Steel Hrb 70 Test Sheet Material Insta
2 kN
Performance 304 Stainless Steel Hrb 70 Test Sheet Material Push
2 N
Performance 5052 H32 Aluminum Test Sheet Material Installation
1700 to 2000 lb | 7.6 to 8.9 kN
Performance 5052 H32 Aluminum Test Sheet Material Push Out
230 lb | 1023 N
Performance Test Sheet Material
1008 Carbon Steel HRB 60 | 304 Stainless Steel HRB 70 | 5052-H32 Aluminum
Specifications Industry Standardscertifications
Restriction of Hazardous Substances (RoHS)
Specifications Length Code
580
