PENCOM Self-Clinching Standoff - .128 Inch Sheet Hole Size
PENCOM Self-Clinching Standoff - .128 Inch Sheet Hole Size
SKU:PEN-c96a63
Achieve precise panel spacing with PENCOM's Self-Clinching Standoff - .128" sheet hole size. RoHS compliant, durable carbon steel construction.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
PENCOM Self-Clinching Standoff - .128 Inch Sheet Hole Size
$24.99
Quantity: 1
Claim Your Seller Account
PENCOM Self-Clinching Standoff - .128 Inch Sheet Hole Size
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

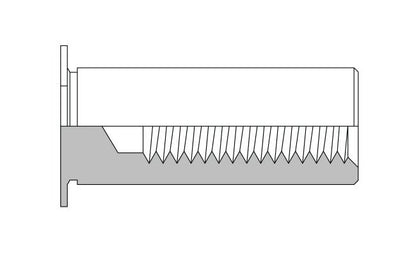

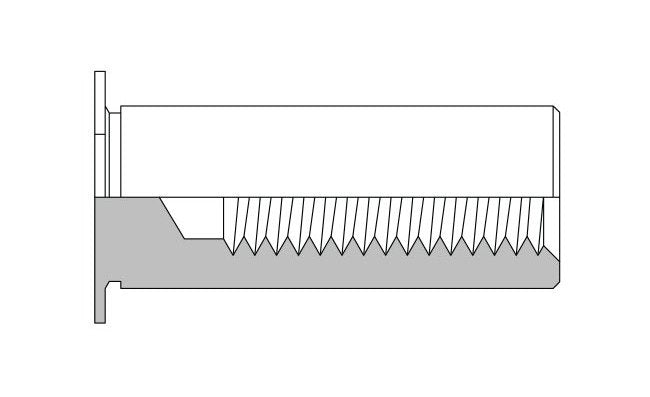

The PENCOM Self-Clinching Standoff with a .128-inch sheet hole size is expertly designed for precise panel spacing and permanent installation in ultra-thin sheets. Compliant with RoHS standards, it features miniature threads, robust carbon steel construction, and zinc finish for enhanced durability. Tested for performance under rigorous conditions, this standoff ensures reliable fastening in small-scale applications.
Product Specifications
Dimensions C 000 005
.127 in
Dimensions H Nom
.156 in
Dimensions L Length 003
.625 in
Dimensions Min Sheet Thickness
.025 in
Dimensions Sheet Hole Size 003 000
.128 in
Material And Finish Finish
Zinc (SC1) with Type III Clear Chromate per ASTM B 633
Material And Finish For Use In Maximum Sheet Hardness
60 Rockwell B
Material And Finish Material
12L14 Carbon Steel
Material And Finish Material Code
ST
Note For Performance Note For Performance
Performance data represents the average destructive result for standoffs only when all installation specifications are strictly followed. Variations in panel hole size, thickness, material, and installation methods will affect the loads. PENCOM strongly encourages testing the application.
Note Note For Length
Custom Lengths And Type Combinations Available By Request
Performance 025 Inch In 5052 H34 Aluminum Installation Force
900 lb
Performance 025 Inch In 5052 H34 Push Out Tension
60 lb
Performance 025 Inch In 5052 H34 Torque Out
4.5 in·lb
Performance 025 Inch In Cold Rolled Steel Installation Force
1500 lb
Performance 025 Inch In Cold Rolled Steel Push Out Tension
80 lb
Performance 025 Inch In Cold Rolled Steel Torque Out
6.5 in·lb
Performance Anvil Dimensions
Standoff C Dimension - .127 Inch (in)A +.003/-.000 - .129 Inch (in)B +.007/.00 - .156 Inch (in)
Performance D Minimum Thread Depth
.125 in
Performance Minimum Distance From Sheet Hole Center To Edge
.19 in
Performance Test Sheet Material
.025 5052-H34 Aluminum | .025" Cold-Rolled Steel
Performance Thread Code
080
Performance Thread Size
0-80
Specifications Industry Standardscertifications
Restriction of Hazardous Substances (RoHS)
