PENCOM Self-Clinching Standoff 5.41mm Hole Size
PENCOM Self-Clinching Standoff 5.41mm Hole Size
SKU:PEN-49289d
Achieve precise panel spacing with the PENCOM Self-Clinching Standoff 5.41mm. RoHS compliant materials ensure quality and performance.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
PENCOM Self-Clinching Standoff 5.41mm Hole Size
$12.99
Quantity: 1
Claim Your Seller Account
PENCOM Self-Clinching Standoff 5.41mm Hole Size
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

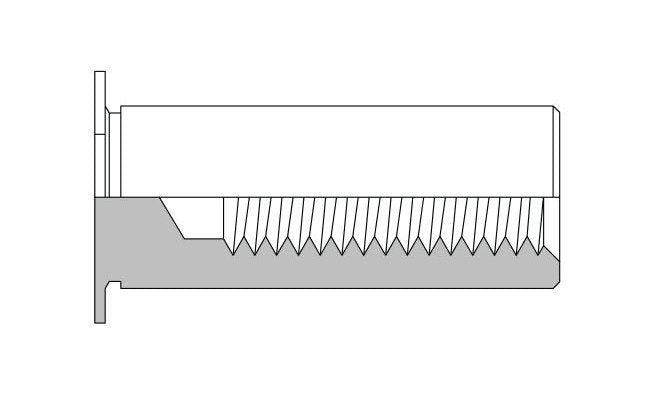

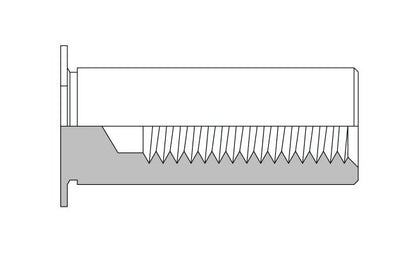

The PENCOM Self-Clinching Standoff with a 5.41mm Sheet Hole Size offers precise panel spacing and permanent installation in ultra-thin sheets. Designed for small-scale applications, it features RoHS compliant materials and finishes, ensuring quality and environmental safety. With exceptional performance metrics and customization options, this standoff is a reliable solution for stacked panel assemblies.
Product Specifications
Dimensions Anvil Dimensions
Standoff C Dimension - 5.39 Millimeter (mm)A +0.08/-0.00 - 5.41 Millimeter (mm)B +0.18/-0.00 - 6.35 Millimeter (mm)
Dimensions C 00 13
5.39 mm
Dimensions D Minimum Thread Depth
7.0 mm
Dimensions H Nom
6.35 mm
Dimensions L Length 08
16.00 mm
Dimensions Minimum Distance From Sheet Hole Center To Edge
7.1 mm
Dimensions Min Sheet Thickness
.63 mm
Dimensions Sheet Hole Size 08 00
5.41 mm
Dimensions Thread Code
M35
Dimensions Thread Size
M3.5 x .6
Material And Finish Finish
Zinc (SC1) with Type III Clear Chromate per ASTM B 633
Material And Finish Material
12L14 Carbon Steel
Material And Finish Material Code
ST
Material And Finish Maximum For Use In Sheet Hardness
60 Rockwell B
Note For Performance Note For Performance
Performance data represents the average destructive result for standoffs only when all installation specifications are strictly followed. Variations in panel hole size, thickness, material, and installation methods will affect the loads. PENCOM strongly encourages testing the application.
Note Note For Length
Custom Lengths And Type Combinations Available By Request
Performance 63 Millimeter Mm 5052 H34 Aluminum Installation
8.0 kN
Performance 63 Millimeter Mm 5052 H34 Aluminum Push Out
400 N
Performance 63 Millimeter Mm 5052 H34 Aluminum Torque Out
1.24 nm
Performance 63 Millimeter Mm Cold Rolled Steel Installation
11.1 kN
Performance 63 Millimeter Mm Cold Rolled Steel Push Out
667 N
Performance 63 Millimeter Mm Cold Rolled Steel Torque Out
1.69 nm
Performance Test Sheet Material
.63 Millimeter (mm) 5052-H34 Aluminum | .63 Millimeter (mm) Cold-Rolled Steel
Specifications Industry Standardscertifications
Restriction of Hazardous Substances (RoHS)
