PENCOM Self-Clinching Standoff for Thin Panels

Name: PENCOM Self-Clinching Standoff for Thin Panels
Brand: Pencom
SKU: PEN-0380ef
Price: 24.99 USD
Availability: OutOfStock

SKU:PEN-0380ef

Achieve precise panel spacing with PENCOM Self-Clinching Standoff. Permanent installation in thin sheets, compliant with RoHS, offering high performance.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

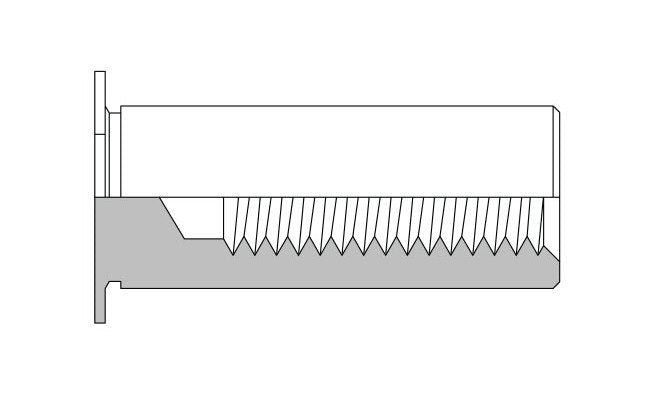

The PENCOM 3.25mm Sheet Hole Size Self-Clinching Standoff offers precise panel spacing, permanent installation in sheets as thin as .63mm, and miniature threads for small-scale applications. Compliant with RoHS standards, made of 303 Stainless Steel, and passivated per ASTM A 967 for durability. It provides high performance in installation and push-out tests on materials like aluminum and cold-rolled steel.

Product Specifications

Dimensions Anvil Dimensions

Standoff C Dimension - 3.23 Millimeter (mm)A +0.08/-0.00 - 3.28 Millimeter (mm)B +0.18/-0.00 - 3.96 Millimeter (mm)

Dimensions C 00 13

3.23 mm

Dimensions D Minimum Thread Depth

3.9 mm

Dimensions H Nom

3.96 mm

Dimensions L Length 08

19.00 mm

Dimensions Minimum Distance From Sheet Hole Center To Edge

4.8 mm

Dimensions Min Sheet Thickness

.63 mm

Dimensions Sheet Hole Size 08 00

3.25 mm

Dimensions Thread Code

Dimensions Thread Size

M2 x .4

Material And Finish Finish

Passivate and/or test per ASTM A 967

Material And Finish Material

303 Stainless Steel

Material And Finish Material Code

Material And Finish Maximum For Use In Sheet Hardness

70 Rockwell B

Note For Performance Note For Performance

Performance data represents the average destructive result for standoffs only when all installation specifications are strictly followed. Variations in panel hole size, thickness, material, and installation methods will affect the loads. PENCOM strongly encourages testing the application.

Note Note For Length

Custom Lengths And Type Combinations Available By Request

Performance 63 Millimeter Mm 5052 H34 Aluminum Installation

4.0 kN

Performance 63 Millimeter Mm 5052 H34 Aluminum Push Out

267 N

Performance 63 Millimeter Mm 5052 H34 Aluminum Torque Out

.51 nm

Performance 63 Millimeter Mm Cold Rolled Steel Installation

6.7 kN

Performance 63 Millimeter Mm Cold Rolled Steel Push Out

356 N

Performance 63 Millimeter Mm Cold Rolled Steel Torque Out

.73 nm

Performance Test Sheet Material

.63 Millimeter (mm) 5052-H34 Aluminum | .63 Millimeter (mm) Cold-Rolled Steel

Specifications Industry Standardscertifications

Restriction of Hazardous Substances (RoHS)
