PENCOM Self-Clinching Standoff for Thin Panels - 5.41mm Hole Size
PENCOM Self-Clinching Standoff for Thin Panels - 5.41mm Hole Size
SKU:PEN-f9163c
Achieve precise panel spacing with PENCOM 5.41mm Self-Clinching Standoff. RoHS compliant, durable stainless steel construction.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
PENCOM Self-Clinching Standoff for Thin Panels - 5.41mm Hole Size
$12.99
Quantity: 1
Claim Your Seller Account
PENCOM Self-Clinching Standoff for Thin Panels - 5.41mm Hole Size
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

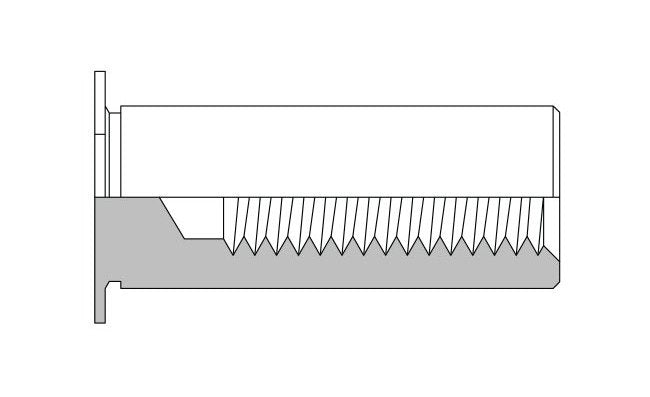

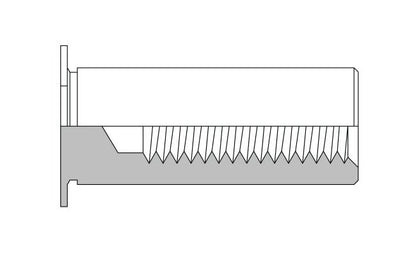

The PENCOM 5.41mm Self-Clinching Standoff is designed for precise panel spacing in thin sheets as thin as .63mm. RoHS compliant, made of 303 stainless steel with passivate finish. Withstand installation up to 11.1 kN on aluminum and 667N on cold-rolled steel. Custom lengths available upon request.
Product Specifications
Dimensions Anvil Dimensions
Standoff C Dimension - 5.39 Millimeter (mm)A +0.08/-0.00 - 5.41 Millimeter (mm)B +0.18/-0.00 - 6.35 Millimeter (mm)
Dimensions C 00 13
5.39 mm
Dimensions D Minimum Thread Depth
7.0 mm
Dimensions H Nom
6.35 mm
Dimensions L Length 08
18.00 mm
Dimensions Minimum Distance From Sheet Hole Center To Edge
7.1 mm
Dimensions Min Sheet Thickness
.63 mm
Dimensions Sheet Hole Size 08 00
5.41 mm
Dimensions Thread Code
M35
Dimensions Thread Size
M3.5 x .6
Material And Finish Finish
Passivate and/or test per ASTM A 967
Material And Finish Material
303 Stainless Steel
Material And Finish Material Code
SS
Material And Finish Maximum For Use In Sheet Hardness
70 Rockwell B
Note For Performance Note For Performance
Performance data represents the average destructive result for standoffs only when all installation specifications are strictly followed. Variations in panel hole size, thickness, material, and installation methods will affect the loads. PENCOM strongly encourages testing the application.
Note Note For Length
Custom Lengths And Type Combinations Available By Request
Performance 63 Millimeter Mm 5052 H34 Aluminum Installation
8.0 kN
Performance 63 Millimeter Mm 5052 H34 Aluminum Push Out
400 N
Performance 63 Millimeter Mm 5052 H34 Aluminum Torque Out
1.24 nm
Performance 63 Millimeter Mm Cold Rolled Steel Installation
11.1 kN
Performance 63 Millimeter Mm Cold Rolled Steel Push Out
667 N
Performance 63 Millimeter Mm Cold Rolled Steel Torque Out
1.69 nm
Performance Test Sheet Material
.63 Millimeter (mm) 5052-H34 Aluminum | .63 Millimeter (mm) Cold-Rolled Steel
Specifications Industry Standardscertifications
Restriction of Hazardous Substances (RoHS)
