PENCOM Self-Clinching Standoff for Thin Panels

Name: PENCOM Self-Clinching Standoff for Thin Panels
Brand: Pencom
SKU: PEN-896f1a
Price: 24.99 USD
Availability: OutOfStock

SKU:PEN-896f1a

Achieve precision panel spacing with PENCOM Self-Clinching Standoffs. RoHS compliant for reliable installation in thin panels.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

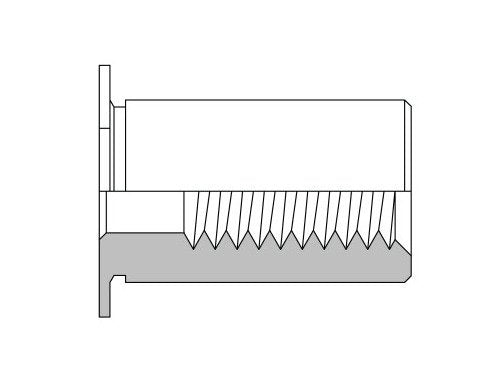

The PENCOM Self-Clinching Standoff is precision-engineered to effectively space stacked or mating panels and chasses, providing a permanent installation in sheets as thin as 0.63 mm. With miniature threads and body diameters suited for small-scale applications, this stand-off offers RoHS compliant materials and finishes for enhanced durability and reliability. Tested to meet stringent performance standards, this standoff ensures secure and stable panel assembly.

Product Specifications

Dimensions Anvil Dimensions

Standoff C Dimension - 4.19 Millimeter (mm)A +0.08/-0.00 - 4.24 Millimeter (mm)B +0.18/-0.00 - 4.75 Millimeter (mm)

Dimensions C 00 13

4.19 mm

Dimensions D Minimum Thread Depth

6.2 mm

Dimensions H Nom

4.76 mm

Dimensions L Length 08

8.00 mm

Dimensions Minimum Distance From Sheet Hole Center To Edge

5.8 mm

Dimensions Min Sheet Thickness

.63 mm

Dimensions Sheet Hole Size 08 00

4.22 mm

Dimensions Thread Code

Dimensions Thread Size

M3 x .5

Material And Finish Finish

Zinc (SC1) with Type III Clear Chromate per ASTM B 633

Material And Finish Material

12L14 Carbon Steel

Material And Finish Material Code

Material And Finish Maximum For Use In Sheet Hardness

60 Rockwell B

Note For Performance Note For Performance

Performance data represents the average destructive result for standoffs only when all installation specifications are strictly followed. Variations in panel hole size, thickness, material, and installation methods will affect the loads. PENCOM strongly encourages testing the application.

Note Note For Length

Custom Lengths And Type Combinations Available By Request

Performance 63 Millimeter Mm 5052 H34 Aluminum Installation

6.7 kN

Performance 63 Millimeter Mm 5052 H34 Aluminum Push Out

311 N

Performance 63 Millimeter Mm 5052 H34 Aluminum Torque Out

.68 nm

Performance 63 Millimeter Mm Cold Rolled Steel Installation

8.9 kN

Performance 63 Millimeter Mm Cold Rolled Steel Push Out

445 N

Performance 63 Millimeter Mm Cold Rolled Steel Torque Out

1.01 nm

Performance Test Sheet Material

.63 Millimeter (mm) 5052-H34 Aluminum | .63 Millimeter (mm) Cold-Rolled Steel

Specifications Industry Standardscertifications

Restriction of Hazardous Substances (RoHS)

PENCOM Self-Clinching Standoff for Thin Panels
