PENCOM Self-Clinching Standoff for Thin Panels
PENCOM Self-Clinching Standoff for Thin Panels
SKU:PEN-a5be80
Achieve precise panel spacing with the RoHS compliant PENCOM Self-Clinching Standoff for Thin Panels. Customizable options available.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
PENCOM Self-Clinching Standoff for Thin Panels
$25.99
Quantity: 1
Claim Your Seller Account
PENCOM Self-Clinching Standoff for Thin Panels
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PENCOM Self-Clinching Standoff is designed to precisely space stacked or mating panels and chasses with its innovative self-clinching design, ensuring permanent installation in sheets as thin as 0.025 inches (0.63 mm). Made of RoHS compliant 303 Stainless Steel and featuring a passivate finish, this standoff meets stringent industry standards and certifications. With a sturdy construction and excellent performance on materials like 5052-H34 Aluminum and Cold-Rolled Steel, it offers reliability and durability for various applications. Custom lengths and type combinations are available upon request.
Product Specifications

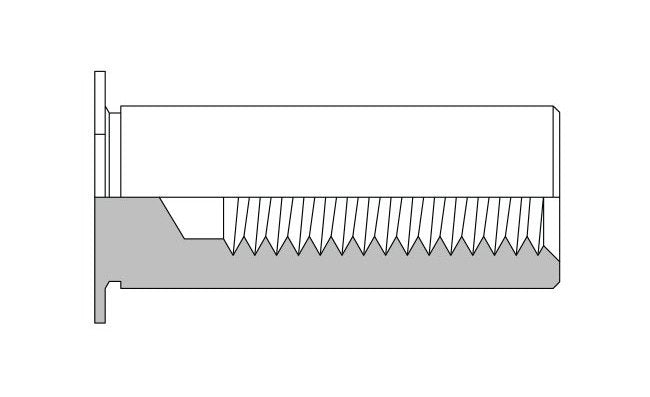

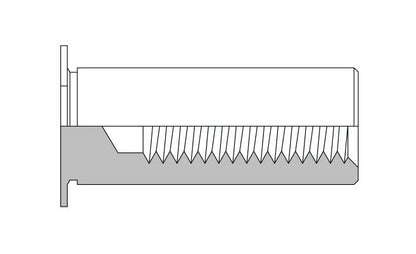

Dimensions Anvil Dimensions
Standoff C Dimension - 4.19 Millimeter (mm)A +0.08/-0.00 - 4.24 Millimeter (mm)B +0.18/-0.00 - 4.75 Millimeter (mm)
Dimensions C 00 13
4.19 mm
Dimensions D Minimum Thread Depth
6.2 mm
Dimensions H Nom
4.76 mm
Dimensions L Length 08
14.00 mm
Dimensions Minimum Distance From Sheet Hole Center To Edge
5.8 mm
Dimensions Min Sheet Thickness
.63 mm
Dimensions Sheet Hole Size 08 00
4.22 mm
Dimensions Thread Code
M3
Dimensions Thread Size
M3 x .5
Material And Finish Finish
Passivate and/or test per ASTM A 967
Material And Finish Material
303 Stainless Steel
Material And Finish Material Code
SS
Material And Finish Maximum For Use In Sheet Hardness
70 Rockwell B
Note For Performance Note For Performance
Performance data represents the average destructive result for standoffs only when all installation specifications are strictly followed. Variations in panel hole size, thickness, material, and installation methods will affect the loads. PENCOM strongly encourages testing the application.
Note Note For Length
Custom Lengths And Type Combinations Available By Request
Performance 63 Millimeter Mm 5052 H34 Aluminum Installation
6.7 kN
Performance 63 Millimeter Mm 5052 H34 Aluminum Push Out
311 N
Performance 63 Millimeter Mm 5052 H34 Aluminum Torque Out
.68 nm
Performance 63 Millimeter Mm Cold Rolled Steel Installation
8.9 kN
Performance 63 Millimeter Mm Cold Rolled Steel Push Out
445 N
Performance 63 Millimeter Mm Cold Rolled Steel Torque Out
1.01 nm
Performance Test Sheet Material
.63 Millimeter (mm) 5052-H34 Aluminum | .63 Millimeter (mm) Cold-Rolled Steel
Specifications Industry Standardscertifications
Restriction of Hazardous Substances (RoHS)
