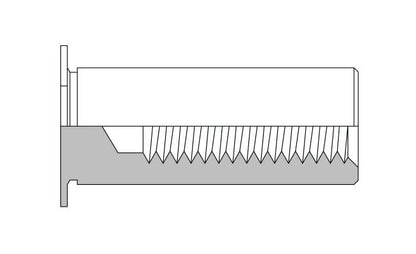

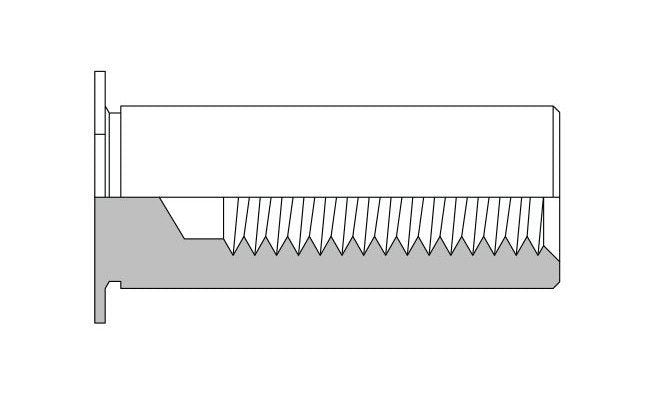

The PENCOM Self-Clinching Standoff is engineered to precisely space stacked or mating panels and chasses, ensuring a secure fit. With a self-clinching design, it offers permanent installation in sheets as thin as 0.63mm. This standoff boasts miniature threads and body diameters perfect for small-scale applications. Choose from RoHS compliant materials and finishes for reliable performance.
Product Specifications
Dimensions Anvil Dimensions
Standoff C Dimension - 4.19 Millimeter (mm)A +0.08/-0.00 - 4.24 Millimeter (mm)B +0.18/-0.00 - 4.75 Millimeter (mm)
Dimensions C 00 13
4.19 mm
Dimensions D Minimum Thread Depth
6.2 mm
Dimensions H Nom
4.76 mm
Dimensions L Length 08
19.00 mm
Dimensions Minimum Distance From Sheet Hole Center To Edge
5.8 mm
Dimensions Min Sheet Thickness
.63 mm
Dimensions Sheet Hole Size 08 00
4.22 mm
Dimensions Thread Code
M3
Dimensions Thread Size
M3 x .5
Material And Finish Finish
Plain
Material And Finish Material
Aluminum
Material And Finish Material Code
AL
Material And Finish Maximum For Use In Sheet Hardness
50 Rockwell B
Note For Performance Note For Performance
Performance data represents the average destructive result for standoffs only when all installation specifications are strictly followed. Variations in panel hole size, thickness, material, and installation methods will affect the loads. PENCOM strongly encourages testing the application.
Note Note For Length
Custom Lengths And Type Combinations Available By Request
Performance 63 Millimeter Mm 5052 H34 Aluminum Installation
6.7 kN
Performance 63 Millimeter Mm 5052 H34 Aluminum Push Out
311 N
Performance 63 Millimeter Mm 5052 H34 Aluminum Torque Out
.68 nm
Performance 63 Millimeter Mm Cold Rolled Steel Installation
Not Recommended kN
Performance 63 Millimeter Mm Cold Rolled Steel Push Out
Not Recommended N
Performance 63 Millimeter Mm Cold Rolled Steel Torque Out
Not Recommended nm
Performance Test Sheet Material
.63 Millimeter (mm) 5052-H34 Aluminum | .63 Millimeter (mm) Cold-Rolled Steel
Specifications Industry Standardscertifications
Restriction of Hazardous Substances (RoHS)
