PENCOM Stainless Steel BS10 Male Ball Stud, .133-.159in Thickness
PENCOM Stainless Steel BS10 Male Ball Stud, .133-.159in Thickness
SKU:PEN-947481
Versatile PENCOM stainless steel ball stud for secure and damage-free fastening on cabinet doors and inspection panels.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
PENCOM Stainless Steel BS10 Male Ball Stud, .133-.159in Thickness
$14.99
Quantity: 1
Claim Your Seller Account
PENCOM Stainless Steel BS10 Male Ball Stud, .133-.159in Thickness
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PENCOM Stainless Steel BS10 Male Ball Stud is a versatile spring catch fastener suitable for cabinet doors and inspection panels in both consumer and institutional settings. It features RoHS-compliant plated carbon steel or stainless steel options, ensuring durability and longevity. With adjustable ball stud lengths to accommodate varying panel thicknesses and pull-out tension, this product offers convenience and reliability. Install with ease using different mounting methods and enjoy the benefits of a secure, damage-free fastening solution.
Product Specifications
Additional Information Additional Information
PENCOM carries a wide assortment of standard and self-clinching nut and washer assemblies and components. Contact a PENCOM Account Manager for recommendations and more information.PENCOM carries a wide assortment of standard and self-clinching nut.A variety of thread locking and lubricating materials can be applied to the threads. Nylon, micro-encapsulated epoxy and other locking elements prevent loosening due to vibration. Lubricating coatings reduce friction, heat buildup and galling during installation of mating fasteners. To specify a nylon locking element, insert PATCH at the end of the part description. Other locking and lubricating materials available by request.
Application Guide Application Guide

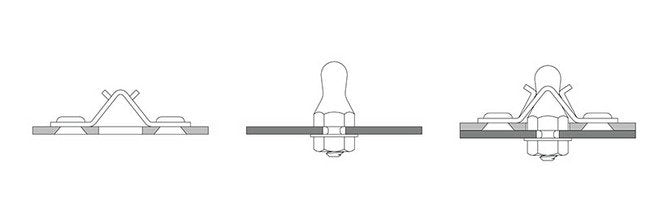

Rivet the ball stud clip onto the panel with either plain or 100° countersunk head rivets, or with screws, nuts and washersInstall the ball stud onto the mating panel according to the appropriate installation methodSnap panels together
Dimensions Length Code
525
Dimensions L 010
.525 in
Dimensions Sheet 1 Thickness
.133 to .159 in
Dimensions S 005
.432 in
Dimensions T 010 000
.687 in
Material And Finish Finish
Passivated and/or Tested per ASTM A 967
Material And Finish Material
300-Series Stainless Steel
Selection Guide Selection Guide
Choose a ball stud clip based on the mounting hole diameter, pull-out tension, material, and finish. All clips fit all ball studs. Pull-out tension varies according to the clip material thickness.Select a ball stud type from the installation styles. Choose a ball stud based on length, material and finish. Vary ball stud length to accommodate Sheet 1 thickness.
Specifications Ball Stud Material Code
SS
Specifications Industry Standardscertifications
Restriction of Hazardous Substances (RoHS)
Specifications Series
BS10
Specifications Thread Length Code
22
Specifications Thread Size
6-32 UNC-2A
Specifications Thread Type
Male
