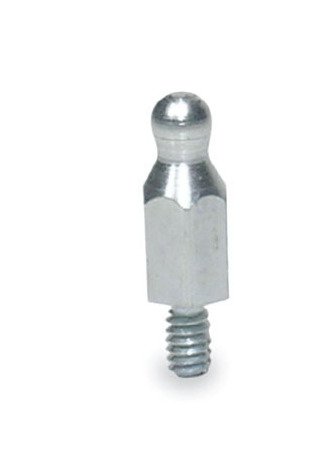

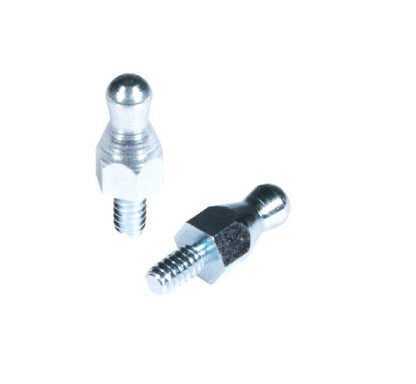

PENCOM Stainless Steel BS10M Male Ball Stud

PENCOM Stainless Steel BS10M Male Ball Stud

SKU:PEN-483a86

Versatile stainless steel male ball stud for reliable and damage-free fastening in various applications.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

PENCOM Stainless Steel BS10M Male Ball Stud

PENCOM Stainless Steel BS10M Male Ball Stud

$29.99

Quantity: 1

Claim Your Seller Account

PENCOM Stainless Steel BS10M Male Ball Stud

PENCOM Stainless Steel BS10M Male Ball Stud

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The PENCOM Stainless Steel BS10M Male Ball Stud is a versatile spring catch fastener designed for repeated disengagement in various applications, including cabinet doors and inspection panels. With adjustable ball stud lengths and pull-out tension, this product accommodates different panel thicknesses with ease. Constructed from RoHS-compliant plated carbon steel and high-quality stainless steel, it ensures durability and reliability while preventing damage to panel finishes. Upgrade your fastening solutions with the precision and flexibility of PENCOM's ball studs.

Product Specifications

Additional Information Additional Information
PENCOM carries a wide assortment of standard and self-clinching nut and washer assemblies and components. Contact a PENCOM Account Manager for recommendations and more information.PENCOM carries a wide assortment of standard and self-clinching nut.A variety of thread locking and lubricating materials can be applied to the threads. Nylon, micro-encapsulated epoxy and other locking elements prevent loosening due to vibration. Lubricating coatings reduce friction, heat buildup and galling during installation of mating fasteners. To specify a nylon locking element, insert PATCH at the end of the part description. Other locking and lubricating materials available by request.
Application Guide Application Guide
Rivet the ball stud clip onto the panel with either plain or 100° countersunk head rivets, or with screws, nuts and washersInstall the ball stud onto the mating panel according to the appropriate installation methodSnap panels together
Dimensions Length Code
1135
Dimensions L 25
11.35 mm
Dimensions Sheet 1 Thickness
1.31 to 1.98 mm
Dimensions S 13
8.99 mm
Dimensions T 25 00
10.50 mm
Material And Finish Ball Stud Material Code
SS
Material And Finish Finish
Passivated and/or Tested per ASTM A 967
Material And Finish Material
300-Series Stainless Steel
Selection Guide Selection Guide
Choose a ball stud clip based on the mounting hole diameter, pull-out tension, material, and finish. All clips fit all ball studs. Pull-out tension varies according to the clip material thickness.Select a ball stud type from the installation styles. Choose a ball stud based on length, material and finish. Vary ball stud length to accommodate Sheet 1 thickness.
Specifications Industry Standardscertifications
Restriction of Hazardous Substances (RoHS)
Specifications Series
BS10M
Specifications Thread Type
Male
Thread Length Thread Length Code
1050
Thread Length Thread Size
M3.5 x .6 6g
