PENCOM Stainless Steel Male Ball Stud for 4.05-4.75mm Thickness
PENCOM Stainless Steel Male Ball Stud for 4.05-4.75mm Thickness
SKU:PEN-4ab8df
Secure cabinet doors and inspection panels with the PENCOM BS10M Male Ball Stud for precise and lasting fastening solutions.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
PENCOM Stainless Steel Male Ball Stud for 4.05-4.75mm Thickness
$24.99
Quantity: 1
Claim Your Seller Account
PENCOM Stainless Steel Male Ball Stud for 4.05-4.75mm Thickness
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

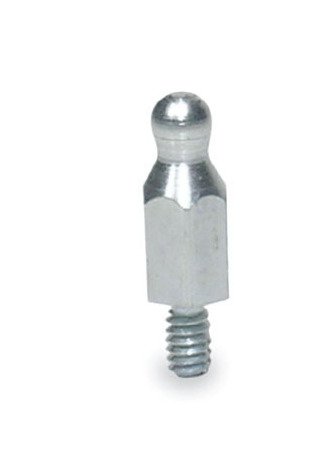

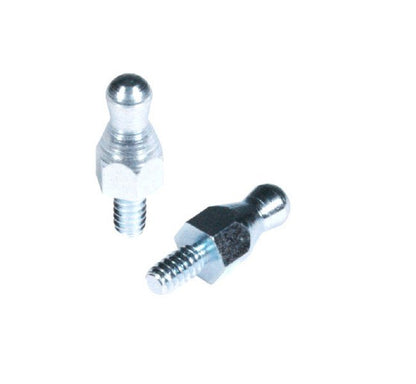

The PENCOM BS10M Male Ball Stud is a versatile fastener designed for cabinet doors, inspection panels, and similar applications requiring frequent disengagement. Featuring RoHS-compliant plated carbon steel or stainless steel construction, this ball stud eliminates direct panel surface contact, preventing damage to finishes. Its adjustable ball stud length accommodates various panel thicknesses, while different clip material thicknesses allow for customizable pull-out tension. Install with ease using rivets or screws, and snap panels together effortlessly. PENCOM delivers reliability and durability in a compact design.
Product Specifications
Additional Information Additional Information
PENCOM carries a wide assortment of standard and self-clinching nut and washer assemblies and components. Contact a PENCOM Account Manager for recommendations and more information.PENCOM carries a wide assortment of standard and self-clinching nut.A variety of thread locking and lubricating materials can be applied to the threads. Nylon, micro-encapsulated epoxy and other locking elements prevent loosening due to vibration. Lubricating coatings reduce friction, heat buildup and galling during installation of mating fasteners. To specify a nylon locking element, insert PATCH at the end of the part description. Other locking and lubricating materials available by request.
Application Guide Application Guide
Rivet the ball stud clip onto the panel with either plain or 100° countersunk head rivets, or with screws, nuts and washersInstall the ball stud onto the mating panel according to the appropriate installation methodSnap panels together
Dimensions Length Code
1400
Dimensions L 25
14.00 mm
Dimensions Sheet 1 Thickness
4.05 to 4.75 mm
Dimensions S 13
11.63 mm
Dimensions T 25 00
18.00 mm
Material And Finish Ball Stud Material Code
SS
Material And Finish Finish
Passivated and/or Tested per ASTM A 967
Material And Finish Material
300-Series Stainless Steel
Selection Guide Selection Guide
Choose a ball stud clip based on the mounting hole diameter, pull-out tension, material, and finish. All clips fit all ball studs. Pull-out tension varies according to the clip material thickness.Select a ball stud type from the installation styles. Choose a ball stud based on length, material and finish. Vary ball stud length to accommodate Sheet 1 thickness.
Specifications Industry Standardscertifications
Restriction of Hazardous Substances (RoHS)
Specifications Series
BS10M
Specifications Thread Type
Male
Thread Length Thread Length Code
1800
Thread Length Thread Size
M3.5 x .6 6g
