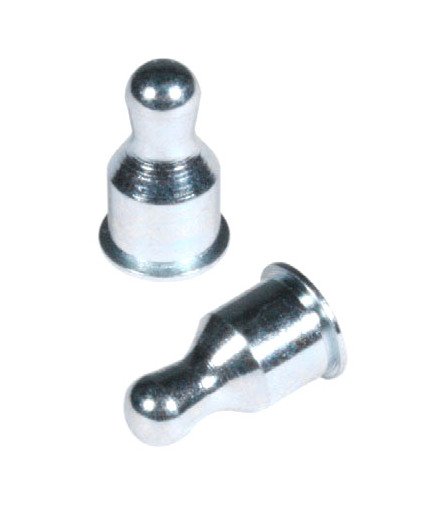

Enhance panel fastening solutions with the PENCOM BS12 Self-Clinching Ball Stud. This stainless steel ball stud ensures a secure and reliable connection, ideal for repeated disengagements without panel damage. It accommodates varying panel thicknesses and offers adjustable pull-out tension. Compliant with RoHS standards, the ball stud is crafted from 300-Series stainless steel and finished per ASTM A 967, ensuring durability and performance under diverse sheet material conditions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information

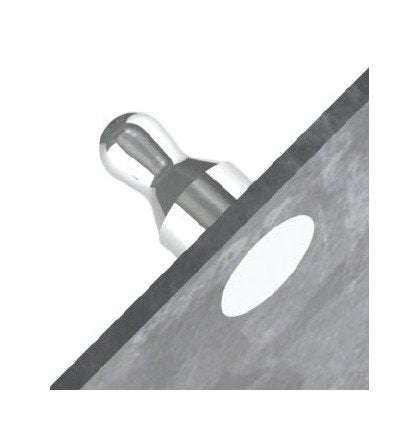

BS12 Self-clinching Ball Studs provide a permanent and reliable installation that creates a flush appearance on the back side of aluminum, carbon steel and stainless steel sheets.

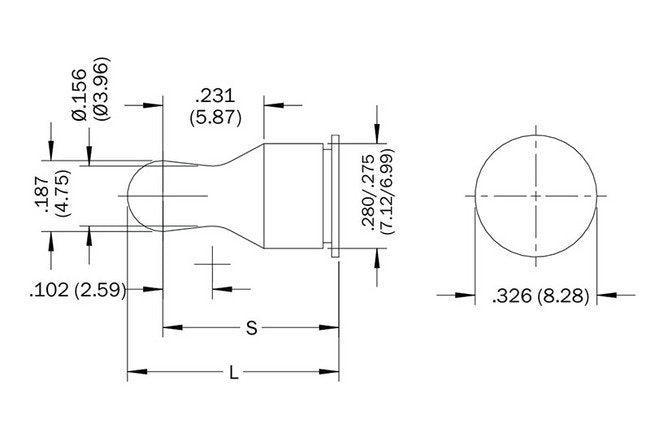

Dimensions L 010
.670 in
Dimensions L 25
17.02 mm

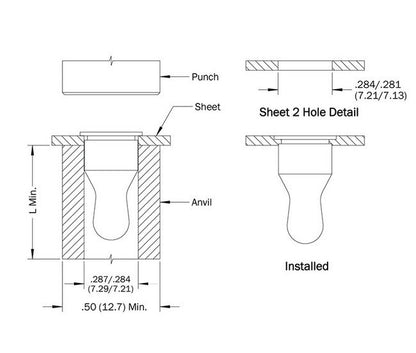

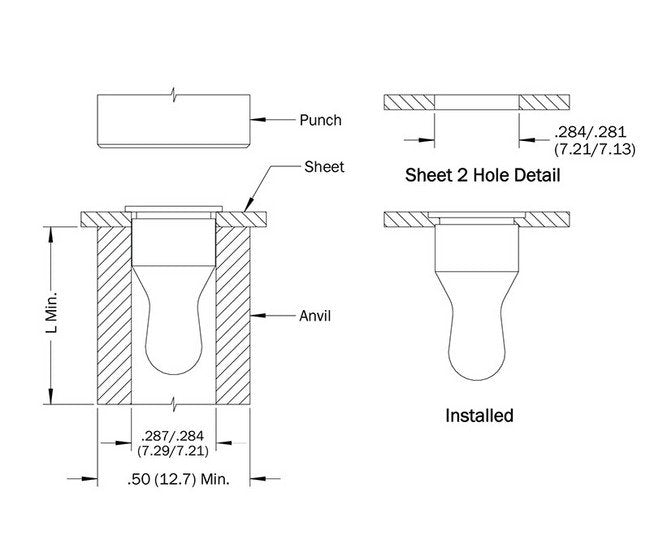

Dimensions Sheet 1 Thickness
.230 to .256 in | 5.84 to 6.50 mm
Dimensions Sheet 2 Thickness
.040 to .049 in | 1.02 to 1.25 mm
Dimensions S 005
.577 in
Dimensions S 13
14.66 mm
Material And Finish Ball Stud Material Code
SS
Material And Finish Finish
Passivated and/or Tested per ASTM A 967
Material And Finish For Use In Maximum Sheet Hardness
70 Rockwell B
Material And Finish Material
300-Series Stainless Steel
Note Note For Performance
Performance data represents the average destructive result when all installation specifications are strictly followed. Variations in sheet hole size, thickness, material, and installation methods will affect the loads. PENCOM strongly encourages testing in the application.
Performance 1008 Carbon Steel Hrb 60 Test Sheet Material Install
3600 to 4400 lb | 16.0 to 19.6 kN
Performance 1008 Carbon Steel Hrb 60 Test Sheet Material Push Ou
360 lb | 1601 N
Performance 304 Stainless Steel Hrb 70 Test Sheet Material Insta
2 kN
Performance 304 Stainless Steel Hrb 70 Test Sheet Material Push
2 N
Performance 5052 H32 Aluminum Test Sheet Material Installation
1700 to 2000 lb | 7.6 to 8.9 kN
Performance 5052 H32 Aluminum Test Sheet Material Push Out
230 lb | 1023 N
Performance Test Sheet Material
1008 Carbon Steel HRB 60 | 304 Stainless Steel HRB 70 | 5052-H32 Aluminum
Specifications Industry Standardscertifications
Restriction of Hazardous Substances (RoHS)
Specifications Length Code
670
