The PennEngineering® Captive Panel Screw-Tool PFC4 is specifically designed for easy installation into stainless steel sheets, providing a fully concealed-head for tool-only access. With a thread size of .190-32 (#10-32) and meticulously crafted from 400 Series Stainless Steel, this tool meets high standards of durability and performance. The spring-loaded design ensures secure fastening in sheets with a hardness of HRB 88 or less, making it ideal for various applications. UL approved and featuring different screw lengths, this tool offers versatility and reliability to meet your fastening needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

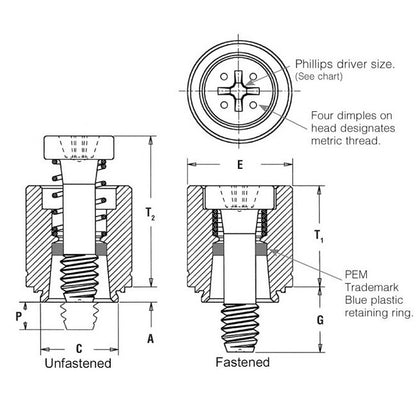

Specifications A Shank Max
.060 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.343 in
Specifications Driver Size
#2 Phillips
Specifications E 010
.437 in
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 88 or Less (Hardness Rockwell âBâ Scale) / HB 183 or Less (Hardness Brinell)
Specifications G 016
.562 in
Specifications Hole Size In Sheet 0003 0000
.344 in
Specifications Material Retainer
400 Series Stainless Steel
Specifications Material Screw
400 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.34 in
Specifications Min Sheet Thickness
.060 in
Specifications P 025
.250 in
Specifications Screw Length Code
94
Specifications T1 Max
.490 in
Specifications T2 Nom
.705 in
Specifications Thread Code
032
Specifications Thread Size
.190-32 (#10;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PFC4
