Pennsylvania Steel Co. H13 DCF Grade 2-Inch Tool Steel Round Rod
Pennsylvania Steel Co. H13 DCF Grade 2-Inch Tool Steel Round Rod
SKU:IND-50b6d7
Premium H13 DCF Grade 2-Inch Tool Steel Round Rod for durable and high-performance tooling applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Pennsylvania Steel Co. H13 DCF Grade 2-Inch Tool Steel Round Rod
$49.99
Quantity: 1
Claim Your Seller Account
Pennsylvania Steel Co. H13 DCF Grade 2-Inch Tool Steel Round Rod
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Pennsylvania Steel Co. H13 DCF Grade 2-Inch Tool Steel Round Rod is a premium quality steel rod designed for exceptional durability and performance in industrial settings. With a Grade of H13 DCF, this round rod offers superior strength and excellent wear resistance, making it ideal for heavy-duty tooling applications. The 2-inch size provides versatility for various machining needs, while its profile as a round rod ensures easy machinability and precise shaping. Manufactured by Pennsylvania Steel Company, a trusted name in the industry, this tool steel round rod delivers reliability and precision for your machining projects.
Product Specifications
Accessories And Options 0
Corrosion resistant tank lining. Auto tank drains. Desiccant air treatment systems. Refrigerated air treatment systems. Remote inlet filters. Master lead/lag controllers for multiple cabinets. NFPA 99 compliant systems. Laboratory system packaging. Air quality monitors (CO, dew point). Special motors (premium efficient, 50 Hz).
Additional Information 0
Powerex® introduced the first dry scroll to the US oil-less compressor market in 1989.The enclosed scroll compressors feature compact footprints, energy efficient operation, low maintenance, and environmentally friendly design, all in one complete package.Redundancy is built into our system with our multiple pump design, eliminating the need to purchase an additional compressor.Why Powerex®?Powerex® has been designing and packaging systems since 1988 and has built a foundation on engineering, innovation, quality and service to become a leader in both air and vacuum systems. Because of our high level of vertical integration and a full in-house engineering team, Powerex® has the ability to customize a system to meet your air or vacuum requirements.
Advanced Controls 0
The system display shows current operating conditions, pump run status, system pressure, run hours, and alarms. The onboard diagnostic system constantly monitors the system and alerts the user of any problems or service required. Advanced control logic determines when to stage compressors to yield maximum energy efficiency.
Compression Principle 0

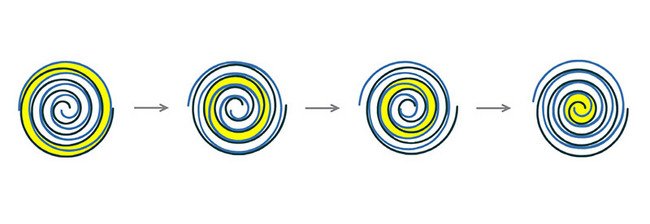

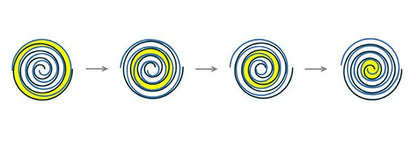

As the orbiting scroll orbits from No.1 to No.4 position, a crescent-shaped cavity is gradually reduced, compressing the air and exhausting it through the final discharge point at the center.
Dimensions Height
61 in
Dimensions Length
38 in
Dimensions Width
26.0 in
Eliminate Waste 0
With no oil in the compressor you can rest assured that you are doing your part for the environment.
Energy Efficiency 0
With the Powerex® Variable-Pump-Drive system, each compressor pump is automatically staged on/off individually based on actual system demand, maximizing energy efficiency at all usage levels. Lead compressor status will alternate every time a pump is called for â or every 10 minutes, whichever comes first - which maintains equal run hours and extends maintenance intervals.
Features 0
Inlet filtration with replaceable element. Front mounted control panel includes: On/Off switch. Power on light. High temperature shutdown with indication on the display. Run time hour meter for each pump. Maintenance counter with alarm warning display. System pressure display. Full voltage starter with overload protection. General compressor fault with remote contacts. Internal vibration isolators. Air-cooled aftercooler for each compressor.
Financing Approve Payments
Finance with Approve Payments
Note 0
For more information, contact your localPowerex® distributor or Powerex® sales representative today!
Redundancy 0
It's built right in with our multiple pump design, eliminating the need to purchase an additional compressor.
Sound Enclosure Cabinet 0
Each system is packaged in a rigid steel frame with powder coated panels and lined with sound-deadening insulation. The low noise levels are unmatched in the industry and allow installation at the point of use, while the small footprint simultaneously maximizes floor space.
Specifications Air Receivers Capacity
30 to 60 gal
Specifications Compressor Capacity
25,450 Btu/hr

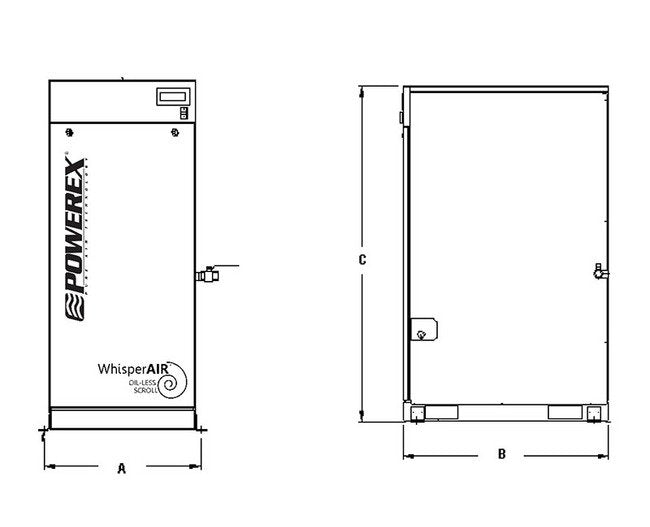

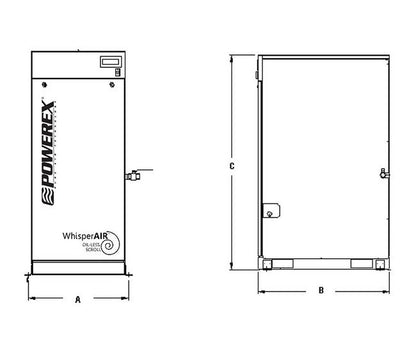

Specifications Dimension A
26 in
Specifications Dimension B
38 in
Specifications Dimension C
61 in
Specifications Discharge
1 in
Specifications Industry Standardscertifications
UL/CSA Certified
Specifications Maximum Pressure
145 psig
Specifications Model Type
Multiplex
Specifications Motor Type
Totally Enclosed Fan Cooled (TEFC)
Specifications Noise Level
53 dBA
Specifications Number Of Pumps
2
Specifications Operating Pressure
119 to 145 psig
Specifications Outlet Size
1 in
Specifications Performance Air Flow At 100 Psig
25 scfm
Specifications Pump Power
10 hp
Specifications System Full Load Current Fla At 208 V
30.8 A
Specifications System Full Load Current Fla At 230 V
28 A
Specifications System Full Load Current Fla At 460 V
15 A
Specifications System Weight
825 lb
Specifications Total System Power
10 hp
Specifications Weight
825 lb
Technology And Innovation 0

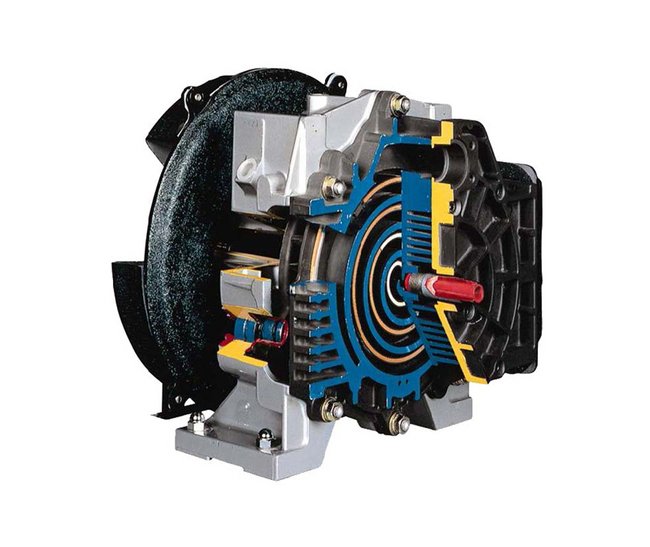

The scroll pump has few moving parts making it reliable and easier to maintain. The self-lubricating tip seals, and absence of a gearbox means the pump is truly 100% oil free.As the leaders in scroll pump technology, our latest design incorporates several innovative features: Main bearings are housed in durable cast iron instead of aluminum which prevents fretting and premature failure of the bearing race. This pump can be operated at 100% duty with confidence. The patented bearing re-grease feature has been improved to allow maintenance from the front side of the pump, cutting service time in half. The patented tip seal design yields the highest flow rates and longevity of any other dry scroll compressor. The improved efficiency and cooling results in lower operating temperatures. Extremely low vibration. Industry first 10 hp scroll pump improves system efficiency by producing more output using fewer pumps.
The Powerex Oilless Advantage Benefits Of An Oilless Compressor
Extremely reliable. 100% oil free system. No contamination of product. No contamination of powered equipment. More environmentally friendly. Less filtration required. Less maintenance â no oil changes needed! No oil water separators needed.
The Powerex Oilless Advantage Disadvantages Of An Oil Flooded Co
Potential oil contamination of product. Potential oil contamination of powered equipment. Low-quality âoil freeâ compressors can damage equipment. Potential oil contamination of environment. Require additional activated carbon filters. Higher level of maintenance â oil changes and filter maintenance required.
