Pennsylvania Steel Company H13 DCF Grade 3-1/2 Inch Tool Steel Round Rod
Pennsylvania Steel Company H13 DCF Grade 3-1/2 Inch Tool Steel Round Rod
SKU:IND-79955d
Premium H13 DCF Grade Tool Steel Round Rod, 3-1/2 inch size, ideal for machining, tooling, and die work. Ensures durability and strength.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Pennsylvania Steel Company H13 DCF Grade 3-1/2 Inch Tool Steel Round Rod
$79.99
Quantity: 1
Claim Your Seller Account
Pennsylvania Steel Company H13 DCF Grade 3-1/2 Inch Tool Steel Round Rod
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Pennsylvania Steel Company H13 DCF Grade Tool Steel Round Rod in 3-1/2 inch size is a premium choice for industrial applications. Crafted from high-quality steel, this round rod offers exceptional durability and strength for machining, tooling, and die work. With a weight of 33.372 lb per foot, it provides the stability and reliability required for heavy-duty operations. This tool steel round rod is designed to meet the rigorous demands of institutional and government buyers, ensuring compliance with industry standards.
Product Specifications
Additional Information 0
Each system is completely tested before shipment and includes: Multiple oil-less scroll air compressors and associated equipment Corrosion resistant air receiver Desiccant air dryers with purge control Control panel Dew point monitor The only field connections required will be system intake, exhaust, and power connection at the control panel. All interconnecting piping, wiring, and vibration isolation pads are included with the system.
Air Purification Package 0
The air purification package shall consist of the following: dual desiccant air dryers, dual filter and regulator bank with sample ports, and dew point monitor with alarms, and all bypass piping. Piping to be brass, stainless, or type K copper, and cleaned for medical air use. All components shall be mounted piped and wired to the air receiver.
Air Receiver 0
The system shall include an ASME air receiver rated for 200 PSI MAWP. The tank shall be equipped with: A pressure gauge and a safety relief valve By-pass valves to allow tank isolation without system shutdown A sight gauge An automatic electronic tank drain with manual override The receiver shall be internally lined with an FDA approved material for corrosion resistance.
Desiccant Air Dryers 0
The twin-tower, heatless desiccant air dryer is designed for a pressure dew point of -40 degrees F. Each dryer is sized to meet the full SCFM requirement of the system. The dryer shall be installed and plumbed on a common steel skid to the air receiver. The dryer design shall be of the automatic pressure swing, heatless, regenerative type and shall include a solid state cycle timer, reliable switching valve design, and purge muffler for quiet operation. Dryer controls shall include on/off/variable mode selector switch, and digital display.The filtration system shall consist of 2 stages of filtration mounted and plumbed to the air dryer. The first stage of filtration shall include a centrifugal water separation and a 5 micron filter element with element coalescing vibration or a .01 micron or finer pre-filter with element change indicator and automatic condensate drain and installed upstream of the air dryer. The second stage shall include a 1 micron (or finer) particulate filter with element change indicator and installed downstream of the air dryer.
Filtration And Pressure Reducing Station 0
Each filter/dryer/regulator assembly shall be plumbed with bypass valves to enable service without disrupting air flow to the facility. Each assembly also includes a sample air port. The filtration systems consist of two stages of filtration as outlined above in the Desiccant Air Dryers section. Additionally, each assembly shall include: A dual set of pressure reducing valves with pressure gauges shall be installed downstream of the final filters and shall be adjusted to an outlet pressure of 115 psig.
Financing Approve Payments
Finance with Approve Payments
Motor 0
Each compressor shall be belt driven by a 1750 RPM, ODP, NEMA construction motor. Motors running at speeds higher than 1750 RPM shall not be acceptable. OSHA approved belt guards shall be provided.
Note 0
For Air Flow at 19 inHg, Compressor Capacity, System Full Load Current (F.L.A) at 208 V, System Full Load Current (F.L.A) at 230 V, and System Full Load Current (F.L.A) at 460 V values listed are with all pumps running.10 hp systems will have one separator per two pumps.

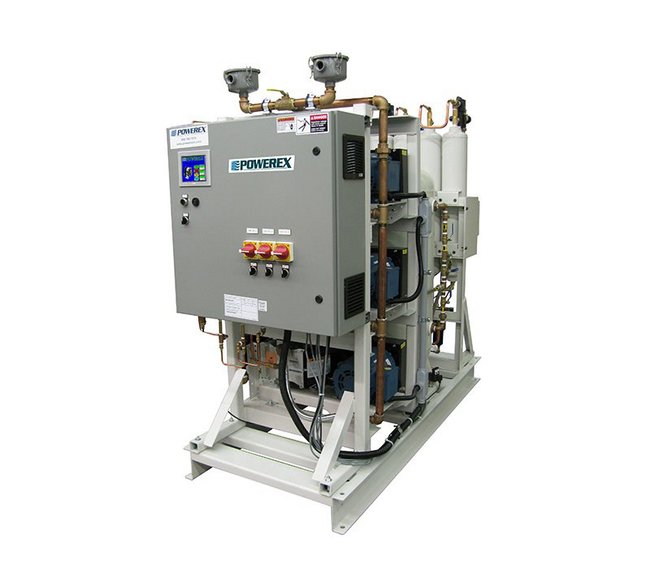

Open Scroll Air Compressor System 0
Each compressor shall be belt driven oil-less rotary scroll single stage, air-cooled construction with absolutely no oil needed for operation. Direct drive compressors shall not be used. The rotary design shall not require any inlet or exhaust valves and shall be rated for 100% continuous duty Tip seals shall be of a composite PTFE material and be rated for 5,000 hours operation. Compressor bearings shall be external to the air compression chamber and shall all be serviceable for extended compressor life. Bearing maintenance shall not be required until 5,000 run hours. Compressors with bearings that are not accessible for service have a limited life span and shall not be accepted. Compressors shall have an integral radial flow fan for cooling and shall not require any additional electric cooling fans. Each compressor shall have flexible connectors on intake and discharge, an electric drive motor, a discharge check valve, an air-cooled aftercooler, a condensate separator* and a high discharge temperature shut down switch. Each compressor module shall have an isolation valve and a moisture separator* with automatic drain.
Premium Nfpa Control Panel 0
The control system provides automatic lead/lag sequencing and automatic alternation of all compressors in order to equalize the amount of usage among the available compressors. The Premium NFPA Control Panel shall include a gateway server card and all features listed below: Building automation communication gateway with BacNet® protocol and Web server features. Web server features include email notifications in case the system is in alarm or has achieved one of its maintenance intervals and requires service. Ethernet port for connection to BacNet® server or direct connection to facility Ethernet for viewing of system operations and status via device IP-address UL508-A listed control panel in a NEMA 4/12 enclosure. The panel door will include: UL508-A listed control panel in a NEMA 4/12 enclosure. The panel door will include: 6â Color touch-screen HOA (hand-off-auto) switch for each pump 3-position Dryer control switch (dryer1-both dryer2) 95 dba alarm horn Acknowledge push-button (to silence the horn) The 6-inch color touch-screen will display: Pump status: On, Off, or Ready Pump Faults/Service state: High temperature, overload trip, service required Pump run hours System pressure System Dew-point Trends Pump information screens will display pump maint intervals with required service System alarm screen: Low Pressure Alarm General Fault Alarm (Pump faults) Air Quality Alarm (Dew-point or optional CO) Pump Maint required Dryer and monitor service notices Alarm log Dry contacts are provided on a labeled terminal strip for remote monitoring of all system alarms.
Specifications Air Flow
97600 Btu/hr
Specifications Air Flow At 145 Psig
100 scfm

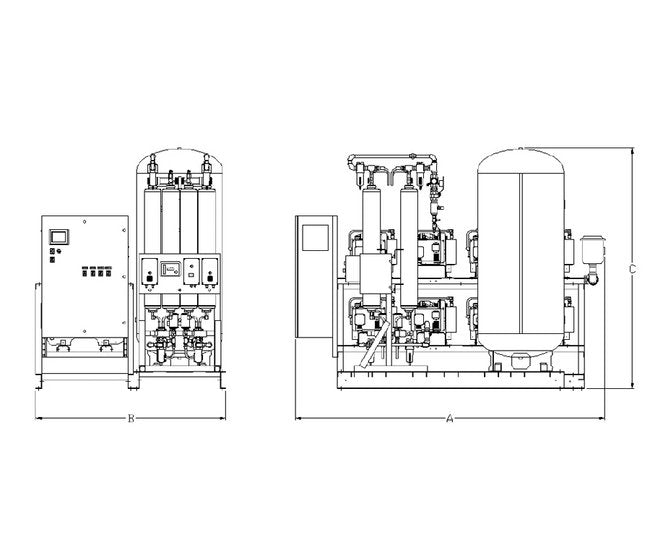

Specifications Dimension A
66 in
Specifications Dimension B
97 in
Specifications Dimension C
83 in

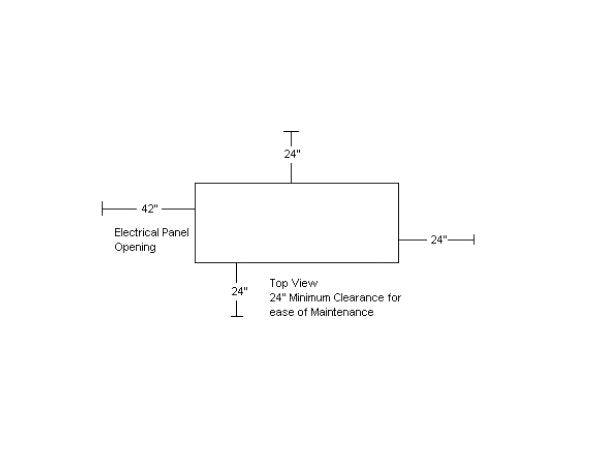

Specifications Electrical Panel Opening
42 in
Specifications Minimum Clearance For Ease Of Maintenance
24 in
Specifications Optional Inlet X2
2
Specifications Outlet Size
1-1/2 in
Specifications Power
10 hp
Specifications Sound Level
80 dBA
Specifications System Full Load Current Fla At 208 V
133.6 A
Specifications System Full Load Current Fla At 230 V
121.6 A
Specifications System Full Load Current Fla At 460 V
60.8 A
Specifications System Weight
3500 lb
Specifications Tank Capacity
200 gal
Specifications Type
Quadraplex
Specifications Warranty Limited
3 years
