Pentek Fibredyne ELPC-20 Carbon Filter Cartridge for Electroplating Solutions
Pentek Fibredyne ELPC-20 Carbon Filter Cartridge for Electroplating Solutions
SKU:FIL-956ccb
Premium Pentek Fibredyne ELPC-20 Carbon Filter Cartridge for Electroplating Solutions - 7 micron rating, superior dirt-holding, and minimal pressure drop.
Regular price
$660.00
Regular price
Sale price
$660.00
Unit price
per
Initiate Order
Pentek Fibredyne ELPC-20 Carbon Filter Cartridge for Electroplating Solutions
$660.00
Quantity: 1
Claim Your Seller Account
Pentek Fibredyne ELPC-20 Carbon Filter Cartridge for Electroplating Solutions
$660.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

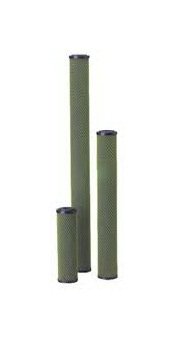

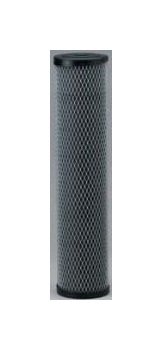

The Pentek Fibredyne ELPC-20 Carbon Filter Cartridge is a premium solution designed for electroplating applications, ensuring a cellulose-free construction that resists chemical breakdown in both acidic and alkaline solutions. With a 7 micron nominal rating and superior dirt-holding capacity, this cartridge features an integrated post-filtration layer to prevent carbon fines from bleeding into the plating bath. The Fibredyne technology provides depth filtration for maximum treatment efficiency with minimal pressure drop, making it an ideal choice for critical electroplating processes.
Product Specifications
Note Note
Cartridges will contain a very small amount of carbon fines (very fine black powder). After installation, a new cartridge should be flushed with sufficient water to remove all traces of fines prior to using the water.Micron ratings based on 85% or greater removal of given particle size. Estimated capacity using 2ppm free available chlorine at 0.5 ppm breakthrough.
Specifications Case Quantity
20
Specifications Intial P Psi Flow Rate Gpm
0.2 bar @ 7.6 Lpm | 3.4 psi @ 2 gpm
Specifications Manufacturer
Pentair
Specifications Materials Of Contruction
End Caps - Polypropylene | Filter Media - Bonded PAC | Gaskets - Santoprene⢠| Netting - Polyethylene
Specifications Max Dimensions
2-7/8 x 20 "
Specifications Micron Rating Nominal
10
Specifications Price
660.00 USD
Specifications Temperature Rating
40 to 180 ºF
Specifications Warning
Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the unit.
Specifications Weight Per Case
24 lbs
