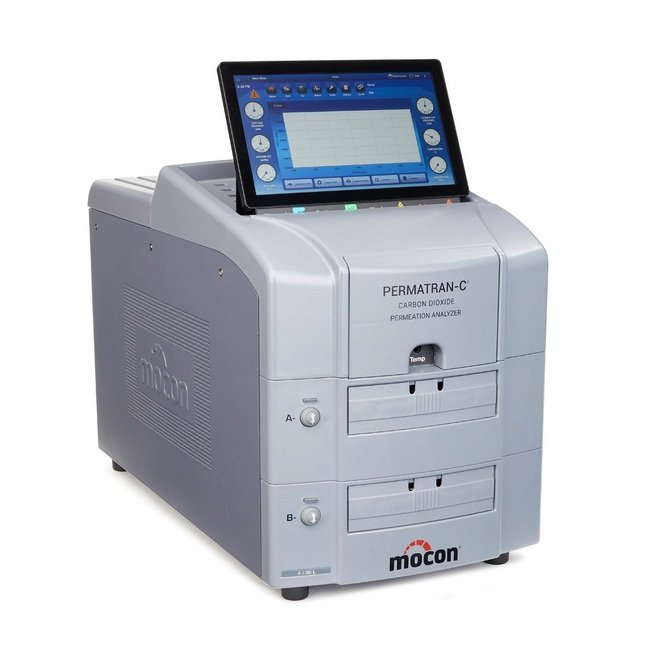

The Permatran-C Model 4/30 CO2 Permeation Analyzer is a trusted instrument for measuring Carbon Dioxide Transmission Rate (CO2TR) in low- to high-level barriers and packages. Designed for versatility, it offers quick and accurate results for various films, bottles, and closures, supporting research, development, and quality control. With advanced features like modulated infrared (IR) sensor technology, automated controls, and customizable test cartridges, this analyzer ensures precise testing and reliable performance. Compliant with ASTM, DIN, ISO standards, and industry certifications, it meets the stringent requirements of institutional and government procurement.

Product Specifications

Accessories Accessories

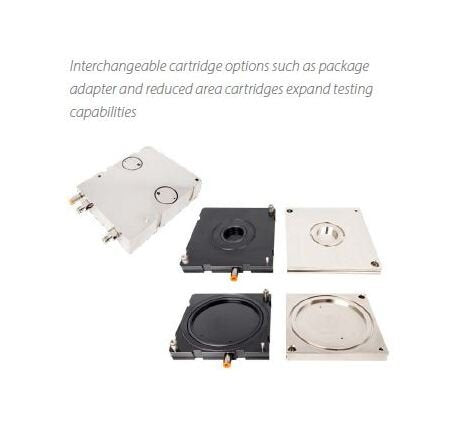

Reduced area cartridgeEdge effect cartridgeBlister testing cartridgePackage testing adapterCustom engineered test cartridgesPermWare™ software for data collection and remote monitoring
Advanced Control System Advanced Control System

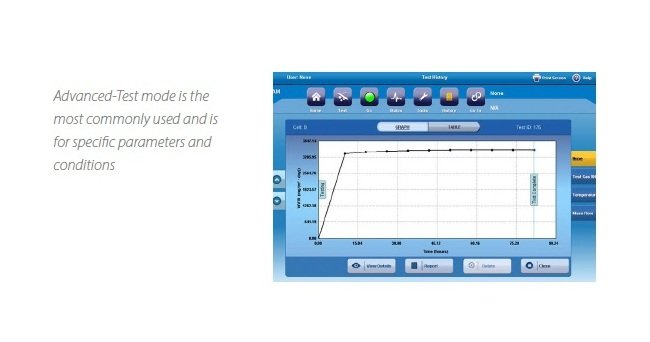

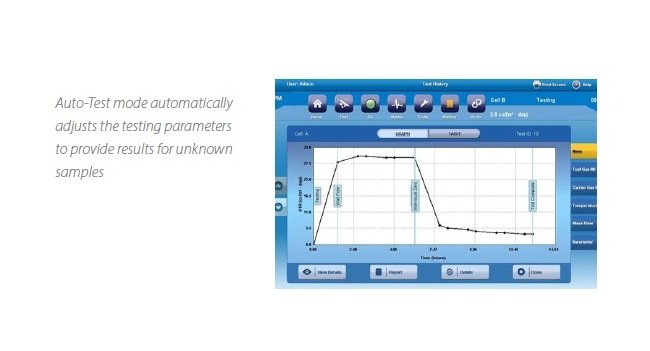

The user friendly WinPerm 2 control system features fully automated testing including temperature, gas flow and sensor sample time. Final test reports are automatically saved and can be set to automatically print and export to permanent storage directories. The analyzer is compatible with PermWare™, your complete permeation laboratory data management system. The test mode options make testing known or unknown samples easy and repeatable. A single button push initiates a fully automated test following pre-set stored parameters, reducing operator variability. The intuitive color touch screen is easy to learn and use while the automated testing provides consistent results and fewer potential errors.
Control Features Control Features

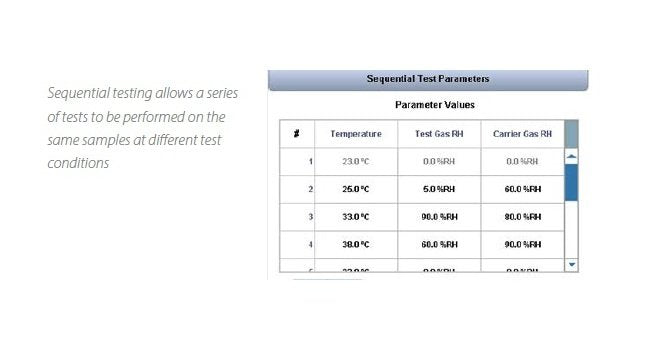

Fully automated flow and temp control throughout testsAutomatic test method development and recommendationsProgrammable multi-test sequencingBuilt-in sensor protection
Dimensions And Weight Depth
23 in | 58.0 cm
Dimensions And Weight Height
15.5 in | 39.4 cm
Dimensions And Weight Weight
95 lb | 42.1 kg
Dimensions And Weight Width
12 in | 30.4 cm
Industry Standard In Permeation Testing Industry Standard In Per
The Permatran-C® 4/30 features our exclusive test cell drawer design with two horizontal removable easy to- load cartridges improve test repeatability. A single button opens and closes the drawers, and the cartridge is automatically clamped in place with consistent and even force on any sample thickness. This approach provides greater test repeatability than manual or cam clamping methods. All test cartridges incorporate AMETEK® MOCON®'s exclusive TruSeal® design that utilizes two seals and flushes gas between them to prevent ambient ingress into the test area. This reduces background levels, improves repeatability, and reduces the need to run individual zero.
Modulated Infrared Ir Sensor High Performance Modulated Infrared
Using a patented modulated infrared (IR) technology, this sensor provides accurate and repeatable results. It has a very long life and is the only sensor system to meet the ASTM 2476 standard.
Modulated Infrared Ir Sensor Modulated Infrared Ir Sensor
Short exam times reduce overall test time to increase throughputLong life modulated IR sensorAccurate and repeatable resultsMost trusted modulated IR sensor that fully complies with ASTM 2476
Performance Specifications Carrier Gas
Nitrogen (99.7% N2 or better)
Performance Specifications Controlled Relative Humidity Rh Testi
0 %
Performance Specifications Maximum Film Thickness
0 to 3 mm | 0 to 120 mil
Performance Specifications Test Gas
Carbon Dioxide (99.7% CO2 or better)
Performance Specifications Test Temperature Range
10 to 40 ºC
Performance Specifications Test Temperature Tolerance
0.2 ºC
Removable Cartridges Removable Cartridges
Easy sample prep on the benchtopOne button release and loadingPneumatic clamping provides more repeatable resultsInterchangeable cartridge options
Specifications Barrier Level
Low to High
Specifications Conformance Standards
Canadian Standards Association (CSA) Safety Compliance | European Conformity (CE) | Underwriters Laboratories (UL)
Specifications Connectivity
2 Universal Serial Bus (USB) Ports | Ethernet Port | Optional PERM-NET Lite™ for Remote Monitoring
Specifications Detection Range
0.5 to 8000 cm³/(m²·day)
Specifications Industry Standards
American Society for Testing and Materials (ASTM) 2476 | German Institute for Standardization (DIN) 53380-4 | International Organization for Standardization (ISO) 15105-2
Technical Specifications Repeatability
0.25 cm³/(m²·day) | 2 %
Technical Specifications Resolution
0.0001 cm³/(m²·day)
Technical Specifications Test Range For Normal Model 50 Cm
0.5 to 8000 cm³/(m²·day) | 0.03 to 516 cm³/(100 m²·day) | 0.0025 to 40 cm³/(pkg·day)
Technical Specifications Test Range For Reduced Area Cartridge 5
4.5 to 71000 cm³/(m²·day) | 0.29 to 4600 cm³/(100 m²·day)
Touchscreen Interface Touchscreen Interface
Intuitive automated operation requires less trainingBuilt in multi-level user management and data securityEvent log & trouble shooting guideSave on valuable lab space by eliminating need for PC
Truseal Truseal
Gas flushing of sample mounting seal protects chamber integrityLowers background levels reducing need to run individual zeroShortened testing time increases throughputMore repeatable results
Versatility And Efficiency Versatility And Efficiency
The Permatran-C® 4/30 analyzer can test the Carbon Dioxide Transmission Rate (CO2TR) from low to high barriers on films, packages and bottles. Unlike manometric or Zahm-Nagel methods that require long periods of time to provide results, AMETEK® MOCON®'s patented modulated IR sensor system allowing the C 4/30 to provide accurate results in much less time.With the optional adapter cartridge it can also test additional applications such as complete or partial packages, flexible or rigid containers, bottles and/or closures, seals in the form of O-rings or gasketsThe interchangeable cartridges also work with other Next Generation AMETEK® MOCON® permeation analyzers. These purpose-built cartridges increase accuracy, extend the range, or make it possible to test unique or difficult samples.
Warranty Warranty
Full 100% parts and workmanship warranty for 12 monthsExclusive 4-year warranty on the modulated IR sensor
