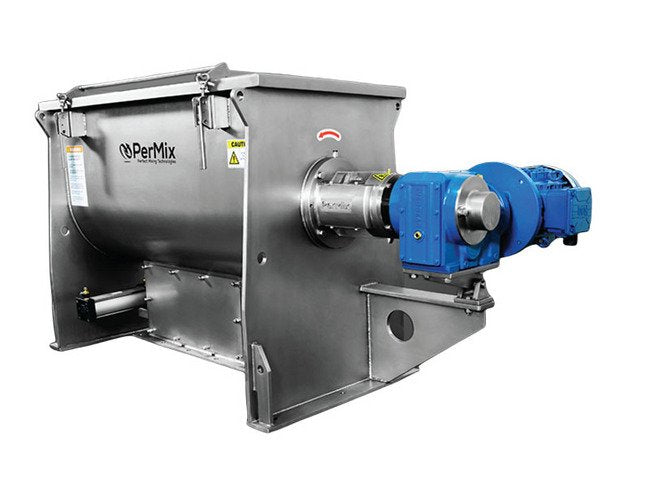

The PerMix PRB 100 Liter Ribbon Mixer is a high-performance blending machine designed for efficient mixing of dry powders, granules, and viscous pastes. With a maximum mixing ratio of 1:500,000, this ribbon mixer ensures precise blending with a capacity ranging from 40 to 60 liters. It features a dual-ribbon agitator in a U-shaped trough, offering exceptional homogeneity in mixing. Optional features like different ribbon types, varied construction materials, customizable feeding and discharging methods, and the ability for continuous operation make this mixer versatile and adaptable to diverse applications in bio, chemical, food, pharmaceutical, and more.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Applications
Bio | Chemical | Food | Health and Beauty | Nutraceutical | Pharmaceutical
How It Works How It Works

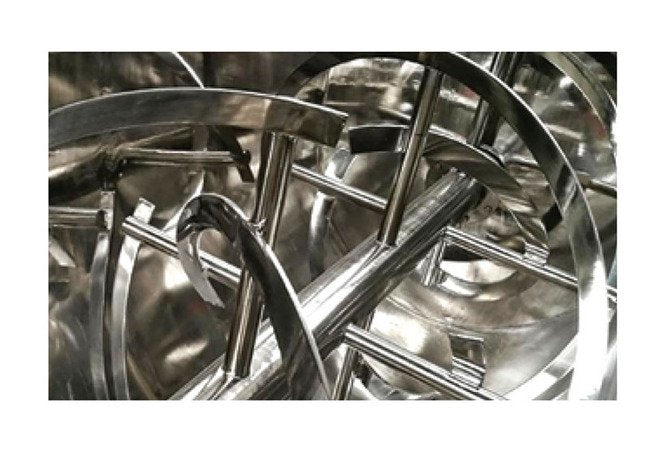

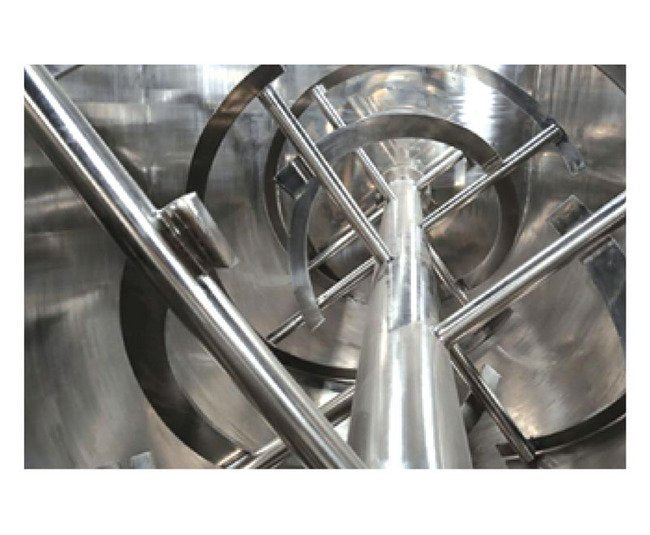

PerMix PRB Ribbon Mixer consists of one electrical motor, one gearbox, and a shaft with double ribbons located in a U-shaped vessel. The external & inner ribbons are designed in such a way that the powder materials are pushed to move from center to the two ends of vessel, and meanwhile from ends to the center; besides, the powder materials are lifted up along the ribbon edges but then drop due to gravity. In such a three-dimensional way, the total powder can be mixed fast in the vessel. It asks for a short mixing time and relatively low power consumption.The shaft is sealed with stuffing box with multiple PTFE packings (sometimes with a lantern ring for air purge) at both ends. Materials are loaded from top side, and a flush fitting discharge valve is located at the bottom side in the center. The discharge height can be adjusted as per requirement, so that material gets discharged into the container below it without floating dust.
Note Note
All specifications and illustrations are as accurate as is reasonably possible, but they are not binding.PerMix reserves the right to modify the design without notice.
Optional Features Construction Material
We are able to offer Ribbon Mixers with contact part to be built by Carbon steel, SS304, SS316/316L, Titanium, Duplex stainless steel, Hastelloy, etc. For abrasive materials we offer hardened steel as the contact part. Also we produce Ribbon Mixers all by stainless steel in order to meet the high hygienic requirement.
Optional Features Continuous Operation
We can supply machines for continuous work when a large capacity per hour is needed for the same material.
Optional Features Customized Feeding And Discharging
A variety of feeding & discharging methods can be selected by the customers. For feeding of materials, bag dump station can be mounted on the top of the U-shaped trough. Safety grid can be installed to prevent the possible injury to the worker. For discharge of the products, manual, pneumatic, or motorized operated valves can be selected according to the customers' preference. They are prepared to fit into any existing production line easily.
Optional Features Drive System
Drive system by geared motor, cycloidal reducer, worm reducer, belt or chain transmission, etc.
Optional Features Extended Height Bases
Height of our Ribbon Mixer can be defined according to customer's condition.
Optional Features External Body By Bead Blasted Finish
For full stainless steel mixers, external parts can be bead blasted.
Optional Features Heatingcooling Jacket
Jacketed trough for heating/cooling operation.
Optional Features Ribbon 3 Types Available
We offer different types of mixing ribbon for different applications. Standard ribbon is used to provide general blending purpose, with center discharge; Interrupted ribbon is applied for viscous material; Continuous ribbon is used for continuous operation with one side feeding and the other side discharging.
Optional Features Spray Nozzle
Liquid can be added into the powder by spray nozzles on the top.
Optional Features Vacuum Drying And Deaerating
The mixer can be designed for vacuum drying & deaerating for special applications.

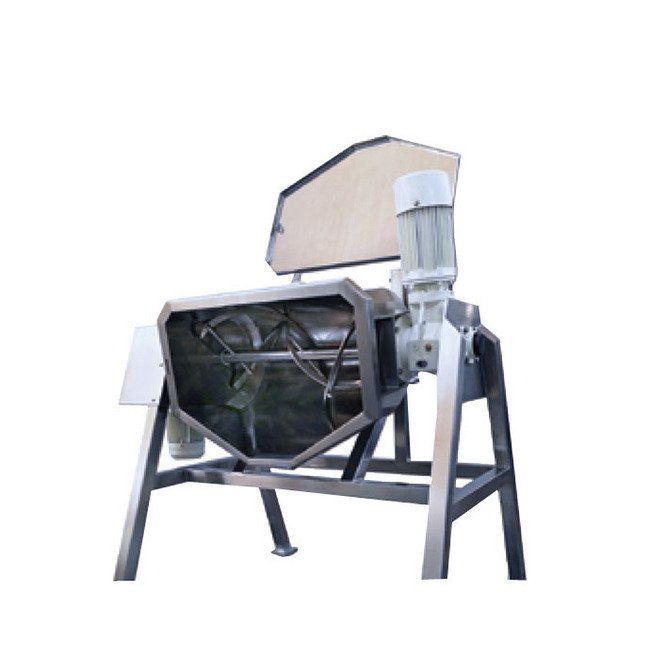

Special Design Of Motorized Tilting Special Design Of Motorized
PerMix has designed a special feature for food application (salad mixing) with motorized tilting for discharge. The machine is built in full stainless steel construction for wash cleaning, a top lid with counterweight for easy manual opening.
Specifications Height
613 mm
Specifications Length
1250 mm
Specifications Outlet Size
80 x 80 mm
Specifications Power
2.2 kW
Specifications Speed
80 rpm
Specifications Total Capacity
100 L
Specifications Useful Capacity
40 to 60 L
Specifications Weight
250 kg
Specifications Width
840 mm
