PerMix 300L Ribbon Mixer
PerMix 300L Ribbon Mixer
SKU:PRB-799f32
Efficiently blend dry powders, granules, and pastes with the PerMix 300L Ribbon Mixer. Achieve precise homogeneity and consistent results in industrial mixing applications.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
PerMix 300L Ribbon Mixer
$8,999.99
Quantity: 1
Claim Your Seller Account
PerMix 300L Ribbon Mixer
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

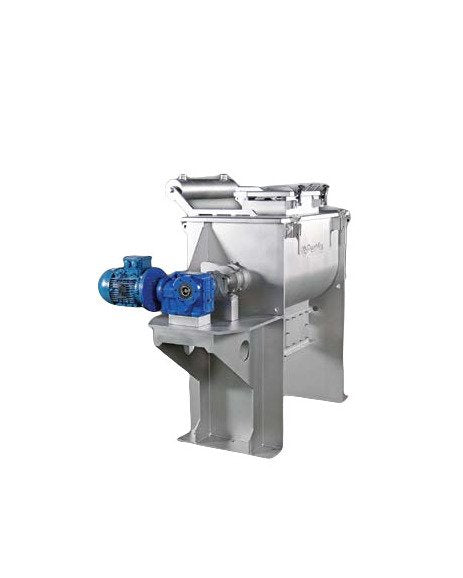

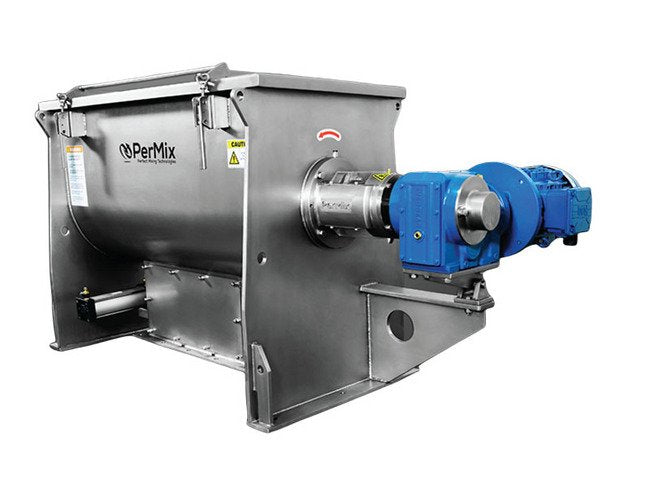

The PerMix PRB 300 Liter Ribbon Mixer is a high-efficiency blending solution designed for the precise mixing of dry powders, granules, and viscous pastes. With a maximum mixing ratio of 1:500,000, this mixer ensures unparalleled homogeneity in batches as large as 500kg. Offering customizable features like multiple ribbon types, various construction materials, and specialized drive systems, the PerMix Ribbon Mixer is versatile and adaptable to diverse industrial needs. Its innovative design, including a jacketed trough for heating/cooling, ensures optimal performance and consistent results across Bio, Chemical, Food, Health and Beauty, Nutraceutical, and Pharmaceutical applications.
Product Specifications
Applications Applications
Bio | Chemical | Food | Health and Beauty | Nutraceutical | Pharmaceutical
How It Works How It Works
PerMix PRB Ribbon Mixer consists of one electrical motor, one gearbox, and a shaft with double ribbons located in a U-shaped vessel. The external & inner ribbons are designed in such a way that the powder materials are pushed to move from center to the two ends of vessel, and meanwhile from ends to the center; besides, the powder materials are lifted up along the ribbon edges but then drop due to gravity. In such a three-dimensional way, the total powder can be mixed fast in the vessel. It asks for a short mixing time and relatively low power consumption.The shaft is sealed with stuffing box with multiple PTFE packings (sometimes with a lantern ring for air purge) at both ends. Materials are loaded from top side, and a flush fitting discharge valve is located at the bottom side in the center. The discharge height can be adjusted as per requirement, so that material gets discharged into the container below it without floating dust.
Note Note
All specifications and illustrations are as accurate as is reasonably possible, but they are not binding.PerMix reserves the right to modify the design without notice.
Optional Features Construction Material
We are able to offer Ribbon Mixers with contact part to be built by Carbon steel, SS304, SS316/316L, Titanium, Duplex stainless steel, Hastelloy, etc. For abrasive materials we offer hardened steel as the contact part. Also we produce Ribbon Mixers all by stainless steel in order to meet the high hygienic requirement.
Optional Features Continuous Operation
We can supply machines for continuous work when a large capacity per hour is needed for the same material.
Optional Features Customized Feeding And Discharging
A variety of feeding & discharging methods can be selected by the customers. For feeding of materials, bag dump station can be mounted on the top of the U-shaped trough. Safety grid can be installed to prevent the possible injury to the worker. For discharge of the products, manual, pneumatic, or motorized operated valves can be selected according to the customers' preference. They are prepared to fit into any existing production line easily.
Optional Features Drive System
Drive system by geared motor, cycloidal reducer, worm reducer, belt or chain transmission, etc.
Optional Features Extended Height Bases
Height of our Ribbon Mixer can be defined according to customer's condition.
Optional Features External Body By Bead Blasted Finish
For full stainless steel mixers, external parts can be bead blasted.
Optional Features Heatingcooling Jacket
Jacketed trough for heating/cooling operation.

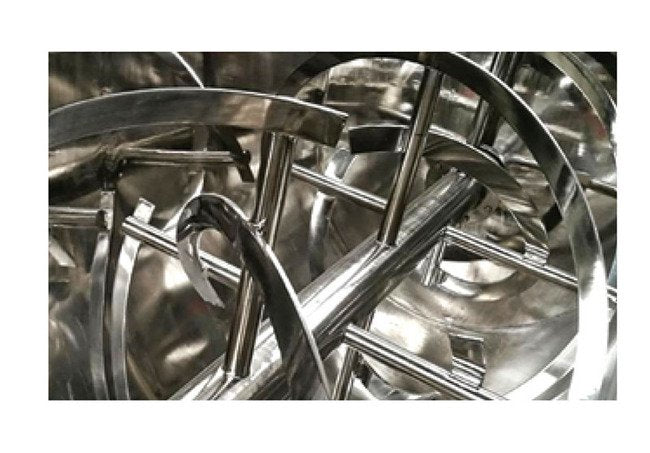

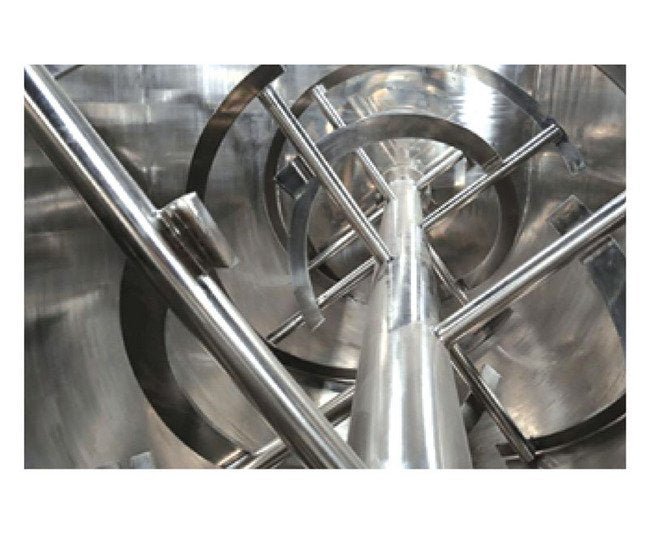

Optional Features Ribbon 3 Types Available
We offer different types of mixing ribbon for different applications. Standard ribbon is used to provide general blending purpose, with center discharge; Interrupted ribbon is applied for viscous material; Continuous ribbon is used for continuous operation with one side feeding and the other side discharging.
Optional Features Spray Nozzle
Liquid can be added into the powder by spray nozzles on the top.
Optional Features Vacuum Drying And Deaerating
The mixer can be designed for vacuum drying & deaerating for special applications.

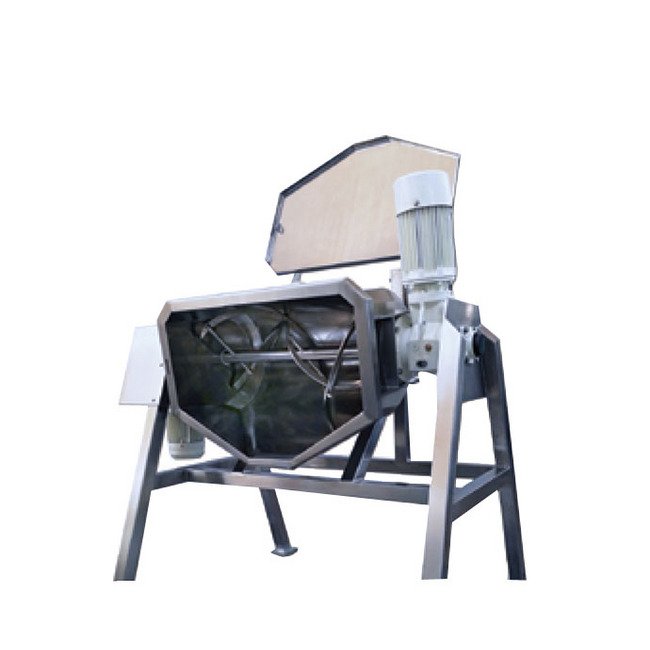

Special Design Of Motorized Tilting Special Design Of Motorized
PerMix has designed a special feature for food application (salad mixing) with motorized tilting for discharge. The machine is built in full stainless steel construction for wash cleaning, a top lid with counterweight for easy manual opening.
Specifications Height
1015 mm
Specifications Length
1630 mm
Specifications Outlet Size
250 x 80 mm
Specifications Power
4 kW
Specifications Speed
72 rpm
Specifications Total Capacity
300 L
Specifications Useful Capacity
120 to 180 L
Specifications Weight
600 kg
Specifications Width
1005 mm
