PerMix 50L Vertical Ribbon Mixer
PerMix 50L Vertical Ribbon Mixer
SKU:PVR-01f882
Efficient and versatile 50L Vertical Ribbon Mixer for gentle batch mixing of powders, granules, and pellets.
Regular price
$5,999.00
Regular price
Sale price
$5,999.00
Unit price
per
Initiate Order
PerMix 50L Vertical Ribbon Mixer
$5,999.00
Quantity: 1
Claim Your Seller Account
PerMix 50L Vertical Ribbon Mixer
$5,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PerMix 50L Vertical Ribbon Mixer combines efficiency and versatility for batch mixing of powders, granules, and pellets. With a compact design featuring a cone vessel, tapered ribbon, and screw mechanism, it ensures gentle mixing without heat generation. Ideal for sensitive materials, it offers full discharge with minimal residue and high heat transfer rates. Customizable options include various construction materials, feeding & discharging methods, heating/cooling jackets, and vacuum drying abilities. Suitable for industries like bio, chemical, food, and pharmaceutical.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
PerMix Vertical Ribbon Mixers are able to give perfect result of mixing due to the design of an outer spiral type mixing element with an inner screw, rotating together in a conical shape trough, which provides a multidimensional movement of the materials, and a complete discharge of all the mixed material without any residue. The Vertical Ribbon Mixers are also featured with no contamination to the product, due to the fact that the shaft sealing is above the working area, thus no contact with the product.
Advantages Advantages
Medium level of accuracy with minor component ratio to be 1:100,000Gentle mixing for sensitive materials without generation of heatLow minimal quantity requiredFull discharge with minimal residueEasy to clean in either dry or wet wayHigh heat transfer rate, ideal for heating or cooling process of the powdersChopper can be installed for intensive mixing and lump breaking
Applications Applications
Bio | Chemical | Food | Health and Beauty | Nutraceutical | Pharmaceutical
How It Works How It Works

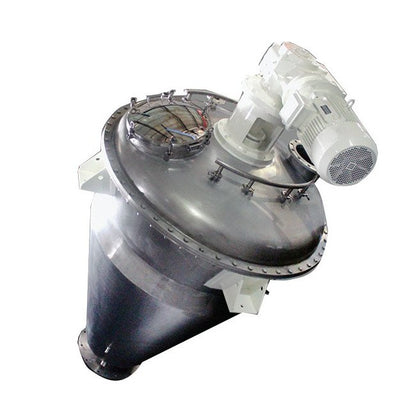

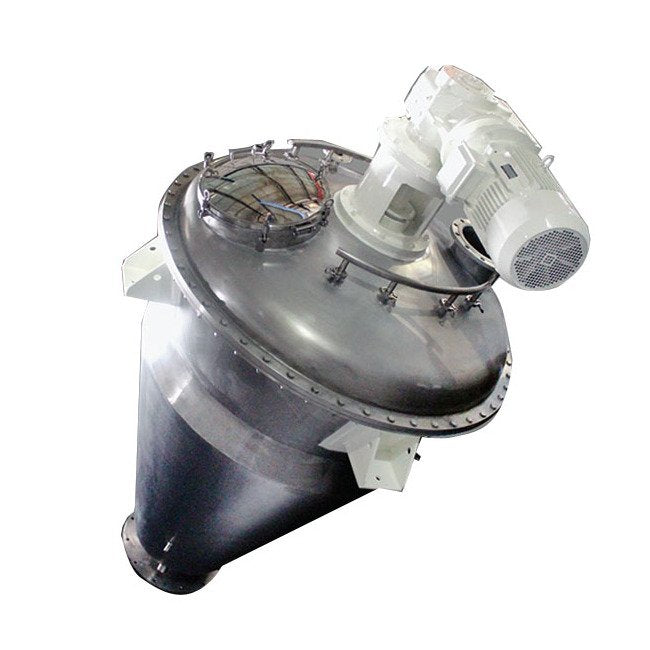

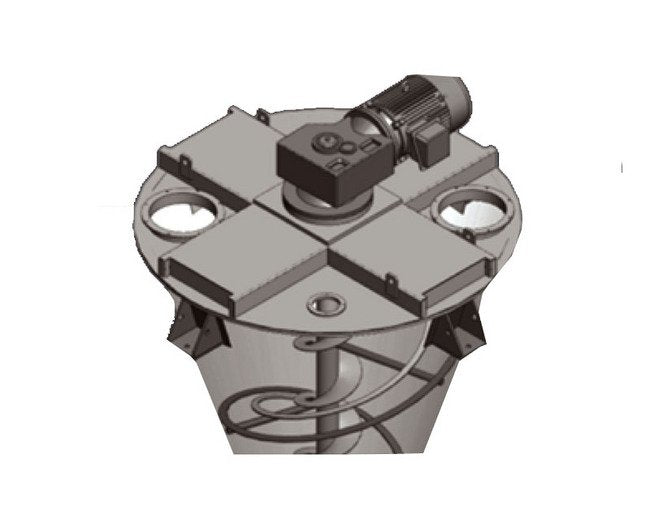

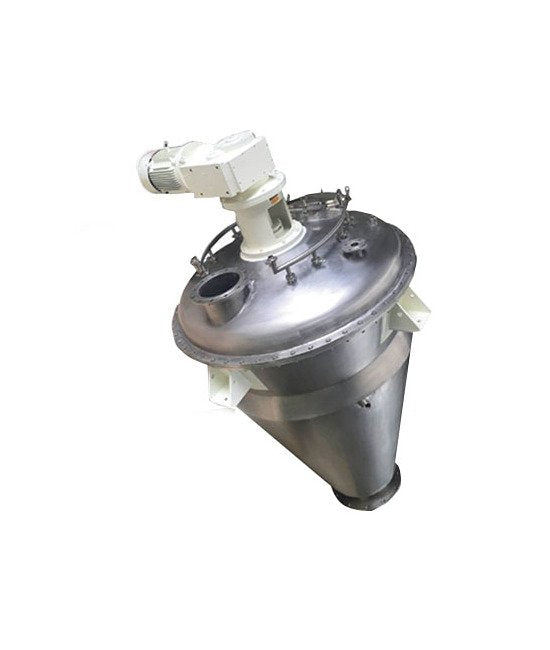

The construction of PerMix PVR series Vertical Ribbon Mixer is very compact: it consists of a cone vessel with the drive unit on the top and discharge valve at the bottom. In the cone vessel, there are a central tapered ribbon with very small clearance between its edge and the wall, and additionally a screw mounted on the central shaft.The ribbon and the screw move the materials upward from the bottom to the top, where the materials then drop by gravity into the center. During this continuous operation, material particles and heat are exchanged quickly which leads to a homogeneous product.Besides, the material particles are mixed with minimal mechanical and thermal stress, which makes this type of mixer a good solution for fragile and heat sensitive product.
Note Note
Customized sizes available as per request.All specifications and illustrations are as accurate as is reasonably possible, but they are not binding.PerMix reserves the right to modify the design without notice.
Options Construction Material And Finish
Our mixers can be built in Carbon steel, SS304, SS316L, Titanium, Hastelloy, etc. Finish of stainless steel can be mirror polished or bead blasted.
Options Feeding And Discharging
A variety of feeding & discharging methods can be selected by the customers.
Options Heatingcooling Jacket
Jacketed trough for heating/cooling operation.
Options Mixing Tool
We offer several types of mixing tool for different sizes and applications.
Options Spray Nozzle
Liquid can be added into the powder by spray nozzles on the top.
Options Vacuum Drying And Deaerating
The PVR mixer can be designed for vacuum drying & deaerating or for inner pressure working for special applications.
Specifications Diameter
600 mm
Specifications Inlet Size
90 mm
Specifications Outlet Size
150 mm
Specifications Power
0.75 kW
Specifications Total Capacity
50 L
Specifications Total Height
1200 mm
Specifications Weight
120 kg
Specifications Working Capacity
35 L
