PerMix PAM 12000L Vertical Mixer
PerMix PAM 12000L Vertical Mixer
SKU:PAM-126f17
Innovative PerMix PAM 12000L Vertical Mixer for precise and efficient batch mixing in food, cosmetics, and pharmaceutical industries.
Regular price
$28,999.99
Regular price
Sale price
$28,999.99
Unit price
per
Initiate Order
PerMix PAM 12000L Vertical Mixer
$28,999.99
Quantity: 1
Claim Your Seller Account
PerMix PAM 12000L Vertical Mixer
$28,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PerMix PAM 12000L Vertical Mixer is a cutting-edge blending solution that offers precise mixing homogeneity, complete discharge, and robust design for batch mixing applications. With a total capacity of 12000 liters and a working capacity of 8400 liters, this versatile mixer is ideal for industries like food, cosmetics, pharmaceuticals, and more. Featuring options for various construction materials, feeding methods, and heating/cooling operations, the PAM mixer ensures efficient and hygienic mixing processes with minimal residue.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Advantages Advantages
High level of accuracy with minor component ratio to be 1:1,000,000Gentle mixing for sensitive materials without generation of heatChopper can be installed for intensive mixing and lump breakingLow minimal quantity requiredFull discharge with minimal residueEasy to clean in either dry or wet wayHigh heat transfer rate, ideal for heating or cooling process of the powders
Applications Applications
Bio | Chemical | Food | Health and Beauty | Nutraceutical | Pharmaceutical
How It Works How It Works

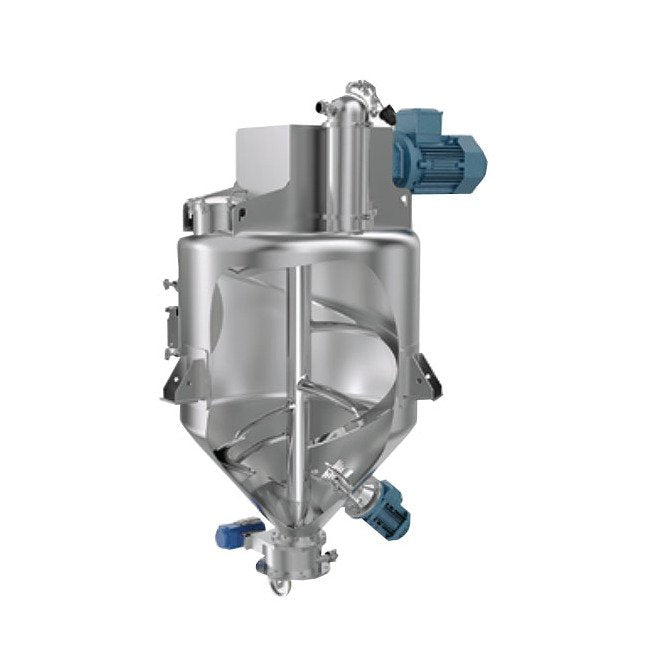

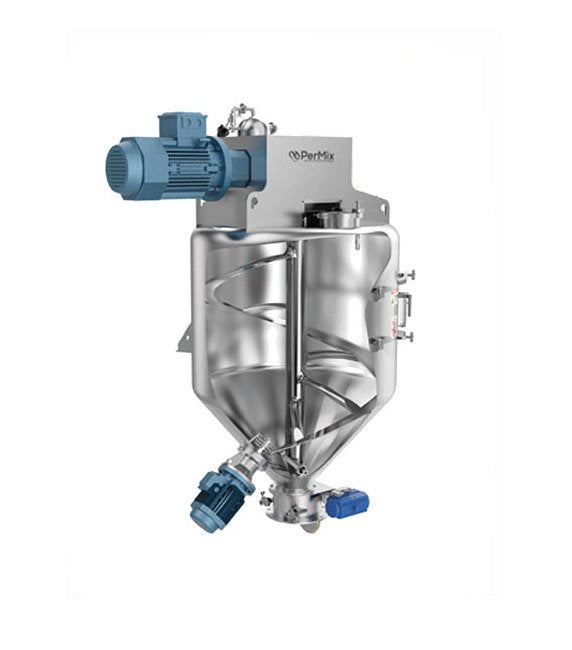

PerMix Vertical Mixers are designed with a single shaft with only one ribbon, but is able to provide a multi-dimensional movement of the materials. They are with a cylindrical body with conical bottom, but sometimes can be with flat bottom and scrapers to assist the discharge.There is a flush-fitting side mounted access door for inspection and cleaning purpose. A flush-fitting plug valve is mounted at the bottom for product discharge.The ribbon inside the mixing vessel moves the materials upward from the bottom to the top, where the materials then drop by gravity into the center. This generates a good counter flow of the product particles. The ribbon design ensures that the linear speed of the particles are different from here to there, which results in a turbulence flow field. During this continuous operation, material particles and heat are exchanged quickly which leads to a homogeneous product.Besides, the material particles are mixed with minimal mechanical and thermal stress, which makes this type of mixer a good solution for fragile and heat sensitive product.
Note Note
All specifications and illustrations are as accurate as is reasonably possible, but they are not binding.PerMix reserves the right to modify the design without notice.
Options Construction Material And Finish
Our mixers can be built in Carbon steel, SS304, SS316L, Titanium, Hastelloy, etc. Finish of stainless steel can be mirror polished or bead blasted.
Options Feeding And Discharging
A variety of feeding & discharging methods can be selected by the customers.
Options Heatingcooling Jacket
Jacketed trough for heating/cooling operation.
Options Spray Nozzle
Liquid can be added into the powder by spray nozzles on the top.
Options Vacuum Drying And Deaerating
The PAM mixer can be designed for vacuum drying & deaerating or for inner pressure working for special applications.
Specifications Power
50 to 180 kW
Specifications Shaft Speed
24 rpm
Specifications Total Capacity
12000 L
Specifications Working Capacity
8400 L
