PerMix PAM 5000L Vertical Mixer
PerMix PAM 5000L Vertical Mixer
SKU:PAM-dc63a6
Innovative and efficient PerMix PAM 5000L Vertical Mixer for precise and hygienic batch mixing in food, cosmetics, and pharmaceutical industries.
Regular price
$27,999.00
Regular price
Sale price
$27,999.00
Unit price
per
Initiate Order
PerMix PAM 5000L Vertical Mixer
$27,999.00
Quantity: 1
Claim Your Seller Account
PerMix PAM 5000L Vertical Mixer
$27,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PerMix PAM 5000L Vertical Mixer offers precise mixing homogeneity, hygienic design, full discharge, and robust construction. With a working capacity of 3500L and power ranging from 34 to 120 kW, this mixer is ideal for batch mixing of powders, granules, and pellets in industries like food, cosmetics, and pharmaceuticals. Its innovative design ensures minimal residue, efficient heating/cooling operations, and the option for vacuum drying & deaerating. The PerMix PAM 5000L ensures gentle mixing for heat-sensitive materials and uniform product quality with its unique ribbon design.
Product Specifications
Advantages Advantages
High level of accuracy with minor component ratio to be 1:1,000,000Gentle mixing for sensitive materials without generation of heatChopper can be installed for intensive mixing and lump breakingLow minimal quantity requiredFull discharge with minimal residueEasy to clean in either dry or wet wayHigh heat transfer rate, ideal for heating or cooling process of the powders
Applications Applications
Bio | Chemical | Food | Health and Beauty | Nutraceutical | Pharmaceutical
How It Works How It Works

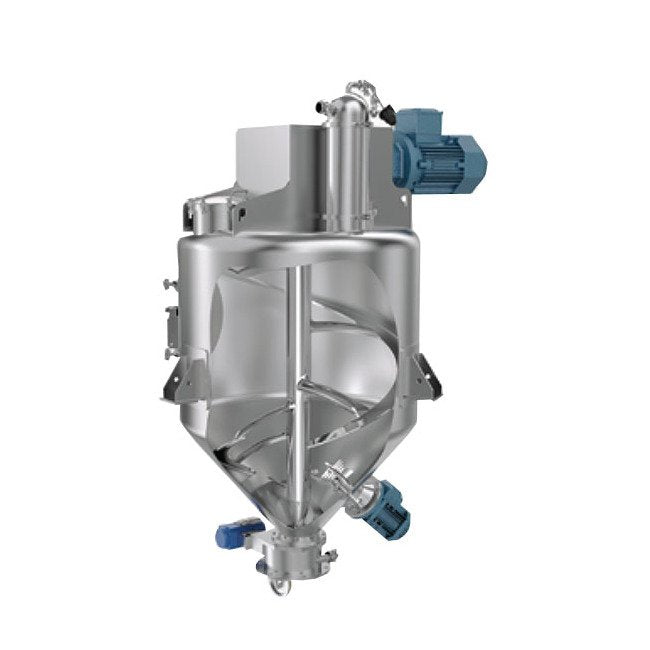

PerMix Vertical Mixers are designed with a single shaft with only one ribbon, but is able to provide a multi-dimensional movement of the materials. They are with a cylindrical body with conical bottom, but sometimes can be with flat bottom and scrapers to assist the discharge.There is a flush-fitting side mounted access door for inspection and cleaning purpose. A flush-fitting plug valve is mounted at the bottom for product discharge.The ribbon inside the mixing vessel moves the materials upward from the bottom to the top, where the materials then drop by gravity into the center. This generates a good counter flow of the product particles. The ribbon design ensures that the linear speed of the particles are different from here to there, which results in a turbulence flow field. During this continuous operation, material particles and heat are exchanged quickly which leads to a homogeneous product.Besides, the material particles are mixed with minimal mechanical and thermal stress, which makes this type of mixer a good solution for fragile and heat sensitive product.
Note Note
All specifications and illustrations are as accurate as is reasonably possible, but they are not binding.PerMix reserves the right to modify the design without notice.
Options Construction Material And Finish
Our mixers can be built in Carbon steel, SS304, SS316L, Titanium, Hastelloy, etc. Finish of stainless steel can be mirror polished or bead blasted.
Options Feeding And Discharging
A variety of feeding & discharging methods can be selected by the customers.
Options Heatingcooling Jacket
Jacketed trough for heating/cooling operation.
Options Spray Nozzle
Liquid can be added into the powder by spray nozzles on the top.
Options Vacuum Drying And Deaerating
The PAM mixer can be designed for vacuum drying & deaerating or for inner pressure working for special applications.
Specifications Power
34 to 120 kW
Specifications Shaft Speed
30 rpm
Specifications Total Capacity
5000 L
Specifications Working Capacity
3500 L
