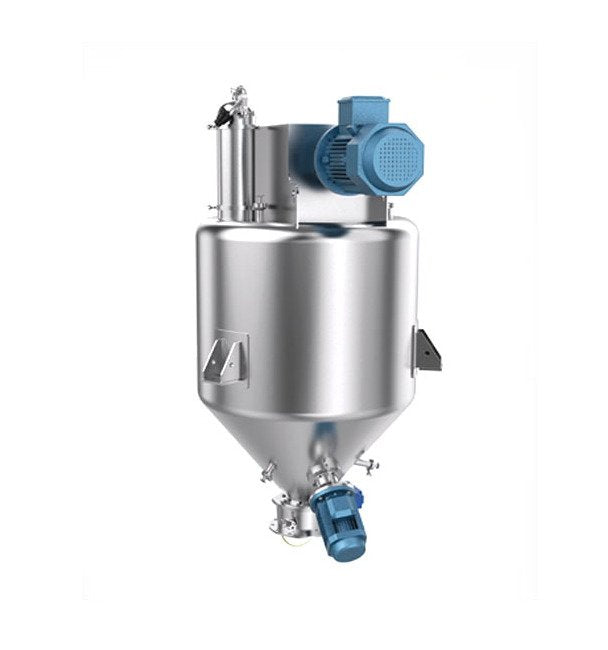

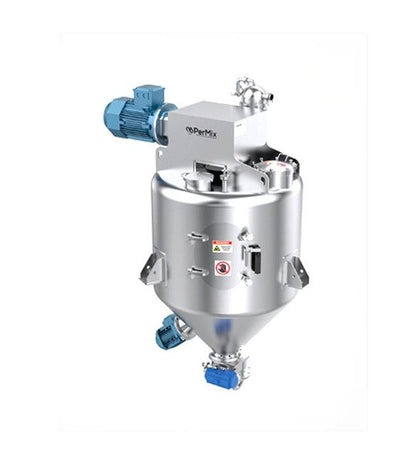

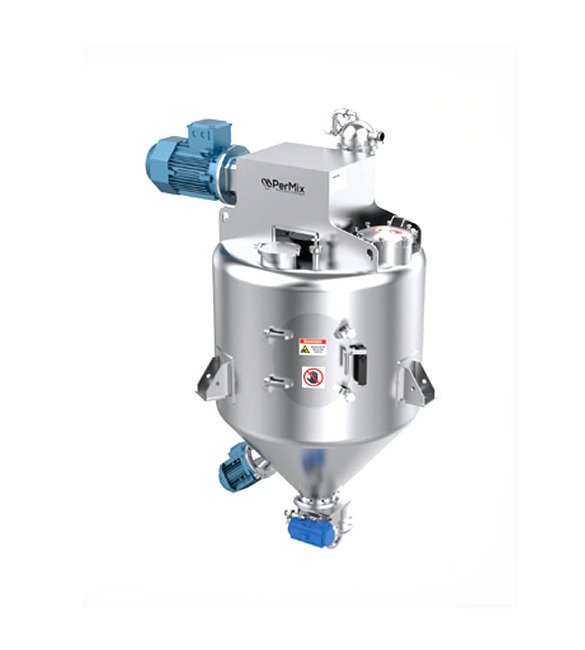

The PerMix PAM 750 Liter Vertical Mixer is a cutting-edge blending solution designed for precision mixing of powders, granules, and pellets. With a total capacity of 750L and a working capacity of 525L, this mixer offers efficient homogeneity, hygienic design, and complete discharge. Its robust construction, versatile material options, and innovative features make it ideal for industries such as food, pharmaceuticals, and cosmetics.
Product Specifications
Advantages Advantages
High level of accuracy with minor component ratio to be 1:1,000,000Gentle mixing for sensitive materials without generation of heatChopper can be installed for intensive mixing and lump breakingLow minimal quantity requiredFull discharge with minimal residueEasy to clean in either dry or wet wayHigh heat transfer rate, ideal for heating or cooling process of the powders
Applications Applications
Bio | Chemical | Food | Health and Beauty | Nutraceutical | Pharmaceutical
How It Works How It Works

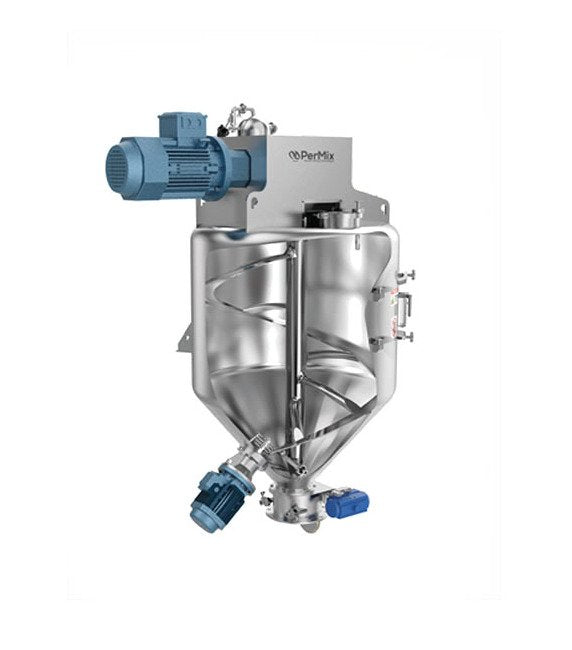

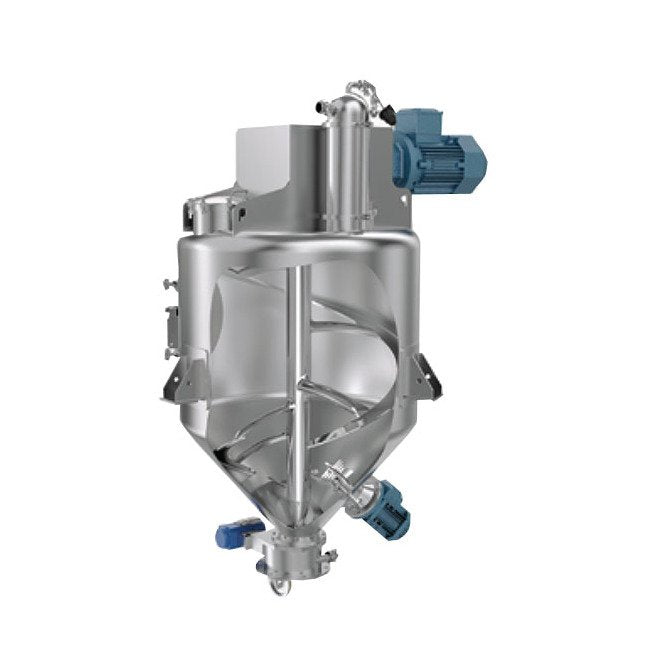

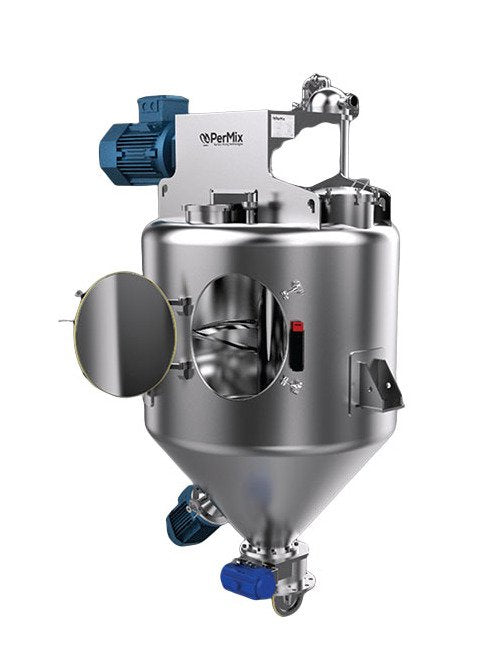

PerMix Vertical Mixers are designed with a single shaft with only one ribbon, but is able to provide a multi-dimensional movement of the materials. They are with a cylindrical body with conical bottom, but sometimes can be with flat bottom and scrapers to assist the discharge.There is a flush-fitting side mounted access door for inspection and cleaning purpose. A flush-fitting plug valve is mounted at the bottom for product discharge.The ribbon inside the mixing vessel moves the materials upward from the bottom to the top, where the materials then drop by gravity into the center. This generates a good counter flow of the product particles. The ribbon design ensures that the linear speed of the particles are different from here to there, which results in a turbulence flow field. During this continuous operation, material particles and heat are exchanged quickly which leads to a homogeneous product.Besides, the material particles are mixed with minimal mechanical and thermal stress, which makes this type of mixer a good solution for fragile and heat sensitive product.
Note Note
All specifications and illustrations are as accurate as is reasonably possible, but they are not binding.PerMix reserves the right to modify the design without notice.
Options Construction Material And Finish
Our mixers can be built in Carbon steel, SS304, SS316L, Titanium, Hastelloy, etc. Finish of stainless steel can be mirror polished or bead blasted.
Options Feeding And Discharging
A variety of feeding & discharging methods can be selected by the customers.
Options Heatingcooling Jacket
Jacketed trough for heating/cooling operation.
Options Spray Nozzle
Liquid can be added into the powder by spray nozzles on the top.
Options Vacuum Drying And Deaerating
The PAM mixer can be designed for vacuum drying & deaerating or for inner pressure working for special applications.
Specifications Power
8 to 27 kW
Specifications Shaft Speed
61 rpm
Specifications Total Capacity
750 L
Specifications Working Capacity
525 L
