PerMix PCH 20000 Shear Pump
PerMix PCH 20000 Shear Pump
SKU:PCH-8f5bca
Achieve efficient and hygienic mixing with the PerMix PCH 20000 Shear Pump. Ideal for dairy, food, and pharmaceutical industries.
Regular price
$4,599.99
Regular price
Sale price
$4,599.99
Unit price
per
Initiate Order
PerMix PCH 20000 Shear Pump
$4,599.99
Quantity: 1
Claim Your Seller Account
PerMix PCH 20000 Shear Pump
$4,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PerMix PCH 20000 Shear Pump offers the perfect blend of pumping efficiency and shearing energy, making it ideal for hygienic applications in the dairy, food, cosmetics, and pharmaceutical industries. With a maximum liquid capacity of 20000 L/h and a powder capacity of 18 kg/min, this shear pump features a compact stainless steel design, easy assembly, free flow powder induction, and interchangeable stator rotor options. It's designed for quick cleaning with a CIP system and can be converted into a Powder Liquid Mixer with optional accessories.
Product Specifications
Additional Information Additional Information
PerMix Shear Pump can be easily cleaned with CIP (Clean In Place) system to save time and labor.By installing an optional hopper or a feeding table, PerMix Shear Pump is converted to a Powder Liquid Mixer, to be able to dissolve/disperse free flowing powder material into light liquid in a quite fast and efficient way.
Applications Applications
Some typical applications of PCH Shear Pumps:Food & BeverageButter, Canned foods, Cheese, Condiments, Dairy, Dressings, Flavorings, Ice cream, Juices, Ketchup, Salads, Syrup, YogurtPharmaceuticalsCough syrup, Emulsion, Medicine, Ointment, Pharmaceutical, Vaccine, Veterinary drugCosmeticsCreams, Detergent, Gels, Hair conditioner, Lotions, Shampoo, Tooth paste
Features And Options Features And Options

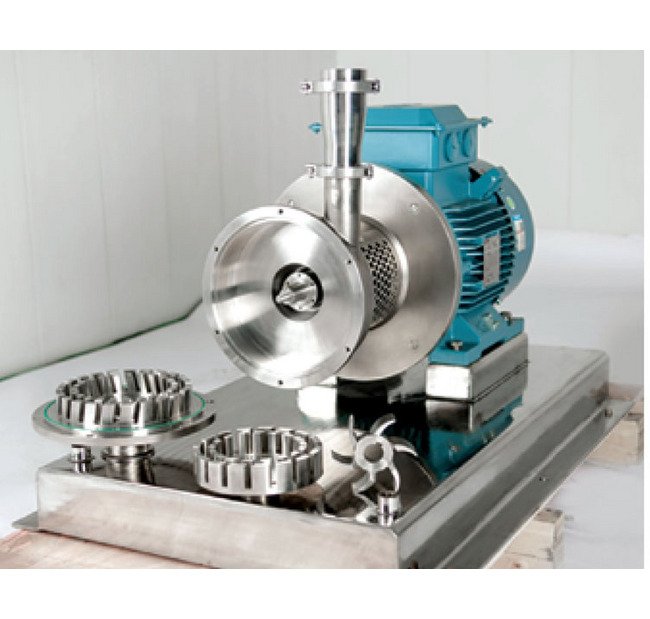

PCH Shear Pump is ideal for diary, beverage, food and other hygienic applications, with the following features and options:Compact and streamlined designAll built in stainless steel, with a stainless steel motor shroudEasy assembly and disassemblyFree flow powder induction, high efficiency, free of lumps and fish-eyes90% process time reduction compared with conventional agitator mixingCIP availableInterchangeable stator rotor of various type for different purposes (Option)
Note Note
Actual liquid/powder capacity will vary depending on the material characters and stator rotor type.PerMix offers bigger capacity according to customer requests.PerMix reserves the right to modify the design without notice.
Specifications Inlet Size
65 mm
Specifications Maximum Liquid Capacity
20000 L/h
Specifications Maximum Powder Capacity
18 kg/min
Specifications Motor Power
11 to 18.5 kW
Specifications Outlet Size
50 mm
Specifications Speed Of Mixing Can
3000 rpm
