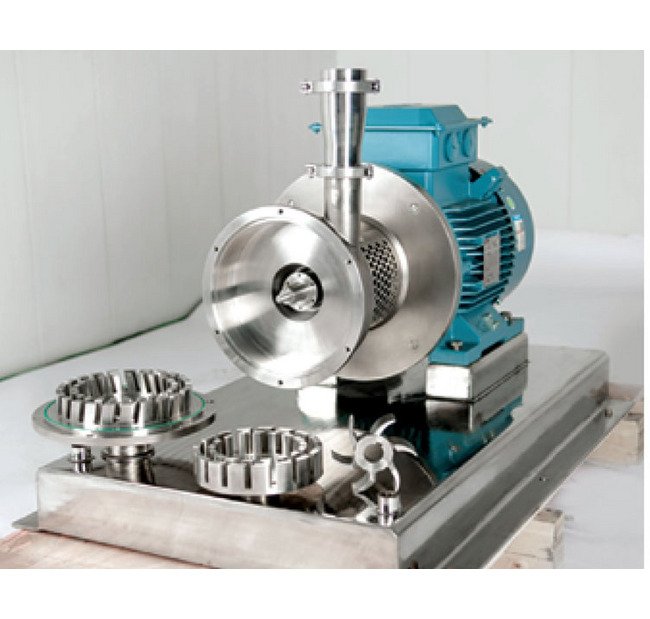

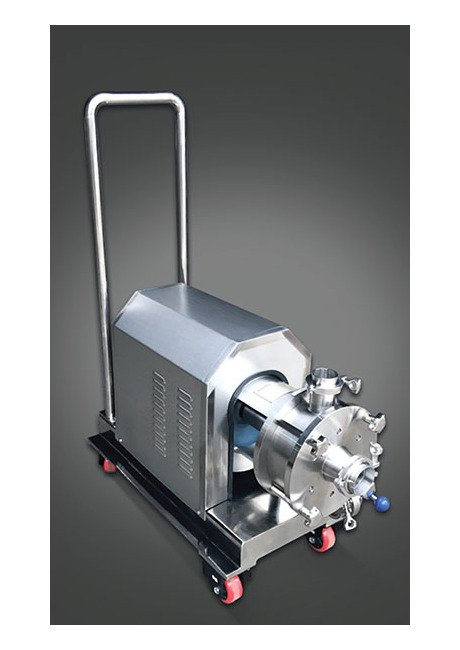

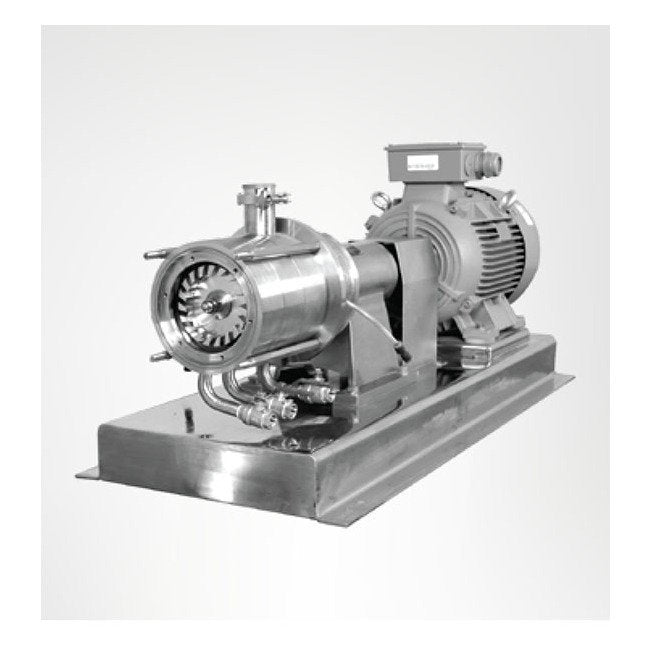

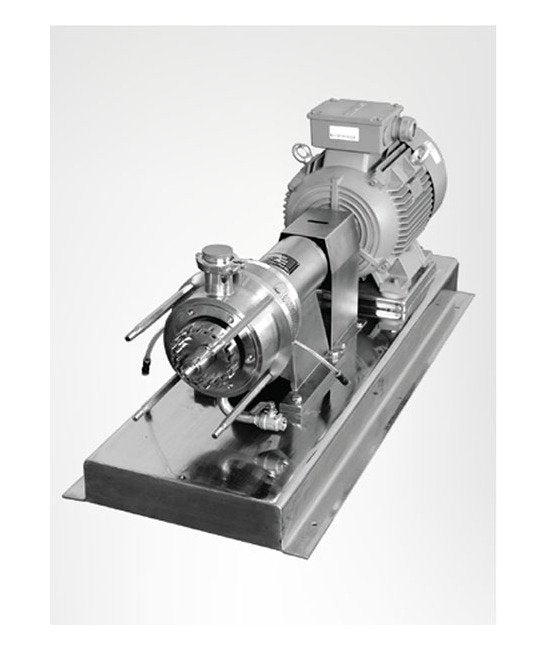

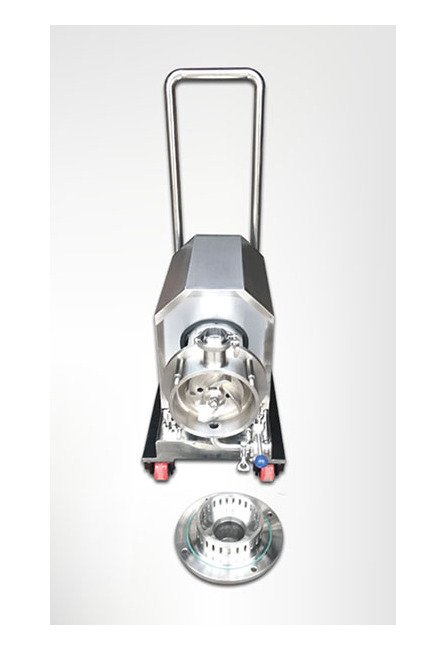

PerMix PCH 30000 Liquid Per Hour Shear Pump
PerMix PCH 30000 Liquid Per Hour Shear Pump
SKU:PCH-4f444b
Achieve efficient shearing and pumping with the PerMix PCH Shear Pump, designed for hygienic applications in dairy, food, and pharmaceutical industries.
Regular price
$3,500.00
Regular price
Sale price
$3,500.00
Unit price
per
Initiate Order
PerMix PCH 30000 Liquid Per Hour Shear Pump
$3,500.00
Quantity: 1
Claim Your Seller Account
PerMix PCH 30000 Liquid Per Hour Shear Pump
$3,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PerMix PCH 30000 Liquid Per Hour Shear Pump is a versatile solution that combines the efficiency of a centrifugal pump with the shearing power of a high shear mixer. Designed specifically for hygienic applications in industries like dairy, food, cosmetics, and pharmaceuticals, this pump features a sturdy stainless steel construction. Its compact design, high efficiency, and easy assembly make it ideal for processes requiring medium shearing performance and significant pumping capability. With interchangeable stator rotor options and CIP availability, this pump ensures smooth operation and easy maintenance.
Product Specifications
Additional Information Additional Information
PerMix Shear Pump can be easily cleaned with CIP (Clean In Place) system to save time and labor.By installing an optional hopper or a feeding table, PerMix Shear Pump is converted to a Powder Liquid Mixer, to be able to dissolve/disperse free flowing powder material into light liquid in a quite fast and efficient way.
Applications Applications
Some typical applications of PCH Shear Pumps:Food & BeverageButter, Canned foods, Cheese, Condiments, Dairy, Dressings, Flavorings, Ice cream, Juices, Ketchup, Salads, Syrup, YogurtPharmaceuticalsCough syrup, Emulsion, Medicine, Ointment, Pharmaceutical, Vaccine, Veterinary drugCosmeticsCreams, Detergent, Gels, Hair conditioner, Lotions, Shampoo, Tooth paste
Features And Options Features And Options
PCH Shear Pump is ideal for diary, beverage, food and other hygienic applications, with the following features and options:Compact and streamlined designAll built in stainless steel, with a stainless steel motor shroudEasy assembly and disassemblyFree flow powder induction, high efficiency, free of lumps and fish-eyes90% process time reduction compared with conventional agitator mixingCIP availableInterchangeable stator rotor of various type for different purposes (Option)
Note Note
Actual liquid/powder capacity will vary depending on the material characters and stator rotor type.PerMix offers bigger capacity according to customer requests.PerMix reserves the right to modify the design without notice.
Specifications Inlet Size
65 mm
Specifications Maximum Liquid Capacity
30000 L/h
Specifications Maximum Powder Capacity
32 kg/min
Specifications Motor Power
22 to 30 kW
Specifications Outlet Size
50 mm
Specifications Speed Of Mixing Can
3000 rpm
