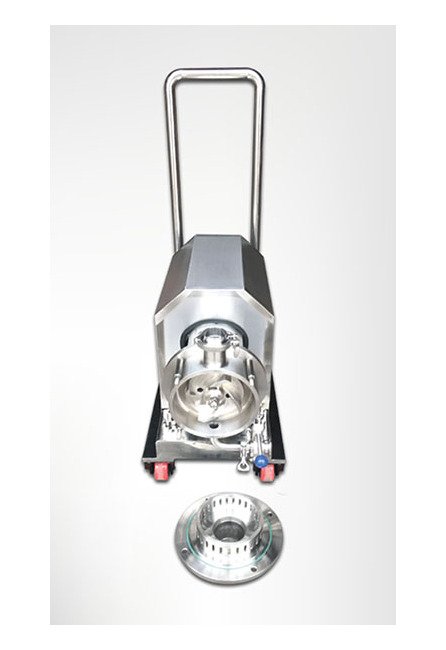

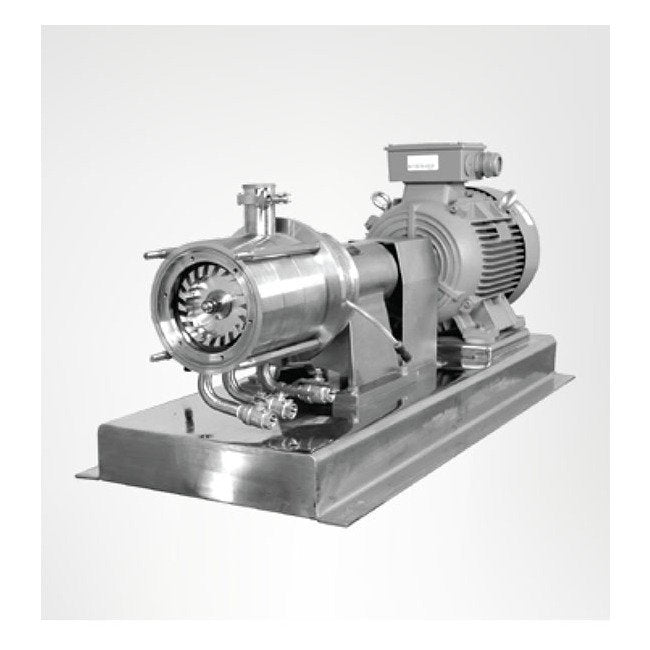

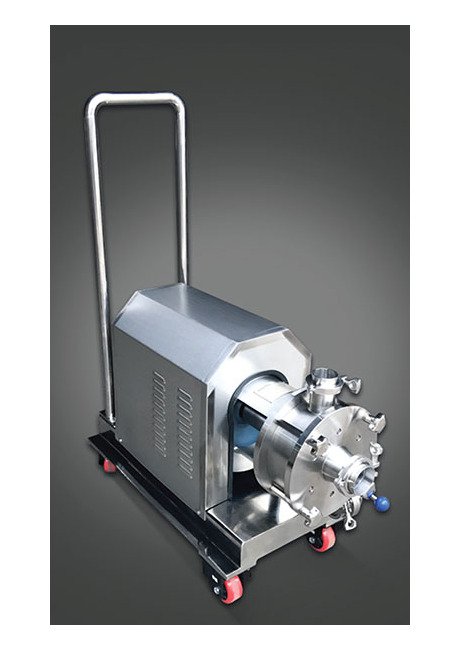

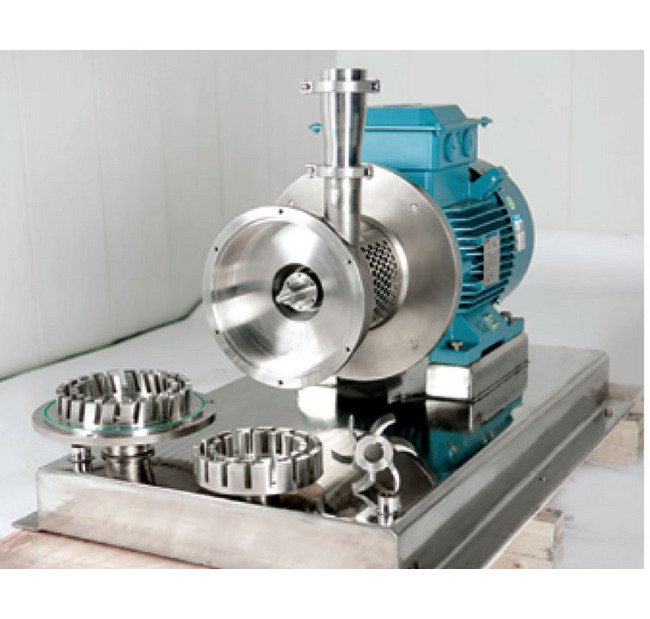

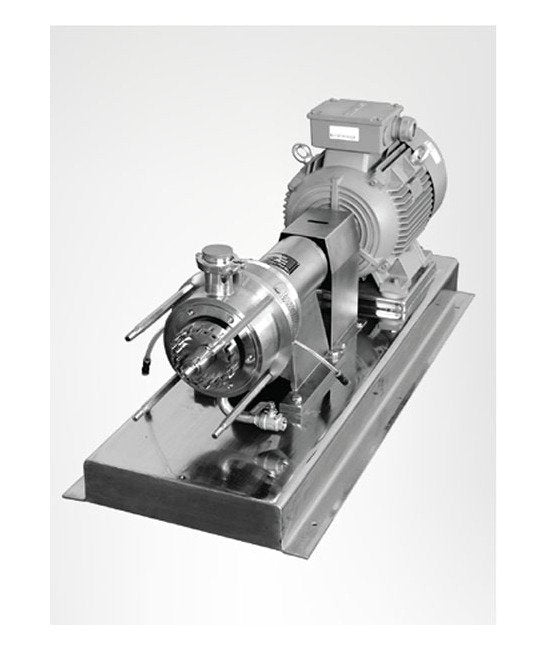

PerMix PCH Shear Pump 10000 L/h & 10 kg/min
PerMix PCH Shear Pump 10000 L/h & 10 kg/min
SKU:PCH-09d43f
Achieve high pumping efficiency and superior shearing energy with PerMix PCH Shear Pump. Ideal for hygienic applications in dairy, food, cosmetics, and pharmaceutical industries.
Regular price
$6,999.99
Regular price
Sale price
$6,999.99
Unit price
per
Initiate Order
PerMix PCH Shear Pump 10000 L/h & 10 kg/min
$6,999.99
Quantity: 1
Claim Your Seller Account
PerMix PCH Shear Pump 10000 L/h & 10 kg/min
$6,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PerMix PCH Shear Pump 10000 L/h & 10 kg/min is a high-performance solution that combines the efficiency of a centrifugal pump with the superior shearing energy of an inline high shear mixer. Designed for hygienic applications such as dairy, food, cosmetics, and pharmaceutical industries, this shear pump features a compact stainless steel build, easy assembly, and disassembly, free flow powder induction, and high efficiency. With interchangeable stator rotor options, it offers versatility in various applications while ensuring a 90% reduction in process time compared to conventional mixing methods.
Product Specifications
Additional Information Additional Information
PerMix Shear Pump can be easily cleaned with CIP (Clean In Place) system to save time and labor.By installing an optional hopper or a feeding table, PerMix Shear Pump is converted to a Powder Liquid Mixer, to be able to dissolve/disperse free flowing powder material into light liquid in a quite fast and efficient way.
Applications Applications
Some typical applications of PCH Shear Pumps:Food & BeverageButter, Canned foods, Cheese, Condiments, Dairy, Dressings, Flavorings, Ice cream, Juices, Ketchup, Salads, Syrup, YogurtPharmaceuticalsCough syrup, Emulsion, Medicine, Ointment, Pharmaceutical, Vaccine, Veterinary drugCosmeticsCreams, Detergent, Gels, Hair conditioner, Lotions, Shampoo, Tooth paste
Features And Options Features And Options
PCH Shear Pump is ideal for diary, beverage, food and other hygienic applications, with the following features and options:Compact and streamlined designAll built in stainless steel, with a stainless steel motor shroudEasy assembly and disassemblyFree flow powder induction, high efficiency, free of lumps and fish-eyes90% process time reduction compared with conventional agitator mixingCIP availableInterchangeable stator rotor of various type for different purposes (Option)
Note Note
Actual liquid/powder capacity will vary depending on the material characters and stator rotor type.PerMix offers bigger capacity according to customer requests.PerMix reserves the right to modify the design without notice.
Specifications Inlet Size
50 mm
Specifications Maximum Liquid Capacity
10000 L/h
Specifications Maximum Powder Capacity
10 kg/min
Specifications Motor Power
5.5 to 7.5 kW
Specifications Outlet Size
40 mm
Specifications Speed Of Mixing Can
3000 rpm
