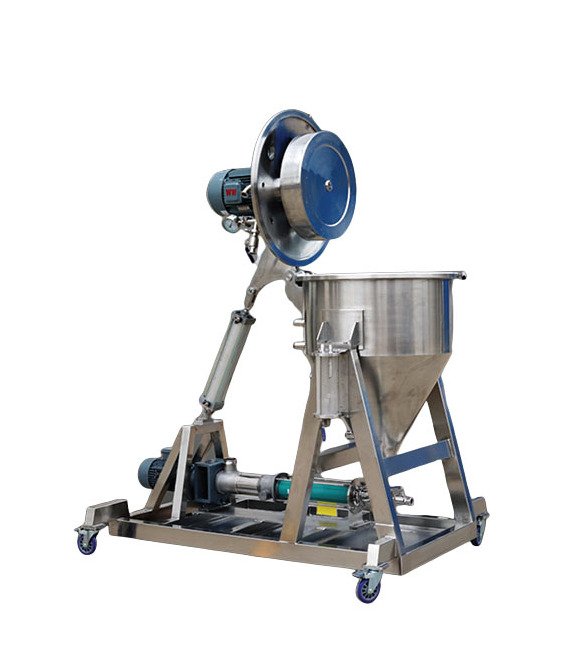

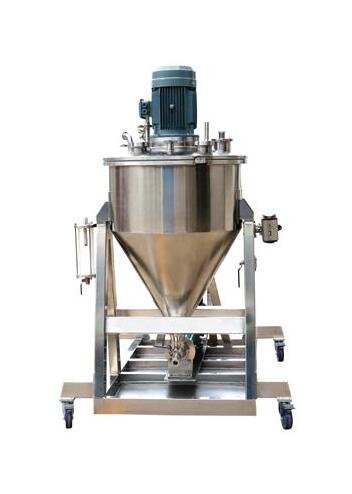

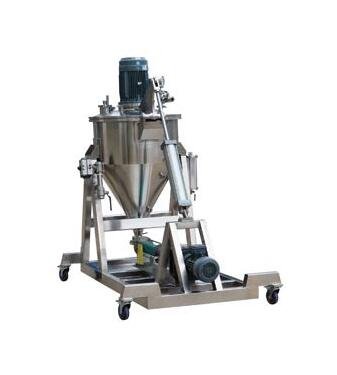

PerMix PDA 65L Vacuum Deaerator
PerMix PDA 65L Vacuum Deaerator
SKU:PDA-93de91
Efficiently remove air from liquids with PerMix PDA 65L Vacuum Deaerator for premium quality outputs in food, chemical, and cosmetic industries.
Regular price
$16,500.00
Regular price
Sale price
$16,500.00
Unit price
per
Initiate Order
PerMix PDA 65L Vacuum Deaerator
$16,500.00
Quantity: 1
Claim Your Seller Account
PerMix PDA 65L Vacuum Deaerator
$16,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PerMix PDA 65L Vacuum Deaerator is a compact and sanitary device designed to automatically remove air or gases from various liquids and pastes using a powerful vacuum system. With a working volume of 65 liters and versatile flow rates for different viscosities, this deaerator effectively eliminates issues like oxidation, discoloration, and inconsistent product quality. It features a high vacuum chamber, customizable sieve options, and advanced deaeration process for optimal results. Suitable for industries like food, chemicals, pharmaceuticals, and cosmetics, this PerMix deaerator offers full automation, explosion-proof construction, and various customizable features to meet diverse application needs.
Product Specifications
Additional Information Additional Information
PerMix PDA Vacuum Deaerators can handle numerous processes including (but not limited to) the manufacturing of food products, cosmetics and chemicals, which requires to avoid air oxidation to ensure a correct preservation or application. End products can be sauces, fruit pulp, cosmetic creams, syrups, PVC dispersions, lubricants, car polish, shower gels, paraffin and penicillin emulsions, ice creams, adhesives, etc.
Applications Chemicals
Adhesives | Detergents | Glues | Ink Dispersions | Oils | Paint Dispersions | Plastics | Slurries | Varnishes
Applications Foods
Baby Food | Chocolate Fillings | Chocolate Frostings | Creams | Dessert Toppings | Fruit Concentrates | Ketchup | Mayonnaise | Mustard Paste | Salad Dressings | Sauces
Applications Note For Applications
PerMix PDA series Vacuum Deaerators can be used extensively in many applications including but not limited to: Foods, Chemicals, Pharma & Cosmetics.
Applications Other Applications
Bio | Health and Beauty | Nutraceutical
Applications Pharmaceuticals And Cosmetics
Creams | Emulsions | Gels | Lotions | Ointments | Shampoo | Toothpaste
Features And Options Features And Options
PerMix PDA series Deaerators have a lot of features & options available including:Fully automated for "stand alone" operation with PLC control cabinetExplosion-proof construction for flammable productPneumatic or electrical lifting or lowering of the top coverSpeed of distributor plate infinitely adjustableSpecial level control for sensitive productsVarious vacuum systems availableHigher pressure discharge pumpSanitary designsJacket for heating or coolingSpecial materials of construction by Duplex SS, Titanium, Hastelloy, etc.Portable design/on casters
How It Works How It Works

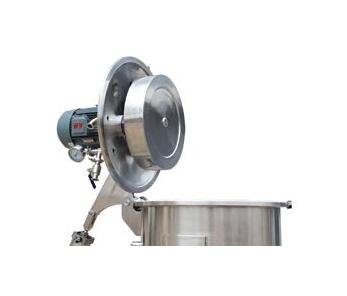

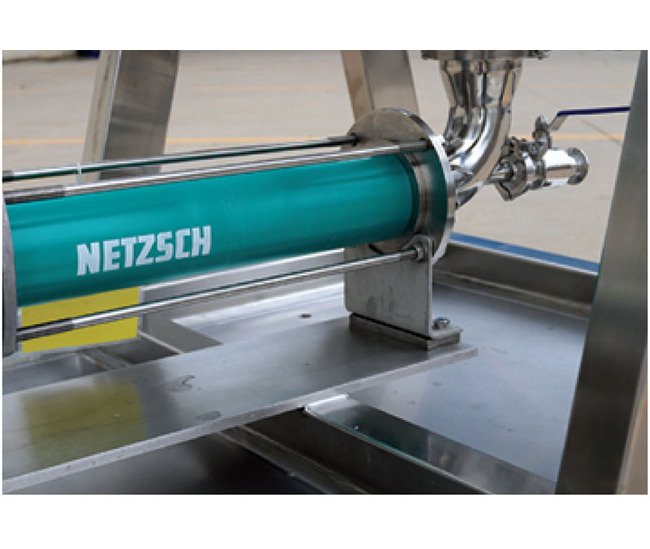

The PerMix PDA series Vacuum Deaerating Machine starts to work by creating a very high vacuum in the chamber up to -0.95barG, and then the loading of product follows. In most cases, product can be sucked easily into the chamber by the vacuum; for product of high viscosity, an extra pump is necessary to aid the loading.The deaeration begins with the formation of a fine layer of product, which is distributed firstly on a high speed centrifugal disc with dismountable sieves surrounding it. Depending on the product character and/or processing requirements, the sieve number can be from 0 to 3, with the sieve hole size also to be decided, typically from 1-3mm.The creation of fine layer under vacuum makes the air bubbles in the product burst and the product is then deaerated. Besides, during its passing through the sieve holes, the product particle is subject to shearing, folding, particle size reduction, etc. which results in even better separation of air from product particles.Away from the centrifugal disc, the product is then sprinkled in radial direction toward the chamber wall. It then stops there, flows by gravity, and forms another thin layer all over the wall below the centrifugal disc, continuing to be deaerated by the vacuum, and finally arrives at the discharge port, and discharged by means of a positive displacement pump (screw pump, diaphragm pump or the other type).
Note Note
All specifications and illustrations are as accurate as is reasonably possible, but they are not binding.PerMix reserves the right to modify the design without notice.
Specifications Height
1780 mm
Specifications Height With Open Lid H1
2200 mm
Specifications Highly Viscous Product Flowrate With 5000 Centipo
800 L/h
Specifications Length
1855 mm
Specifications Light Liquid Flowrate With 300 Centipoise Cp Visc
4000 L/h
Specifications Total Power
4.45 kW
Specifications Viscous Product Flowrate With 5000 Centipoise Cp
2500 L/h
Specifications Weight
690 kg
Specifications Width
715 mm
Specifications Working Volume
65 L
