PerMix PDC 500 L Double Cone Mixer
PerMix PDC 500 L Double Cone Mixer
SKU:PDC-865103
Efficient and hygienic 500L Double Cone Mixer for precise blending in Chemical, Food, and Pharmaceutical industries.
Regular price
$14,999.99
Regular price
Sale price
$14,999.99
Unit price
per
Initiate Order
PerMix PDC 500 L Double Cone Mixer
$14,999.99
Quantity: 1
Claim Your Seller Account
PerMix PDC 500 L Double Cone Mixer
$14,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PerMix PDC 500L Double Cone Mixer offers efficient mixing for various industries including Chemical, Food, Metal Powders, Nutraceutical, and Pharmaceutical. With a total volume of 500L and key features like low distortion, minimal contamination, and gentle mixing, this mixer ensures uniform blending of powders and granules. Its customizable options, hygienic stainless steel construction, and safety features make it ideal for institutions requiring top-notch mixing equipment.
Product Specifications
Additional Information Additional Information
PerMix Double Cone Mixer provide a gentle high-flowing mixing process for solids/solids in a proportion of up to 1:100.000 with the possibility of using an intensifier bar to enhance the mixture, and solids/liquids in powder or granulate form with different specific weights.
Advantages Advantages
Compared with other types of mixing equipment, PerMix PDC series Double Cone Mixer is able to provide the following advantages:Minimized distortion to the materials due to absence of any moving bladesNo contamination due to the closed area by only stainless steel wallsEspecially suitable to mix powders or gran ules which are temperature sensitive, easily oxidizable, crystallized, volatile, poisonous or with irritating smellMany options are available, such as side chopper, variable speed, automatic stop in discharge position, air operated valve, touch screen operating panel, safety fence, etc.Suitable for uniform mixing of free flowing, dry powders, crystals and granules with more or less the same particle size, bulk density and fluidity. Minimize damage (very gentle mixing) to the mixed materialsZero or almost Zero contamination risk, due to the closed area by only stainless-steel walls.Irritating smell. Very good for abrasive products mixing - no shear.Many options are available such as: Double jacket for heating/cooling, Intensifier bar for lump breaking, variable speed, etc.
Applications Applications
PerMix PDC series Double Cone Mixers are widely used in pharmaceuticals, colors, plastics resins, food products, ceramic glazes, metal powders, cosmetics, detergents, insecticides, explosives materials, and a lot of others:Food: Breakfast Cereals, Enzymes, Flavours, Herbs, Minerals, Nutraceuticals, Seasonings, Spices, Tea Mixes, Tobacco, Vitamin MixesChemicals: Agrochemicals, Ceramic Powders, Deter gents, Drugs, Dyestuffs, Leather Auxiliaries, Metal Powders, Pigments, Plastic Granules, Plastic Pellets, Plastic Powders, Textile AssistantsPharmaceuticals: Active Agents, Biological Solids, Carcinogenic Substances, Concentrated Active Ingredients, Generics, Intermediate Products, Sterile Products, Toxic Substances
Features And Options Features And Options
The simplicity of design of the PerMix PDC series Double Cone Mixer allows a low initial cost, easy maintenance and simple operation. They can be supplied with a variety of options, including but not limited to:Full stainless steel construction for hygienic requirementInternal choppersVacuum/Drying execution with heating jacket, vacuum pump, dust filter, condenser, etcSpecial spray unitSafety fenceMobile trolleyPLC control & touch screenDetachable vessels
How It Works How It Works

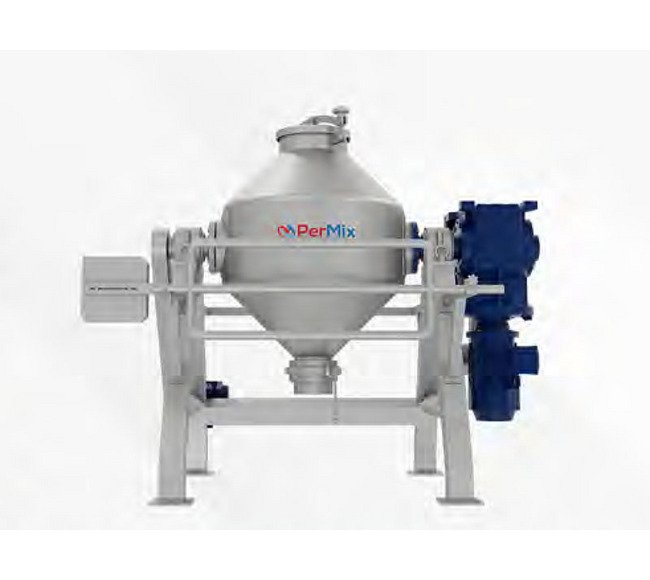

The PerMix PDC series Double Cone Mixer has a chamber made up by two cones. Powders and granules are fed into the Double cone chamber either manually or by a vacuum conveyor. A gear motor drives the chamber to roll in 360 degrees. This multi-dimensional motion makes the powders and granules inside tumbling up and down and colliding to each other all the time, and achieve uniform mixing in short time.A safety barrier or enclosure is often mounted in the front of or surrounding the Double Cone Mixer, supplying the safety function to stop the mixer immediately when the barrier or enclosure is open, and prevent the mixing vessel to run when the barrier or enclosure is not closed.
Note Note
All specifications are as accurate as is reasonably possible, but they are not binding.Customized sizes are available against request.PerMix reserves the right to modify the design without notice.
Specifications Height
2600 mm
Specifications Intensifier Bar
Available
Specifications Length
1630 mm
Specifications Mixing Time
10 to 30 min
Specifications Mixing Volume
50 %
Specifications Most Used Industry
Chemial | Food | Metal Powders | Nutraceutical | Pharmaceutical
Specifications Operation Height
2600 mm
Specifications Operation Volume
250 L
Specifications Percent Of Product Residue
<1 %
Specifications Power
2.2 kW
Specifications Size Footprint
Medium (3.54 m²)
Specifications Speed
8 to 28 rpm
Specifications Total Volume
500 L
Specifications Width
1070 mm
Vacuum Drying Vacuum Drying

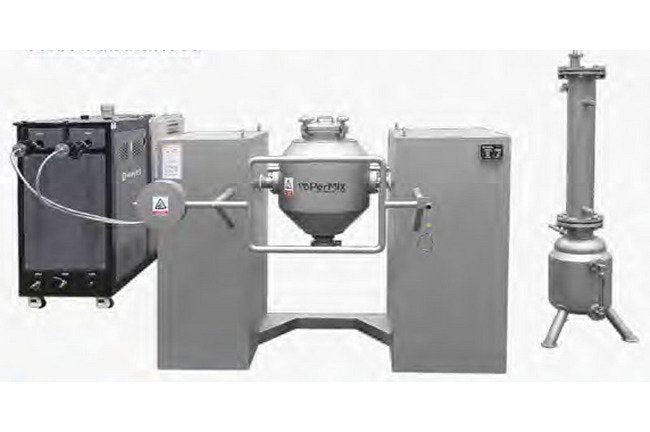

PerMix Vacuum Double Cone Mixers/Dryers consist of a double cone mixer that is heated and is operating under vacuum and is capable of totally extracting water or other solvents from mixing and homogenization processes, in a gentle, precise process, without shearing. If shearing is needed, an optional intensifier bar can be added. Solids/solids mixtures are possible in any percentage, as well as different densities and particle size distributions, for intermediate products or fine chemicals, end products and delicate, thermolabile more or less fine products, degradable, photosensitive or sterile products, injectable active substances or chemical reactives, designed specifically to be used with the range of crystalline structures and amorphous products.Perfectly homogeneous and Uniform dried batch.Reduced drying times, Because of the Intensifier bar's action.Absolute safety for the operators, the product and the environment.Design in full compliance with GMP and FDA standards, and consequently cleaning and inspection operations easier and faster than any other dryersFast and total discharge of dried product.Very high final vacuum.Very low final moisture contentsEasy maintenance & cleaningEasy to use
