PerMix PDI 600L High Speed Mixer
PerMix PDI 600L High Speed Mixer
SKU:PDI-d9fc29
Efficiently mix dry powders & granulate with liquid binders using the versatile PerMix PDI 600L High Speed Mixer. Perfect for food, chemical, and pharmaceutical industries.
Regular price
$18,999.00
Regular price
Sale price
$18,999.00
Unit price
per
Initiate Order
PerMix PDI 600L High Speed Mixer
$18,999.00
Quantity: 1
Claim Your Seller Account
PerMix PDI 600L High Speed Mixer
$18,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

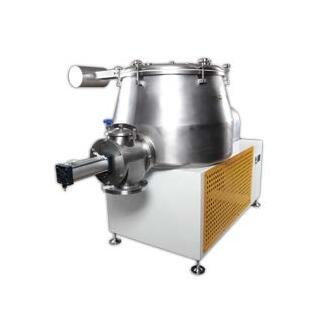

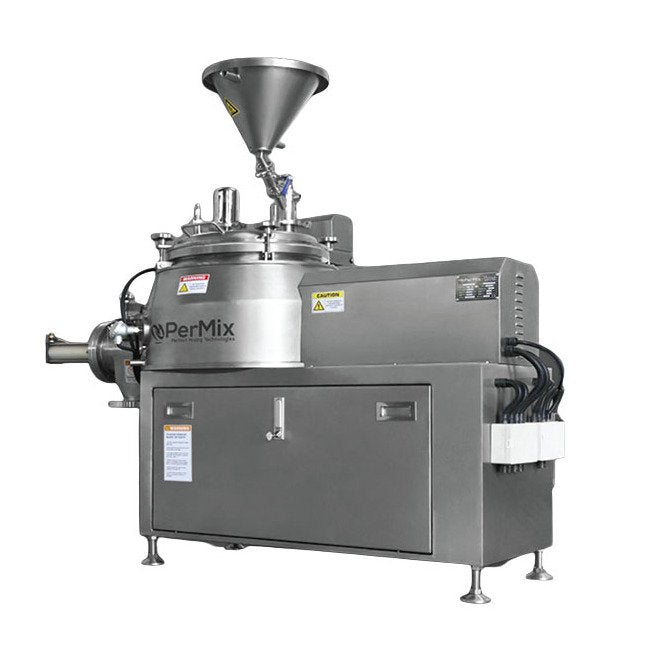

The PerMix PDI 600L High Speed Mixer is a top-of-the-line blending machine designed for efficient mixing of dry powders or granulating with liquid binders. With a central Impeller type mixer and side vertical Chopper, it ensures perfect mixing results in a short time. Featuring Y-shaped rotor blades, various feeding & discharging methods, spray nozzles for liquid addition, and customizable construction materials, this mixer offers versatility and high performance. Ideal for food, chemical, pharmaceutical, cosmetics industries, it delivers uniform and porous granules seamlessly. With vacuum drying capabilities and a modular design, it meets diverse institutional procurement standards with ease.
Product Specifications
Applications Chemical Industry
Coloring of Plastics | Master Batches | Powder Mixing with Liquid Addition | Powder Paints
Applications Cosmetics Industry
Ceramic Dental Mixtures | Eye Shadows | Face Powders
Applications Food Industry
Batters | Doughs for Pastries | Flavors | Instant Meals | Spice and Herb Mixtures | Sugar Based Confectionery Tablets
Applications Note For Applications
Some typical applications of a PerMix PDI series High Speed Mixer includes but not limited to: Food industry, Chemical industry, Pharmaceutical industry, Cosmetics industry
Applications Other Applications
Bio | Health and Beauty | Nutraceutical
Applications Pharmaceutical Industry
Granulate Mixtures | Powder Mixtures | Wet Granulations
Basic Construction Basic Construction
The PerMix PDI series High Speed Mixer consists of two electrical motors, one reduction gear, coupling, and shafts with the two agitators. The shaft is sealed with special sealing, sometimes with air purge, in a way that there is limited contact between the material and the seal.Materials are loaded from top side, and the discharge is located at the bottom side. Due to the consistent modular design, the system can be configured individually and easily adapted to the constructional circumstances and specific requirements.
Features And Options Construction Material And Finish
We are able to offer our PDI Mixers with contact part to be built in SS304, S316/316L, Titanium, Duplex stainless steel, Hastelloy, etc. Standard of internal and external finish can be adapted to the customer's needs. For abrasive materials we offer hardened Stainless Steel as the contact part.
Features And Options Drive System

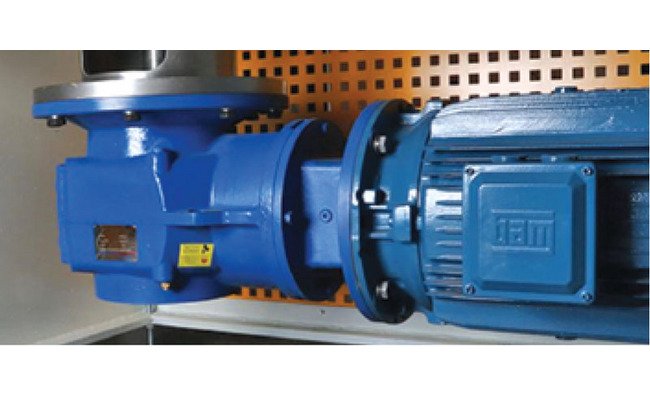

Drive system by geared motor, cycloidal reducer, worm reducer, belt or chain transmission, etc.
Features And Options Feeding And Discharging
A variety of feeding & discharging methods can be selected by the customers.
Features And Options Heatingcooling Jacket
Jacketed trough for heating/cooling operation.
Features And Options Impellers Design

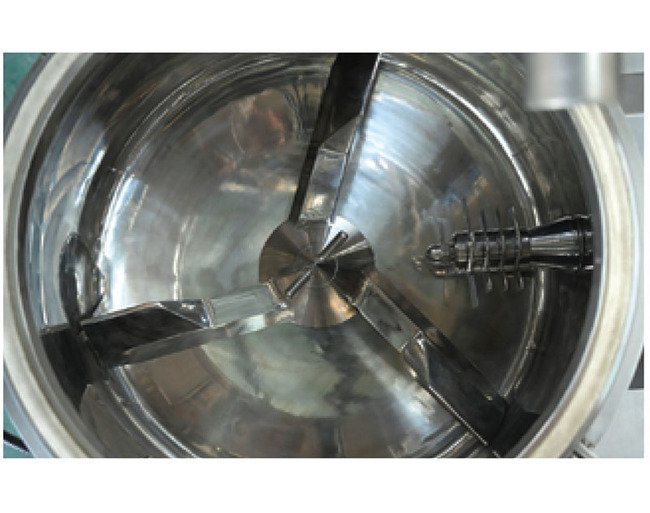

Y-shaped rotor blade with special aerodynamic profile - this key element with the various product-optimized chopper designs are the result of many years of successful development.
Features And Options Mixer Lid With Counter Weight Or Air Cylind
Standard PerMix PDI Mixer is equipped with a cover with counter-weight, manually operated; however pneumatic opening is an option for easy opening and closing to save labors.
Features And Options Spray Nozzle

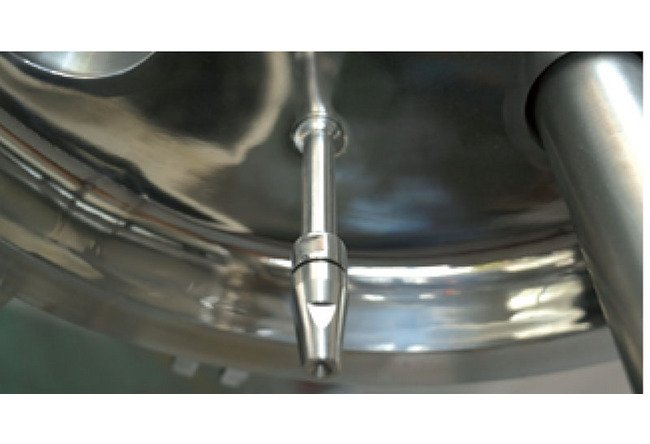

Liquid can be added into the powder by spray nozzles on the top.
Features And Options Vacuum Drying And Deaerating
The PDI mixer can be designed for vacuum drying & deaerating or for inner pressure working for special applications.
How It Works How It Works
In a PerMix PDI series High Speed Mixer, the powders are set in a multidimensional shear flow state and it needs only short mixing time until they are thoroughly mixed.In case that granulation is required, the spraying system sprays the binder solution into the bowl to agglutinate with the materials and under the combined action of the impeller and chopper, uniform and porous granules are produced. After finishing the mixing or granulation process, powders/granules are discharged through the side discharge with no "dead zone" valve.
Note Note
All specifications are as accurate as is reasonably possible, but they are not binding.Customized sizes are available against request.PerMix reserves the right to modify the design without notice.
Specifications Chopper Power
5.5 kW
Specifications Chopper Speed
1500 rpm
Specifications Impeller Power
22 kW
Specifications Impeller Speed
149 rpm
Specifications Operation Volume
360 L
Specifications Total Volume
600 L
