PerMix PDP 1000L Double Planetary Mixer
PerMix PDP 1000L Double Planetary Mixer
SKU:PDP-703edb
Achieve perfect mixing with the PerMix PDP 1000L Double Planetary Mixer. Ideal for bio, chemical, food, and pharmaceutical industries. Efficient and reliable.
Regular price
$25,999.99
Regular price
Sale price
$25,999.99
Unit price
per
Initiate Order
PerMix PDP 1000L Double Planetary Mixer
$25,999.99
Quantity: 1
Claim Your Seller Account
PerMix PDP 1000L Double Planetary Mixer
$25,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PerMix PDP 1000L Double Planetary Mixer is a cutting-edge solution for perfect mixing in industries such as bio, chemical, food, pharmaceuticals, and more. With a total volume of 1000 L and a powerful 45 kW motor, this mixer efficiently handles materials up to 1,500,000 cP. Its design features include dual mixing tools shafts with heavy-duty ball bearings and a quick vessel locking device for easy operation. Whether mixing highly viscous pastes or granulating wet powders, this mixer ensures thorough mixing and dispersing effect in a short time, making it ideal for various industrial applications.
Product Specifications
Additional Information Additional Information
The PerMix PDP series Double Planetary Mixer is so versatile that it can be used to mix, knead, stir and deaerate all types of material, including highly viscous pastes, even to granulate wet powders. Industrial pastes produces by the PerMix PDP series Double Planetary Mixer include concentrated paints and varnishes, printing inks, fillers, silicone and thiocole pastes, plastisoles, plastic coatings, synthetic lubricating greases and many other materials.
Applications Applications
Bio | Chemical | Food | Health and Beauty | Nutraceutical | Pharmaceutical
Design Features Design Features

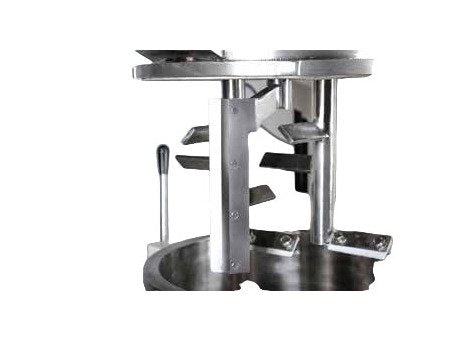

The standard finger-blade mixing tools are designed to work in an overlapping way, thus create strong axial and radial motions in the mix-product, as well as a highly intensive shearing and dispersing effect. Within a short time, the material is thoroughly mixed and even very difficult formulas may be obtained.A quick vessel locking device connects the mixing vessel to the mixer. Because the vessel is mounted on fixed and swivel wheels, it is very easy to transport. The standard version of the PerMix PDP series Double Planetary Mixer features dual mixing tools shafts running in heavy duty ball bearings. Both mixing tools and scrapers can be supplied with a special bayonet locking system for easy disassembly. The upper head of the machine is lifted by manual, mechanical or hydraulic elevating systems, depending on the size of the machine.Electrical TEFC single speed motors are the standard drive units supplied with PerMix PDP series Double Planetary Mixer. Ex-proof design motors and gear switches are also available. Among the many options available for special applications are: infinity variable speeds, two speed drives, hydraulic drive units, heating/cooling jacket, vacuum/pressurized operation, etc.
How It Works How It Works

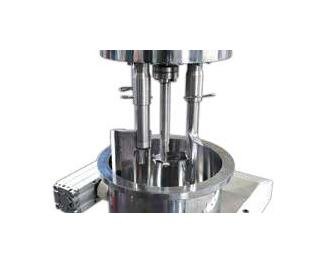

In the mixing process, two vertically mounted mixing tools rotate around a common sun gear. In addition, they rotate at a higher speed around their own axes, according to the planetary principle. A swinging type scraper continually sweeps the inside wall, transporting material from the walls of the vessel to the mixing tools, and transferring the heat efficiently.
Note Note
All specifications are as accurate as is reasonably possible, but they are not binding.Customized sizes are available against request.PerMix reserves the right to modify the design without notice.
Special Designs Special Designs
PerMix designs the Double Planetary Mixer according to the special requirements and applications of the customer. Some modifications include:For mixed products that must be heated or cooled, PerMix has designed jacketed vessels for hot oil, electrical heating, steam heating and liquid cooling.PerMix has designed moveable and tiltable mixing vessels, with or without a bottom discharge valve for less viscous liquids and units with a special no dead area valve for connection to peripheral equipment. Arrangements can be made for the transport of the vessel by forklift or by crane.Where necessary, alterations can be made in the shape of the mixing tools; a third mixing tool may be added; a homogenizer unit (with deflector) can be supplied - and other performance proven mixing elements may be supplied for special duties.A PerMix Dissolver Unit for fine dispersion, with its own drive unit, available with or without variable speed, has proven itself a good process accelerator for dealing with special dispersions.
Specifications Closed Height
2450 mm
Specifications Length
2800 mm
Specifications Lifting Power
5.5 kW
Specifications Motor Power
45 kW
Specifications Open Height
3300 mm
Specifications Total Volume
1000 L
Specifications Width
1650 mm
Specifications Working Volume
700 L
