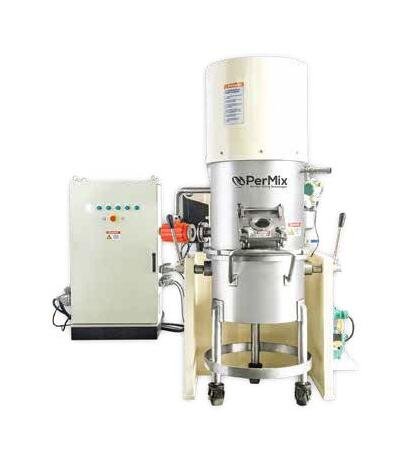

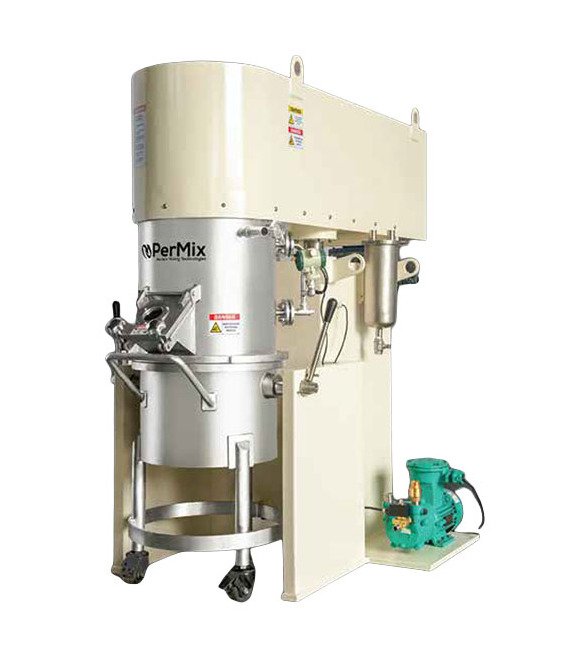

PerMix PDP 50L Double Planetary Mixer
PerMix PDP 50L Double Planetary Mixer
SKU:PDP-94ce3e
Efficiently mix highly viscous materials with the PerMix PDP 50L Double Planetary Mixer - perfect for bio, pharma, and chemical applications.
Regular price
$18,999.99
Regular price
Sale price
$18,999.99
Unit price
per
Initiate Order
PerMix PDP 50L Double Planetary Mixer
$18,999.99
Quantity: 1
Claim Your Seller Account
PerMix PDP 50L Double Planetary Mixer
$18,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PerMix PDP 50L Double Planetary Mixer offers a total volume of 50 liters, ideal for handling materials up to 1,500,000 cP viscosity. With a powerful 5.5 kW motor and innovative design features including dual mixing tools, quick vessel locking, and variable speed options, this mixer ensures thorough mixing and dispersing in a short time. With special designs available for heating/cooling, moveable vessels, and additional mixing elements, it meets a wide range of industry demands from bio and pharmaceutical to chemical and food production.
Product Specifications
Additional Information Additional Information
The PerMix PDP series Double Planetary Mixer is so versatile that it can be used to mix, knead, stir and deaerate all types of material, including highly viscous pastes, even to granulate wet powders. Industrial pastes produces by the PerMix PDP series Double Planetary Mixer include concentrated paints and varnishes, printing inks, fillers, silicone and thiocole pastes, plastisoles, plastic coatings, synthetic lubricating greases and many other materials.
Applications Applications
Bio | Chemical | Food | Health and Beauty | Nutraceutical | Pharmaceutical
Design Features Design Features

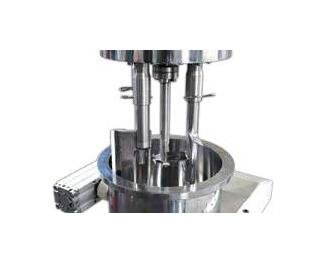

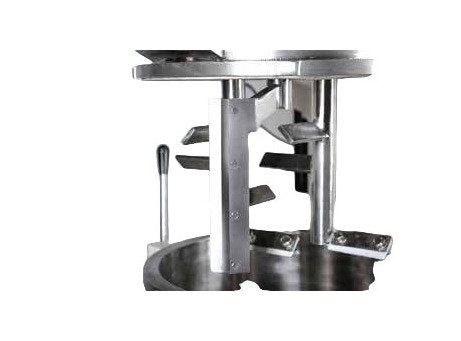

The standard finger-blade mixing tools are designed to work in an overlapping way, thus create strong axial and radial motions in the mix-product, as well as a highly intensive shearing and dispersing effect. Within a short time, the material is thoroughly mixed and even very difficult formulas may be obtained.A quick vessel locking device connects the mixing vessel to the mixer. Because the vessel is mounted on fixed and swivel wheels, it is very easy to transport. The standard version of the PerMix PDP series Double Planetary Mixer features dual mixing tools shafts running in heavy duty ball bearings. Both mixing tools and scrapers can be supplied with a special bayonet locking system for easy disassembly. The upper head of the machine is lifted by manual, mechanical or hydraulic elevating systems, depending on the size of the machine.Electrical TEFC single speed motors are the standard drive units supplied with PerMix PDP series Double Planetary Mixer. Ex-proof design motors and gear switches are also available. Among the many options available for special applications are: infinity variable speeds, two speed drives, hydraulic drive units, heating/cooling jacket, vacuum/pressurized operation, etc.
How It Works How It Works
In the mixing process, two vertically mounted mixing tools rotate around a common sun gear. In addition, they rotate at a higher speed around their own axes, according to the planetary principle. A swinging type scraper continually sweeps the inside wall, transporting material from the walls of the vessel to the mixing tools, and transferring the heat efficiently.
Lab And Pilot Models Lab And Pilot Models
PerMix designs the full range of mixers, including the lab helpful for customers when the ingredients for R&D are expensive, thus helping our customer to save their limited budget at the first stage. With the good performance of the lab & pilot mixer, it is easy to scale up for a medium size or even bigger one.
Materials Materials
Many metal materials are available to build our Labs Mixers including but not limited to: Stainless steel 304, Stainless steel 316L, Carbon steel (Mild steel), Duplex stainless steel, Hastelloy C276/C22, Titanium, Alloy 904L, etc.
Note Note
All specifications are as accurate as is reasonably possible, but they are not binding.Customized sizes are available against request.PerMix reserves the right to modify the design without notice.
Permix Labs Series Benefits Permix Labs Series Benefits
High standards of cleanliness.Complete and uniform mixing.Improved efficiency, time is money.Maximum flexibility.Direct scaling.Security before everything.
Special Designs Special Designs
PerMix designs the Double Planetary Mixer according to the special requirements and applications of the customer. Some modifications include:For mixed products that must be heated or cooled, PerMix has designed jacketed vessels for hot oil, electrical heating, steam heating and liquid cooling.PerMix has designed moveable and tiltable mixing vessels, with or without a bottom discharge valve for less viscous liquids and units with a special no dead area valve for connection to peripheral equipment. Arrangements can be made for the transport of the vessel by forklift or by crane.Where necessary, alterations can be made in the shape of the mixing tools; a third mixing tool may be added; a homogenizer unit (with deflector) can be supplied - and other performance proven mixing elements may be supplied for special duties.A PerMix Dissolver Unit for fine dispersion, with its own drive unit, available with or without variable speed, has proven itself a good process accelerator for dealing with special dispersions.
Specifications About Permix
PerMix Tec Co., LTD. is established as the professional supplier of industrial mixing equipment and systems. Our state-of-the-art technology and know-how in this section is originally from Israel; along with the low labor cost advantage in China, PerMix is born to be your partner for the cost-effective solution to your mixing application.We are not only able to offer the single machine with modern appearance and advanced technique, but also to offer the full line system to save your time, which is one of our strong points. With our engineer's decade of experience on this area, PerMix is capable to offer the most suitable solution for any industry that has a demand for mixing.
Specifications Closed Height
1450 mm
Specifications Length
1300 mm
Specifications Lifting Power
1.1 kW
Specifications Motor Power
5.5 kW
Specifications Open Height
1900 mm
Specifications Total Volume
50 L
Specifications Width
800 mm
Specifications Working Volume
35 L
