PerMix PFB 9000L Fluidized Zone Mixer
PerMix PFB 9000L Fluidized Zone Mixer
SKU:PFB-866f51
Achieve rapid and precise mixing with the PerMix PFB 9000L Fluidized Zone Mixer for uniform blends across diverse materials.
Regular price
$28,999.99
Regular price
Sale price
$28,999.99
Unit price
per
Initiate Order
PerMix PFB 9000L Fluidized Zone Mixer
$28,999.99
Quantity: 1
Claim Your Seller Account
PerMix PFB 9000L Fluidized Zone Mixer
$28,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PerMix PFB 9000L Fluidized Zone Mixer is a high-efficiency, fast mixer designed for precise and homogeneous mixing of various materials regardless of particle size, shape, or density. With specialized paddle shafts creating a weightless mixing zone, this mixer ensures rapid and uniform blending. It features an innovative dual shaft design, adjustable paddle speeds, and an overhead chopper for rough mixing when needed. Ideal for industries like Chemical, Building, Environmental, and Pharmaceutical, this mixer offers minimal heat generation, easy cleaning, and efficient liquid addition capabilities.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Due to its high efficiency and reliable performance, PerMix Twin-shaft Paddle Mixers are widely applied in many industries, including but not limited to: Building materials, Fly ash conditioning, Animal feeds, Mineral premixes, Instant drinks, Milk powders, Vitamin mixes, etc.
Applications Building Industry
Blended Cements | Brick Facings | Cement and Fibers | Dry Mortar | Flooring Materials | Joint Compounds | Road Lining Materials | Tile Adhesives/Grouting
Applications Chemical Industry
Boric Acid | Carbon | Color Pigments | Detergents | Explosives | Fertilizers | Fly Ash | Fungicides | Soda Ash
Applications Environmental Applications
Filter Dust Treatment | Fly Ash Conditioning | Food Waste | Sewage Sludge
Applications Feed Industry
Animal Feed | Aqua/Fish Feed | Dairy Additives | Mineral Premixes | Pet Food
Applications Food Industry
Flour/Bread/Bakery Mixes | Frozen Vegetables | Infant Milk Powder | Instant Drinks/Soups | Treatment of Spices
Applications Other Applications
Bio | Health and Beauty | Nutraceutical
Applications Pharmaceutical Industry
Medical Mixes | Vitamin Mixes
Discharge Doors Discharge Doors
PerMix offers pneumatic discharge valves for the PFB Twin-shaft Paddle Mixer for quick discharging when the paddles are running, eliminating any possible segregation. Each valve is located at the bottom of each basin of the W-shaped trough.PerMix also supplies the large Bomb Bay Door for even faster and complete discharging (see the photo above); with the bomb bay doors, the discharging time can reduce to less than one minute (product and mixer size dependent).
Drive System Drive System
PerMix can provide both Single Chain Drive system (with one gearbox, and the two shafts, which are overlapping, are synchronized by a heavy duty chain with chain tensioner), and Dual Direct Drive system, in which there are two gearboxes to be connected with the two shafts (tangential).
Features And Advantages Features And Advantages
Compared with other powder mixers, PerMix PFB series Twin-shaft Paddle Mixers are featured in:Very fast mixing to supply a typical mixing time from 10 seconds to only 1 minuteFree particle movementMinimal heat and low shear for shear and heat sensitive materials (Due to the fact that low friction without shear in this non-gravity zone is generated, this makes the PerMix PFB series Twin-shaft Paddle Mixer an ideal machine for fragile products that can't tolerate rough handling, even flakes or spray dried bodies remaining intact after mixing.)Easy cleaning and hygienic design with minimal blind cornersLow maintenanceBig bomb bay door for fast discharging & reduced segregationLiquid addition by spray balls, nozzles, or dripping pipesLeading edges of the ribbons can be coated by Tungsten Carbide for very abrasive materials.Intensive choppers to break lumpsVarious drive system (single motor/gearbox with chain; dual motor/gearbox, single motor with dual gearbox)
How It Works How It Works

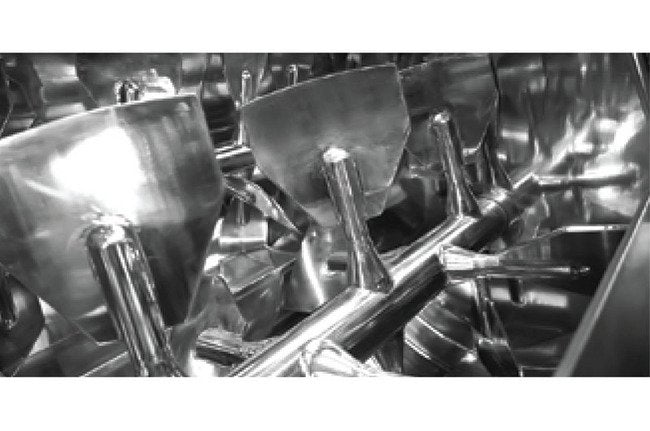

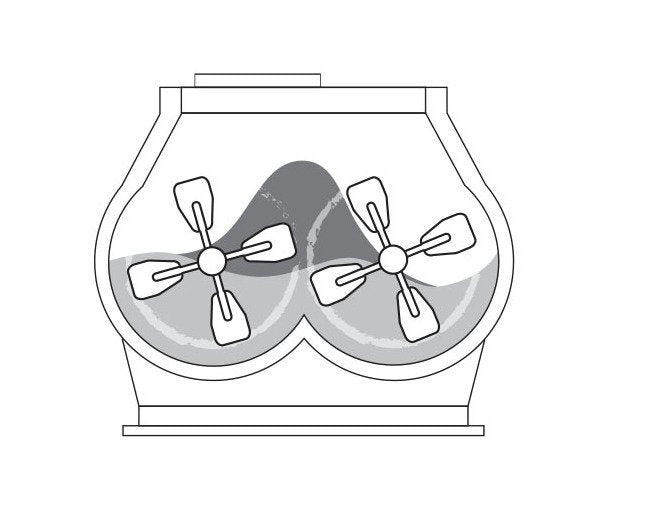

The PerMix PFB series Twin-shaft Paddle Mixer consists of paddles with special angles that are mounted on twin shafts in a "W" shaped trough. During operation, the two shafts are rotating in opposite direction.The paddles sweep the entire bottom of both troughs, and materials are lifted floating between the two shafts (as zero-gravity zone) by the centrifugal force generated by the paddles.At this weightless zone, mixing of materials of different density is easy and fast because material particle can move freely and randomly, regardless of particle size and density. This brings a rapid and highly homogeneous mixing.PerMix Twin-shaft Paddle Mixers can be with either overlapping paddles (single drive with chain transmission), or tangential paddles (twin motor/gearbox drives).
Note Note
Bigger sizes and tailor-made sizes are available against request.All specifications and illustrations are as accurate as is reasonably possible, but they are not binding.PerMix reserves the right to modify the design without notice.
Overhead Chopper Overhead Chopper
Although the PerMix PFB series Twin-shaft Paddle Mixer is featured by its gentle mixing at the weightless zone, it can also achieve rough mixings with additional PerMix Pin Milling Bars to be installed on the top of the paddles.The PerMix Pin Milling Bars are two rapidly rotating bars with pins and a stationary shroud, which introduce high shear force onto the materials during mixing to break soft lumps and agglomerates. In this case, a fill level of 140% of normal capacity is required.
Specifications Batch Weight Bd08
4032 kg
Specifications Chain Drive Power
55 kW
Specifications Dual Drive Power Per Drive
30 kW
Specifications Maximum Volume
5040 L
Specifications Nominal Volume
2160 L
Specifications Number Of Drives
2
Specifications Paddle Shaft Speed
30 rpm
Specifications Total Volume
9000 L
