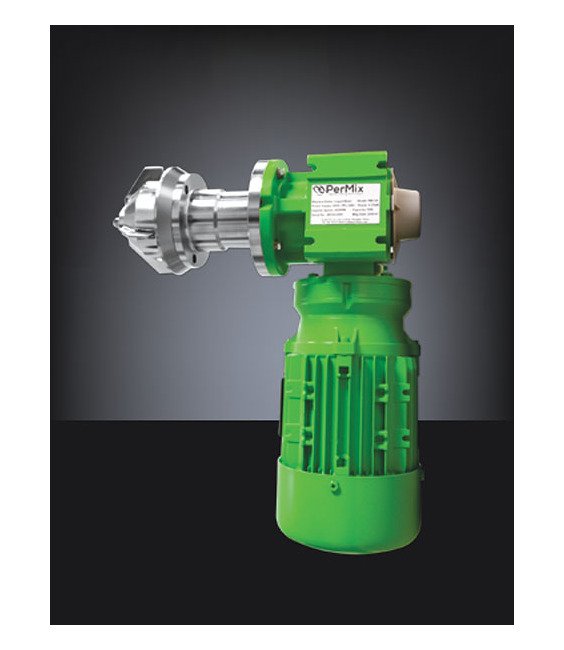

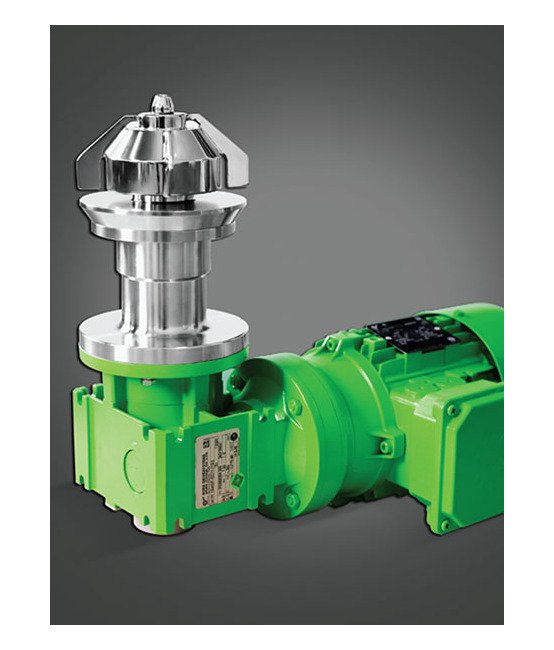

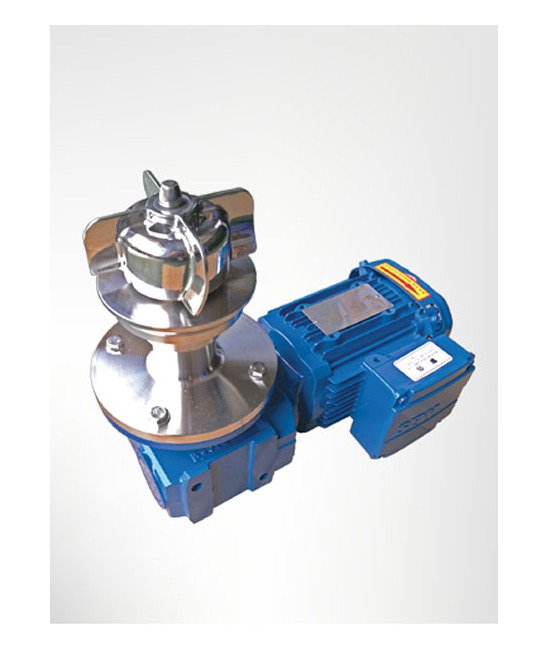

The PerMix PM 1000L Maximum Capacity Magnetic Mixer is a innovative solution for industrial mixing needs. Utilizing special magnetic driving technology, this mixer offers efficient torque transmission with minimal mechanical wear, ensuring a longer duty life. Featuring a total volume of 1000 L, power of 0.75 kW, and a speed of 375 rpm, this mixer is designed for high blending capacity with low power consumption. Its hygienic design allows for easy cleaning and sterilization, while the variety of impeller types caters to different applications. Perfect for biotechnology, fermentation, and other specialized industries, the PerMix PM 1000L Magnetic Mixer stands out for its reliability and performance.
Product Specifications
Additional Information Additional Information
Biotechnology and fermentation are the most advanced fields of application in process technology. For quite a long time magnetic stirrers take over a leading role in high-tech agitation. There are also demands from other industries for magnetic mixers.
Advantages And Options Advantages And Options

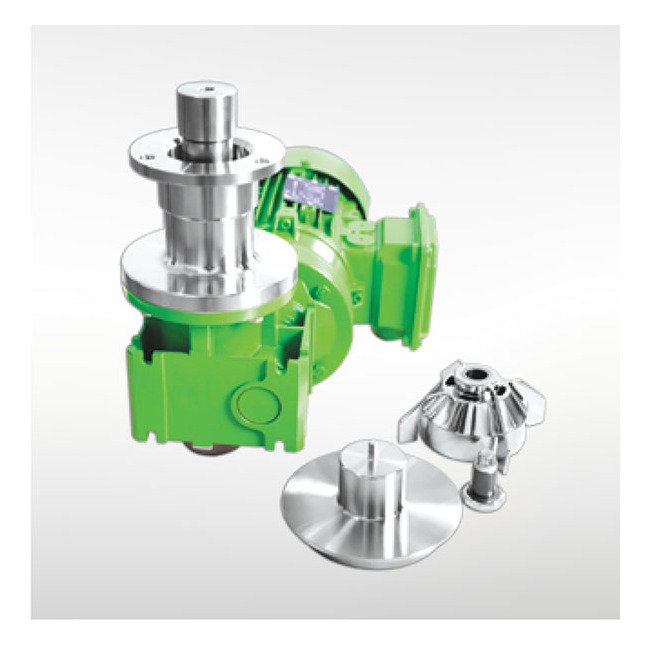

The features & options of PerMix Magnetic Mixers are:High blending capacity with low power consumptionHighly hygienic design, easy cleaning and sterilization in the vessel by steam or hot waterBayonet / Tri-clamp connection for easy assembly/disassembly of the drive unit (Option)No sealing demand and no danger of leakage and contamination between batchesLow shearing for shear-sensitive materialsNo wear of the mechanical parts leading to long duty life and minimum maintenanceEx-proof version for flammable fluid processingA variety of impeller types available for different applications
Installation Installation

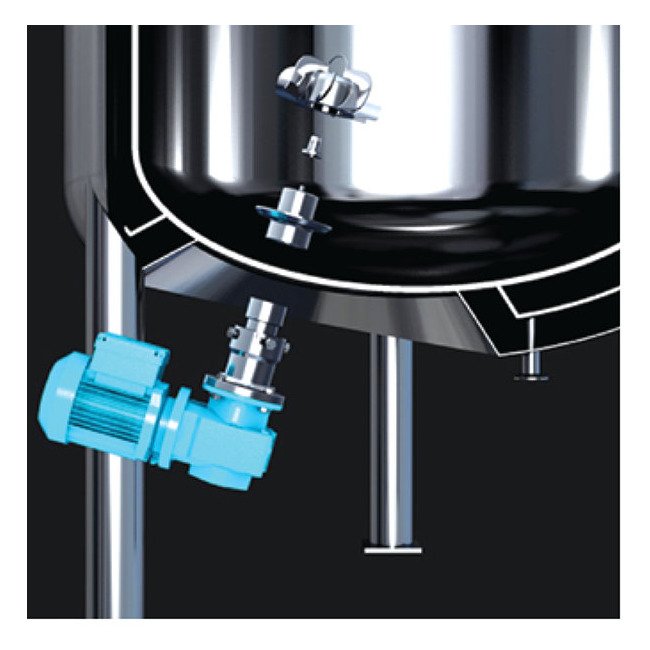

The PM series Magnetic Mixer is designed to be bottom mounted to the mixing vessel. A weld plate is firstly welded to the vessel bottom, and then the impeller is mounted from the top, while the drive is mounted from the bottom onto the weld plate by bolts or clamping.
Note Note
Specific working volumes can be offered according to customer's requirement.Speed can be adjusted according to customer's request.All specifications are as accurate as is reasonably possible, but they are not binding.PerMix reserves the right to modify the design without notice.
Specifications Impeller Diameter
200 mm
Specifications Power
0.75 kW
Specifications Speed Of Mixing Can
375 rpm
Specifications Total Volume
1000 L
