PerMix PM 3000L Magnetic Mixer
PerMix PM 3000L Magnetic Mixer
SKU:PMM-a2f480
PerMix PM 3000L Magnetic Mixer - Cutting-edge technology for efficient industrial mixing.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
PerMix PM 3000L Magnetic Mixer
$4,999.99
Quantity: 1
Claim Your Seller Account
PerMix PM 3000L Magnetic Mixer
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PerMix PM 3000L Magnetic Mixer is a cutting-edge solution designed for industrial mixing applications. Utilizing advanced magnetic driving technology, this mixer ensures efficient blending without direct contact between the impeller and drive, promoting longevity and minimizing maintenance. With a total volume of 3000 L, a power of 1.5 kW, and a mixing speed of 375 rpm, this unit offers high blending capacity with low power consumption. Its hygienic design enables easy cleaning and sterilization, while the available impeller options cater to diverse mixing requirements. Ideal for industries like biotechnology and fermentation, this magnetic mixer sets a new standard in process technology.
Product Specifications
Additional Information Additional Information
Biotechnology and fermentation are the most advanced fields of application in process technology. For quite a long time magnetic stirrers take over a leading role in high-tech agitation. There are also demands from other industries for magnetic mixers.
Advantages And Options Advantages And Options
The features & options of PerMix Magnetic Mixers are:High blending capacity with low power consumptionHighly hygienic design, easy cleaning and sterilization in the vessel by steam or hot waterBayonet / Tri-clamp connection for easy assembly/disassembly of the drive unit (Option)No sealing demand and no danger of leakage and contamination between batchesLow shearing for shear-sensitive materialsNo wear of the mechanical parts leading to long duty life and minimum maintenanceEx-proof version for flammable fluid processingA variety of impeller types available for different applications
Installation Installation

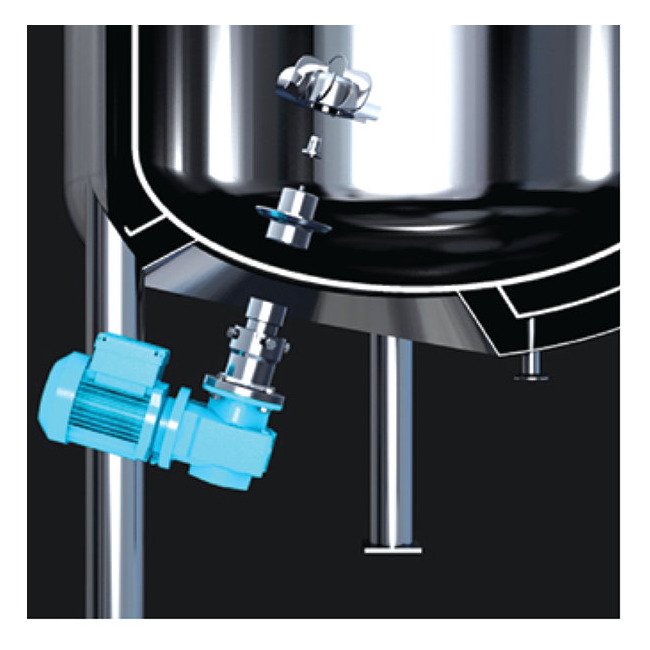

The PM series Magnetic Mixer is designed to be bottom mounted to the mixing vessel. A weld plate is firstly welded to the vessel bottom, and then the impeller is mounted from the top, while the drive is mounted from the bottom onto the weld plate by bolts or clamping.
Note Note
Specific working volumes can be offered according to customer's requirement.Speed can be adjusted according to customer's request.All specifications are as accurate as is reasonably possible, but they are not binding.PerMix reserves the right to modify the design without notice.
Specifications Impeller Diameter
220 mm
Specifications Power
1.5 kW
Specifications Speed Of Mixing Can
375 rpm
Specifications Total Volume
3000 L
