PerMix PM 500L Magnetic Mixer
PerMix PM 500L Magnetic Mixer
SKU:PMM-366478
Experience unmatched precision and efficiency with the PerMix PM 500L Magnetic Mixer. Ideal for biotech and fermentation industries.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
PerMix PM 500L Magnetic Mixer
$5,999.99
Quantity: 1
Claim Your Seller Account
PerMix PM 500L Magnetic Mixer
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PerMix PM 500L Magnetic Mixer is a cutting-edge solution for precision blending in industries such as biotechnology and fermentation. Utilizing advanced magnetic driving technology, this mixer ensures high blending capacity with low power consumption, while offering a highly hygienic design for easy cleaning and sterilization. With no mechanical wear and minimal maintenance, this mixer guarantees a long duty life. Equipped with various impeller types, it meets the highest standards of performance and efficiency in demanding applications.
Product Specifications
Additional Information Additional Information
Biotechnology and fermentation are the most advanced fields of application in process technology. For quite a long time magnetic stirrers take over a leading role in high-tech agitation. There are also demands from other industries for magnetic mixers.
Advantages And Options Advantages And Options
The features & options of PerMix Magnetic Mixers are:High blending capacity with low power consumptionHighly hygienic design, easy cleaning and sterilization in the vessel by steam or hot waterBayonet / Tri-clamp connection for easy assembly/disassembly of the drive unit (Option)No sealing demand and no danger of leakage and contamination between batchesLow shearing for shear-sensitive materialsNo wear of the mechanical parts leading to long duty life and minimum maintenanceEx-proof version for flammable fluid processingA variety of impeller types available for different applications
Installation Installation

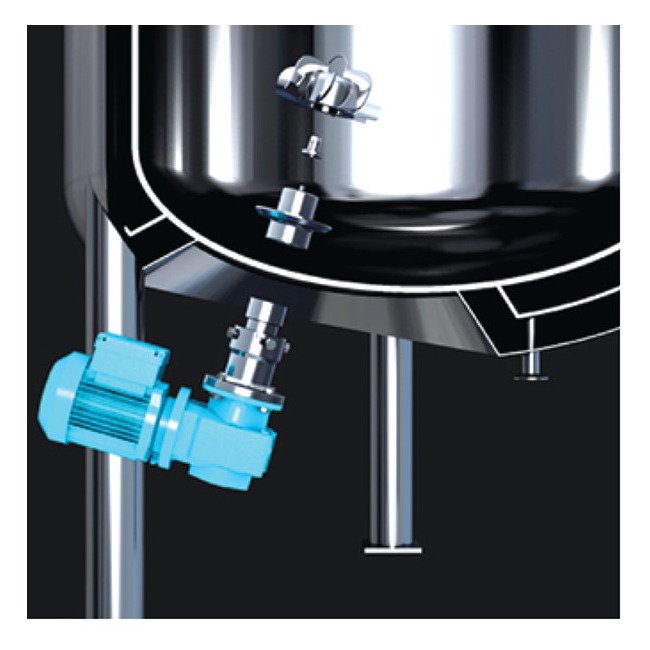

The PM series Magnetic Mixer is designed to be bottom mounted to the mixing vessel. A weld plate is firstly welded to the vessel bottom, and then the impeller is mounted from the top, while the drive is mounted from the bottom onto the weld plate by bolts or clamping.
Note Note
Specific working volumes can be offered according to customer's requirement.Speed can be adjusted according to customer's request.All specifications are as accurate as is reasonably possible, but they are not binding.PerMix reserves the right to modify the design without notice.
Specifications Impeller Diameter
155 mm
Specifications Power
0.55 kW
Specifications Speed Of Mixing Can
375 rpm
Specifications Total Volume
500 L
