PerMix PM 6000L Magnetic Mixer
PerMix PM 6000L Magnetic Mixer
SKU:PMM-c5caba
High-capacity PerMix PM 6000L Magnetic Mixer for efficient and hygienic blending needs in various industries.
Regular price
$6,999.00
Regular price
Sale price
$6,999.00
Unit price
per
Initiate Order
PerMix PM 6000L Magnetic Mixer
$6,999.00
Quantity: 1
Claim Your Seller Account
PerMix PM 6000L Magnetic Mixer
$6,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PerMix PM 6000L Maximum Capacity Magnetic Mixer is a top-of-the-line solution for industries requiring high blending capacity with low power consumption. With innovative magnetic driving technology, this mixer offers a hygienic design, easy cleaning, and sterilization capabilities. It boasts no sealing needs, ensuring no batch contamination, and features a variety of impeller types for diverse applications. Designed for bottom mounting with easy assembly/disassembly, this mixer is a durable, low-maintenance, and shear-sensitive material friendly equipment, ideal for biotechnology, fermentation, and other advanced industrial applications.
Product Specifications
Additional Information Additional Information
Biotechnology and fermentation are the most advanced fields of application in process technology. For quite a long time magnetic stirrers take over a leading role in high-tech agitation. There are also demands from other industries for magnetic mixers.
Advantages And Options Advantages And Options
The features & options of PerMix Magnetic Mixers are:High blending capacity with low power consumptionHighly hygienic design, easy cleaning and sterilization in the vessel by steam or hot waterBayonet / Tri-clamp connection for easy assembly/disassembly of the drive unit (Option)No sealing demand and no danger of leakage and contamination between batchesLow shearing for shear-sensitive materialsNo wear of the mechanical parts leading to long duty life and minimum maintenanceEx-proof version for flammable fluid processingA variety of impeller types available for different applications
Installation Installation

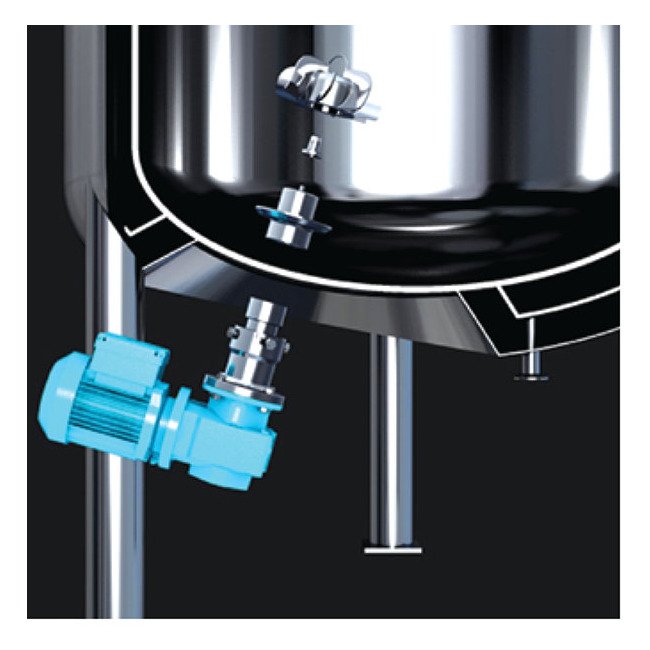

The PM series Magnetic Mixer is designed to be bottom mounted to the mixing vessel. A weld plate is firstly welded to the vessel bottom, and then the impeller is mounted from the top, while the drive is mounted from the bottom onto the weld plate by bolts or clamping.
Note Note
Specific working volumes can be offered according to customer's requirement.Speed can be adjusted according to customer's request.All specifications are as accurate as is reasonably possible, but they are not binding.PerMix reserves the right to modify the design without notice.
Specifications Impeller Diameter
260 mm
Specifications Power
4 kW
Specifications Speed Of Mixing Can
320 rpm
Specifications Total Volume
6000 L
