PerMix PNA 1000L Conical Screw Mixer
PerMix PNA 1000L Conical Screw Mixer
SKU:PNA-839164
PerMix PNA 1000L Conical Screw Mixer: Precise homogeneity, minimal heat generation, ideal for sensitive materials.
Regular price
$19,999.00
Regular price
Sale price
$19,999.00
Unit price
per
Initiate Order
PerMix PNA 1000L Conical Screw Mixer
$19,999.00
Quantity: 1
Claim Your Seller Account
PerMix PNA 1000L Conical Screw Mixer
$19,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

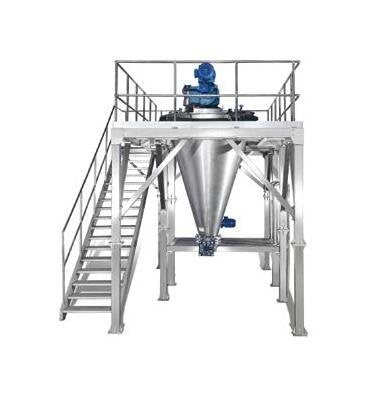

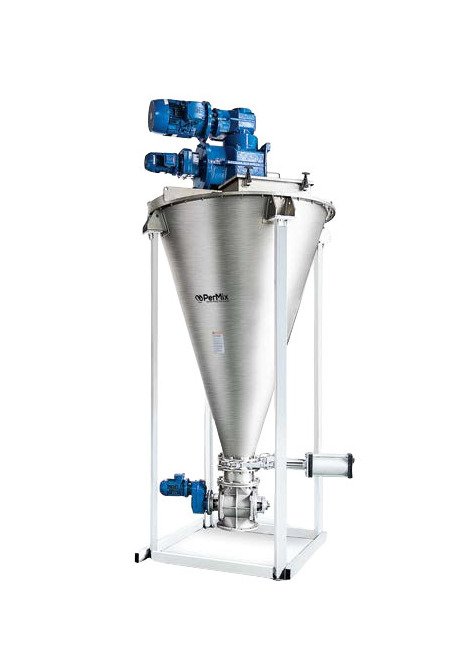

The PerMix PNA 1000L Conical Screw Mixer is a cutting-edge batch mixing equipment ideal for delicate, heat-sensitive products that require gentle mixing with minimal heat generation and precise homogeneity. Featuring a total volume of 1000 liters and a working volume of 600 liters, this mixer offers optimal performance with a power of 4 kW. With options such as various feeding & discharging methods, multiple screw types for different mixing intensities, and construction material options including SS316/316L and Hastelloy, this mixer provides versatility and efficiency for industries like food, pharmaceuticals, and chemicals. Its advanced design ensures complete discharge, easy cleaning, and gentle mixing, making it a top choice for institutional buyers seeking quality and compliance.
Product Specifications
Additional Information Additional Information
Due to the reason that PerMix Conical Screw Mixer uses the gravity to generate the significant downward mass flow, it saves energy compared with a horizontal mixer.These Conical Screw Mixers are also featured with no contamination to the product during the mixing, due to the fact that the shaft sealing & bearing is above the working area, thus no contact with the product.
Applications Applications
PerMix PNA Conical Screw Mixers are suitable for a wide variety of processing applications in industries of food, pharmaceuticals, chemical, plastics, pigments and coatings, metals & minerals:Gentle mixing of free-flowing powders, pastes and slurryCoating of solid mass, powdery productMoistening of powdersGranulating of fine powdersDrying of wet powders, pastes and slurry with vacuum and liquid recovery
Applications Other Applications
Bio | Health and Beauty | Nutraceutical
Features And Advantages Features And Advantages
Low minimum volume requiredComplete discharge of materialsEasy cleaning of the machineGentle mixing for fragile and friction sensitive materialsFree of cross contamination with shaft sealing above the product
How It Works How It Works

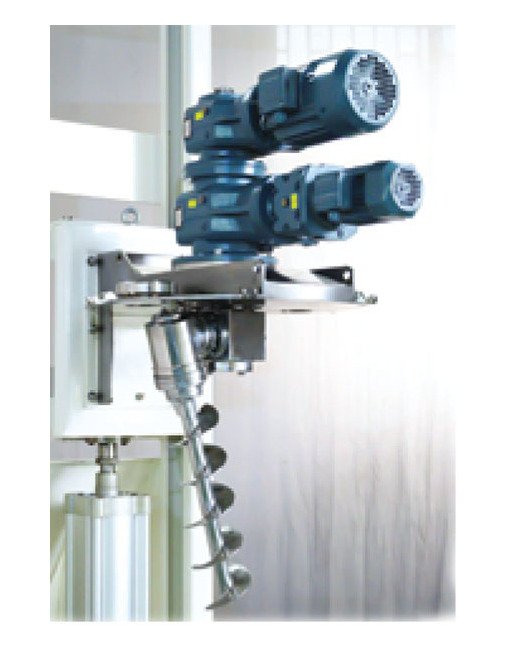

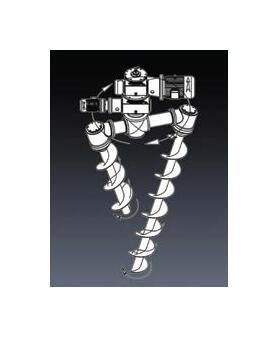

Inside of the PerMix Conical Screw Mixer, there is a cantilevered rotating screw (or two, three screws according to specified application) rotating by its own axle which is in parallel to/near the wall of the cone vessel.During the operation, the mixing screw lifts the product around it from bottom to the top, and then the powder falls down due to the gravity, causing a convective mixing. At the same time, the screw is supported by an orbital arm and is rotating around the center of the cone like a planetary, so that the powders in every corner of the cone can be mixed by the screw, and a 3-dimentional mixing performance occurs within the whole cone.
Note Note
Customized sizes available as per request.All specifications and illustrations are as accurate as is reasonably possible, but they are not binding.PerMix reserves the right to modify the design without notice.
Options Construction Material And Finish
We are able to offer our PNA Mixers with contact part to be built in Carbon steel, SS304, SS316/316L, Titanium, Duplex stainless steel, Hastelloy, etc. Finish of internal and external finish can be dull polished, 180 grit polished (food grade), or mirror polished. For abrasive materials we offer hardened steel as the contact part.
Options Drive System
Drive system by geared motor, cycloidal reducer, worm reducer, belt or chain transmission, etc.
Options Feeding And Discharging
A variety of feeding & discharging methods available.
Options Heatingcooling Jacket
Jacketed trough for heating/cooling operation.
Options Screw Type
We offer single screw, double screw and triple screw to give different mixing intensity.
Options Spray Nozzle
Liquid can be added into the powder by spray nozzles on the top.
Options Vacuum Drying And Deaerating

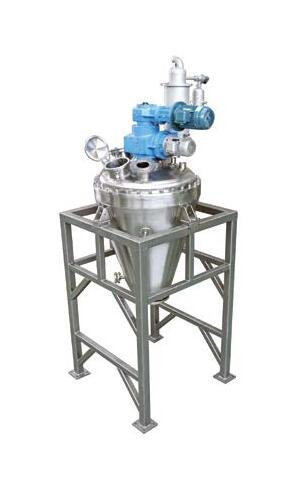

PNA Conical Screw Mixers can be designed to a vacuum mixer dryer for vacuum drying & deaerating or for inner pressure working for special applications.
Specifications Diameter
1600 mm
Specifications Inlet Size
300 mm
Specifications Number Of Screw
2
Specifications Outlet Size
300 mm
Specifications Power
4 kW
Specifications Power Tolerance
0.55 kW
Specifications Screw Speed
90 rpm
Specifications Total Height
2432 mm
Specifications Total Volume
1000 L
Specifications Weight
1200 kg
Specifications Working Volume
600 L
