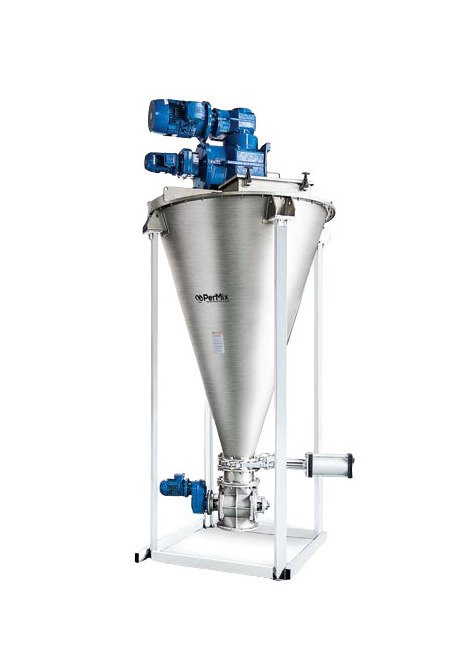

PerMix PNA 200L Conical Screw Mixer
PerMix PNA 200L Conical Screw Mixer
SKU:PNA-1efe2c
Achieve precise and gentle mixing with the PerMix PNA 200L Conical Screw Mixer designed for sensitive materials in pharmaceuticals, food, and more.
Regular price
$8,499.99
Regular price
Sale price
$8,499.99
Unit price
per
Initiate Order
PerMix PNA 200L Conical Screw Mixer
$8,499.99
Quantity: 1
Claim Your Seller Account
PerMix PNA 200L Conical Screw Mixer
$8,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PerMix PNA 200L Conical Screw Mixer offers a reliable batch mixing solution for delicate and heat-sensitive materials in industries such as food, pharmaceuticals, and chemicals. With a total volume of 200L and gentle mixing action, this mixer ensures minimal product distortion, precise homogeneity, and complete discharge. Featuring various options like multiple screw types, construction material choices, and specialized functions such as vacuum drying, it caters to diverse mixing requirements. Its energy-efficient design and contamination-free operation make it a versatile and efficient choice for processing various materials.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Due to the reason that PerMix Conical Screw Mixer uses the gravity to generate the significant downward mass flow, it saves energy compared with a horizontal mixer.These Conical Screw Mixers are also featured with no contamination to the product during the mixing, due to the fact that the shaft sealing & bearing is above the working area, thus no contact with the product.
Applications Applications
PerMix PNA Conical Screw Mixers are suitable for a wide variety of processing applications in industries of food, pharmaceuticals, chemical, plastics, pigments and coatings, metals & minerals:Gentle mixing of free-flowing powders, pastes and slurryCoating of solid mass, powdery productMoistening of powdersGranulating of fine powdersDrying of wet powders, pastes and slurry with vacuum and liquid recovery
Applications Other Applications
Bio | Health and Beauty | Nutraceutical
Features And Advantages Features And Advantages
Low minimum volume requiredComplete discharge of materialsEasy cleaning of the machineGentle mixing for fragile and friction sensitive materialsFree of cross contamination with shaft sealing above the product
How It Works How It Works

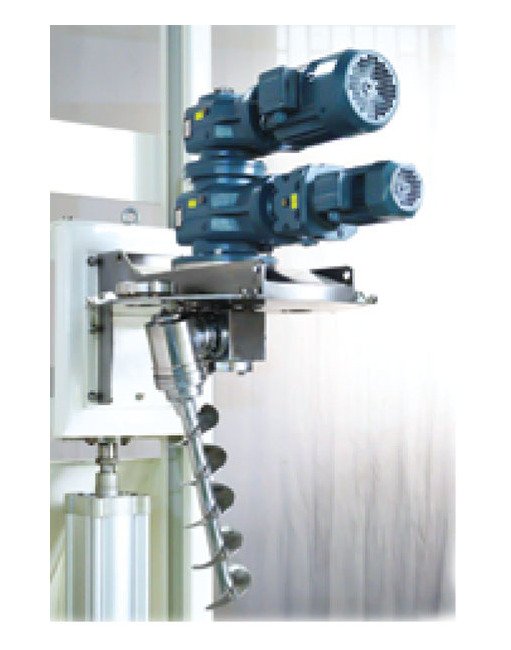

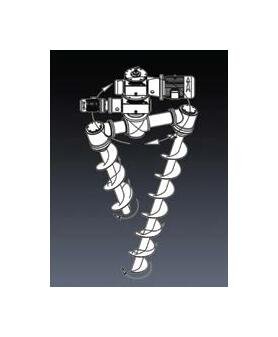

Inside of the PerMix Conical Screw Mixer, there is a cantilevered rotating screw (or two, three screws according to specified application) rotating by its own axle which is in parallel to/near the wall of the cone vessel.During the operation, the mixing screw lifts the product around it from bottom to the top, and then the powder falls down due to the gravity, causing a convective mixing. At the same time, the screw is supported by an orbital arm and is rotating around the center of the cone like a planetary, so that the powders in every corner of the cone can be mixed by the screw, and a 3-dimentional mixing performance occurs within the whole cone.
Note Note
Customized sizes available as per request.All specifications and illustrations are as accurate as is reasonably possible, but they are not binding.PerMix reserves the right to modify the design without notice.
Options Construction Material And Finish
We are able to offer our PNA Mixers with contact part to be built in Carbon steel, SS304, SS316/316L, Titanium, Duplex stainless steel, Hastelloy, etc. Finish of internal and external finish can be dull polished, 180 grit polished (food grade), or mirror polished. For abrasive materials we offer hardened steel as the contact part.
Options Drive System
Drive system by geared motor, cycloidal reducer, worm reducer, belt or chain transmission, etc.
Options Feeding And Discharging
A variety of feeding & discharging methods available.
Options Heatingcooling Jacket
Jacketed trough for heating/cooling operation.
Options Screw Type
We offer single screw, double screw and triple screw to give different mixing intensity.
Options Spray Nozzle
Liquid can be added into the powder by spray nozzles on the top.
Options Vacuum Drying And Deaerating

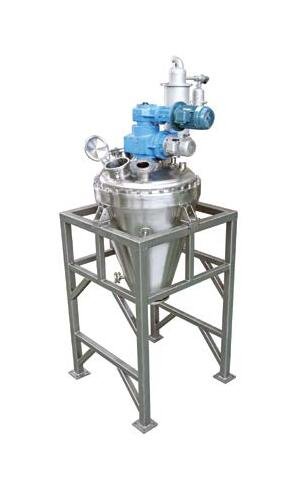

PNA Conical Screw Mixers can be designed to a vacuum mixer dryer for vacuum drying & deaerating or for inner pressure working for special applications.
Specifications Diameter
888 mm
Specifications Inlet Size
140 mm
Specifications Number Of Screw
2
Specifications Outlet Size
230 mm
Specifications Power
2.2 kW
Specifications Power Tolerance
0.37 kW
Specifications Screw Speed
117 rpm
Specifications Total Height
1557 mm
Specifications Total Volume
200 L
Specifications Weight
500 kg
Specifications Working Volume
120 L
