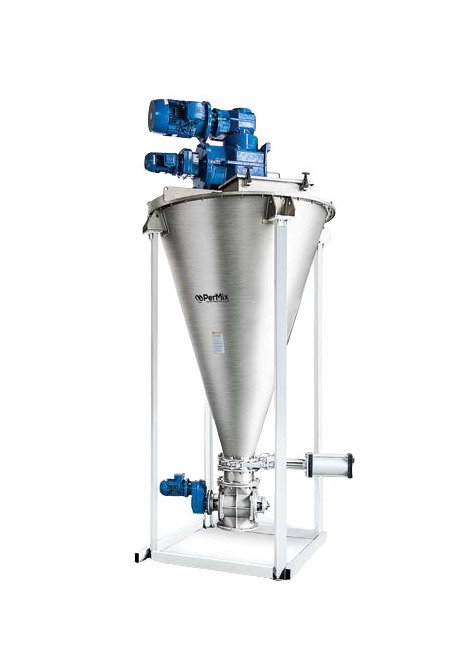

The PerMix PNA 8000 Liter Conical Screw Mixer is a versatile batch mixing equipment ideal for delicate, heat-sensitive, or segregating products. With a Total Volume of 8000 L and a Working Volume of 4800 L, this mixer offers gentle mixing with minimal heat generation and accurate homogeneity. It features dual screws, various feeding and discharging options, and construction material choices including SS304, SS316, and more. The mixer is designed for easy cleaning, complete material discharge, and gentle mixing for fragile materials, making it suitable for industries like food, pharmaceuticals, and chemicals.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Due to the reason that PerMix Conical Screw Mixer uses the gravity to generate the significant downward mass flow, it saves energy compared with a horizontal mixer.These Conical Screw Mixers are also featured with no contamination to the product during the mixing, due to the fact that the shaft sealing & bearing is above the working area, thus no contact with the product.
Applications Applications
PerMix PNA Conical Screw Mixers are suitable for a wide variety of processing applications in industries of food, pharmaceuticals, chemical, plastics, pigments and coatings, metals & minerals:Gentle mixing of free-flowing powders, pastes and slurryCoating of solid mass, powdery productMoistening of powdersGranulating of fine powdersDrying of wet powders, pastes and slurry with vacuum and liquid recovery
Applications Other Applications
Bio | Health and Beauty | Nutraceutical
Features And Advantages Features And Advantages
Low minimum volume requiredComplete discharge of materialsEasy cleaning of the machineGentle mixing for fragile and friction sensitive materialsFree of cross contamination with shaft sealing above the product
How It Works How It Works

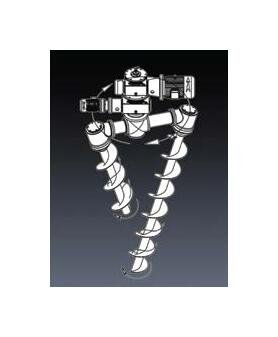

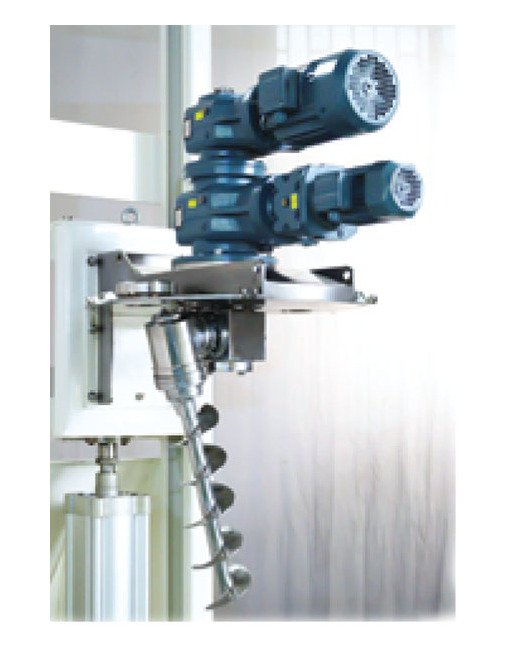

Inside of the PerMix Conical Screw Mixer, there is a cantilevered rotating screw (or two, three screws according to specified application) rotating by its own axle which is in parallel to/near the wall of the cone vessel.During the operation, the mixing screw lifts the product around it from bottom to the top, and then the powder falls down due to the gravity, causing a convective mixing. At the same time, the screw is supported by an orbital arm and is rotating around the center of the cone like a planetary, so that the powders in every corner of the cone can be mixed by the screw, and a 3-dimentional mixing performance occurs within the whole cone.
Note Note
Customized sizes available as per request.All specifications and illustrations are as accurate as is reasonably possible, but they are not binding.PerMix reserves the right to modify the design without notice.
Options Construction Material And Finish
We are able to offer our PNA Mixers with contact part to be built in Carbon steel, SS304, SS316/316L, Titanium, Duplex stainless steel, Hastelloy, etc. Finish of internal and external finish can be dull polished, 180 grit polished (food grade), or mirror polished. For abrasive materials we offer hardened steel as the contact part.
Options Drive System
Drive system by geared motor, cycloidal reducer, worm reducer, belt or chain transmission, etc.
Options Feeding And Discharging
A variety of feeding & discharging methods available.
Options Heatingcooling Jacket
Jacketed trough for heating/cooling operation.
Options Screw Type
We offer single screw, double screw and triple screw to give different mixing intensity.
Options Spray Nozzle
Liquid can be added into the powder by spray nozzles on the top.
Options Vacuum Drying And Deaerating
PNA Conical Screw Mixers can be designed to a vacuum mixer dryer for vacuum drying & deaerating or for inner pressure working for special applications.
Specifications Diameter
2792 mm
Specifications Inlet Size
400 mm
Specifications Number Of Screw
2
Specifications Outlet Size
450 mm
Specifications Power
18.5 kW
Specifications Power Tolerance
2.2 kW
Specifications Screw Speed
57 rpm
Specifications Total Height
5000 mm
Specifications Total Volume
8000 L
Specifications Weight
3800 kg
Specifications Working Volume
4800 L
