PerMix POG 20-30kg/h Oscillating Grinder
PerMix POG 20-30kg/h Oscillating Grinder
SKU:POG-d507c7
Granulate wet/dry powder efficiently with the PerMix 20-30kg/h Oscillating Grinder. Ideal for food & pharma industries.
Regular price
$2,399.99
Regular price
Sale price
$2,399.99
Unit price
per
Initiate Order
PerMix POG 20-30kg/h Oscillating Grinder
$2,399.99
Quantity: 1
Claim Your Seller Account
PerMix POG 20-30kg/h Oscillating Grinder
$2,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

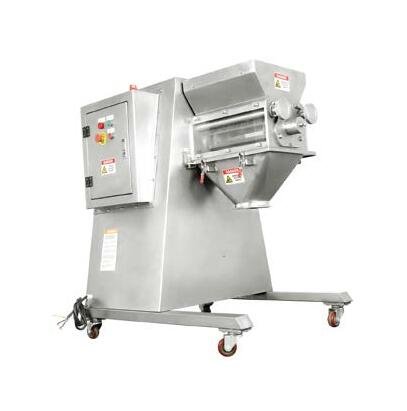

The PerMix POG 20-30kg/h Oscillating Grinder is a versatile machine designed for wet and dry powder processing. It granulates materials into fine, uniform granules with adjustable particle sizes. Its compact design, absence of bearing/sealing parts in contact areas, and easy-clean features make it ideal for food and pharmaceutical industries. With a motor power of 0.55 kW and a rotating cylinder speed of 46 rpm, it offers efficient granulation within a sturdy stainless steel structure.
Product Specifications
Applications Applications
Bio | Chemical | Food | Health and Beauty | Nutraceutical | Pharmaceutical
How It Works How It Works

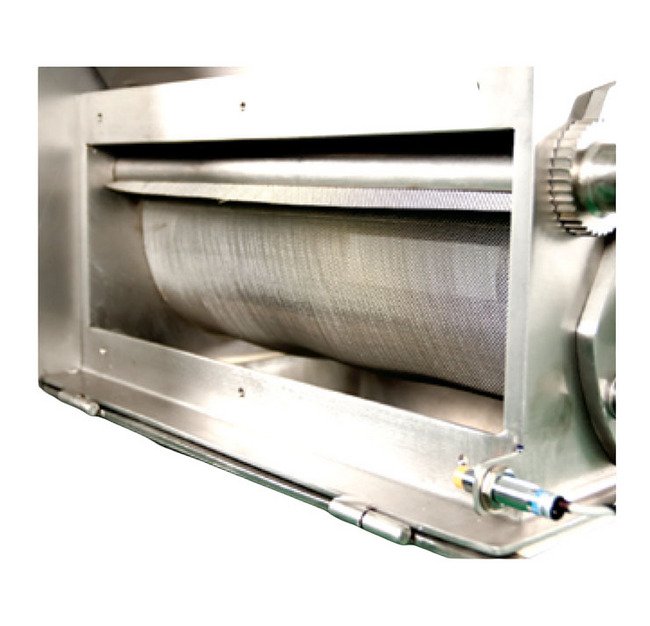

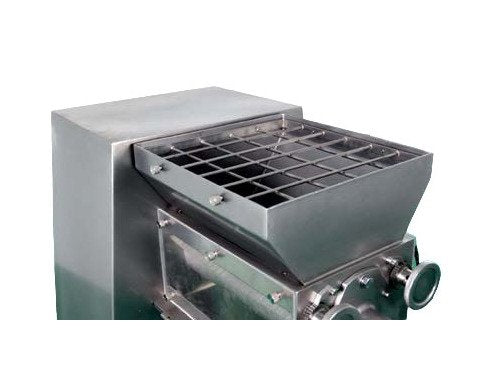

The grinder comes with a rotating part (cylinder) that is made by 6 pieces of bars with triangle profile, the lower half of which is wrapped by a stainless steel wire screening mesh (or a perforated metal plate mesh).Products are fed into the grinder from the top, going into the gap between the bar edges and the mesh, and then the rotating part is driven to rotate in an oscillating way, from left to right and then from right to left, pushing the products through the holes of the mesh and thus granulating them.The gap between the bar edges and the mesh can be adjusted by stretching the mesh by two handles with stoppers. Products are collected by the bottom hopper and discharged from its outlet. Two transparent access doors are mounted for easy inspection and cleaning of the working chamber.A special gearbox is applied to provide the function of driving the main shaft rotate in the oscillating way. This gearbox is driven by a motor with belt transmission. The gearbox and the motor are located in a stainless steel housing. The grinder comes with 4 caster wheels for easy moving.
Note Note
Capacity is product dependent.All specifications and illustrations are as accurate as is reasonably possible, but they are not binding.PerMix reserves the right to modify the design without notice.
Specifications Capacity
20 to 30 kg/h
Specifications Diameter Of Rotating Cylinder
60 mm
Specifications Dimension
450 x 450 x 550 mm
Specifications Motor Power
0.55 kW
Specifications Speed Of Rotating Cylinder
46 rpm
Specifications Weight
70 kg
