PerMix POG Oscillating Grinder - 30-200 kg/h Capacity
PerMix POG Oscillating Grinder - 30-200 kg/h Capacity
SKU:POG-35eadc
Efficiently granulate wet and dry materials with PerMix Oscillating Grinder - perfect for food and pharma industries.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
PerMix POG Oscillating Grinder - 30-200 kg/h Capacity
$8,999.99
Quantity: 1
Claim Your Seller Account
PerMix POG Oscillating Grinder - 30-200 kg/h Capacity
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

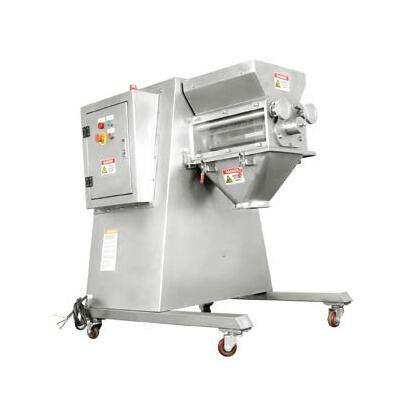

The PerMix POG Oscillating Grinder efficiently processes wet and dry materials into uniform granules, suitable for industries like food and pharma. With a compact design, stainless steel construction, and adjustable mesh settings, it offers precise granulation capabilities. Operating at 55rpm with a 2.2 kW motor, this grinder ensures consistent performance and easy cleaning. Ideal for Bio, Chemical, Food, Health, Nutraceutical, and Pharmaceutical applications.
Product Specifications
Applications Applications
Bio | Chemical | Food | Health and Beauty | Nutraceutical | Pharmaceutical
How It Works How It Works

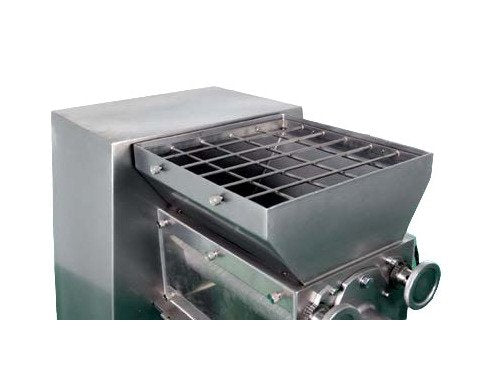

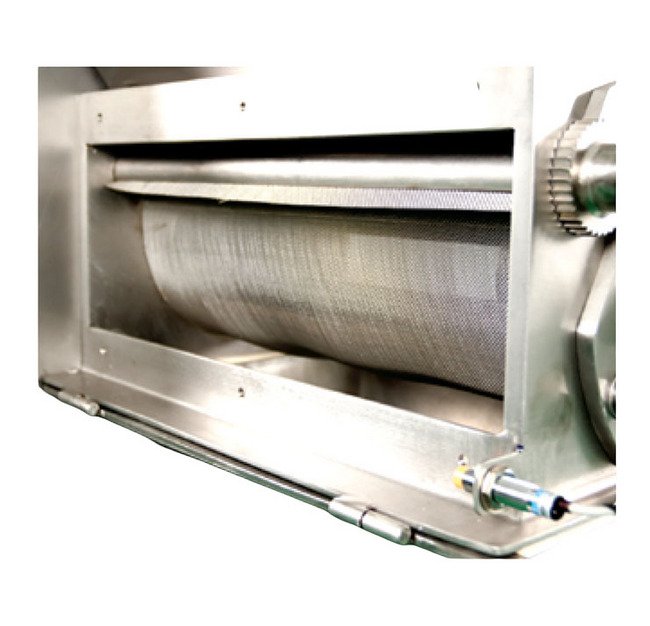

The grinder comes with a rotating part (cylinder) that is made by 6 pieces of bars with triangle profile, the lower half of which is wrapped by a stainless steel wire screening mesh (or a perforated metal plate mesh).Products are fed into the grinder from the top, going into the gap between the bar edges and the mesh, and then the rotating part is driven to rotate in an oscillating way, from left to right and then from right to left, pushing the products through the holes of the mesh and thus granulating them.The gap between the bar edges and the mesh can be adjusted by stretching the mesh by two handles with stoppers. Products are collected by the bottom hopper and discharged from its outlet. Two transparent access doors are mounted for easy inspection and cleaning of the working chamber.A special gearbox is applied to provide the function of driving the main shaft rotate in the oscillating way. This gearbox is driven by a motor with belt transmission. The gearbox and the motor are located in a stainless steel housing. The grinder comes with 4 caster wheels for easy moving.
Note Note
Capacity is product dependent.All specifications and illustrations are as accurate as is reasonably possible, but they are not binding.PerMix reserves the right to modify the design without notice.
Specifications Capacity
30 to 200 kg/h
Specifications Diameter Of Rotating Cylinder
100 mm
Specifications Dimension
700 x 400 x 1050 mm
Specifications Motor Power
2.2 kW
Specifications Speed Of Rotating Cylinder
55 rpm
Specifications Weight
180 kg
